Bulletin 1606 Switched Mode Power Supplies
19. Physical Dimensions and Weight
Weight 130g / 0.29lb
DIN Rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN rail height must be added to the unit depth (91mm) to calculate the total required
installation depth.
Installation Clearances See section 2

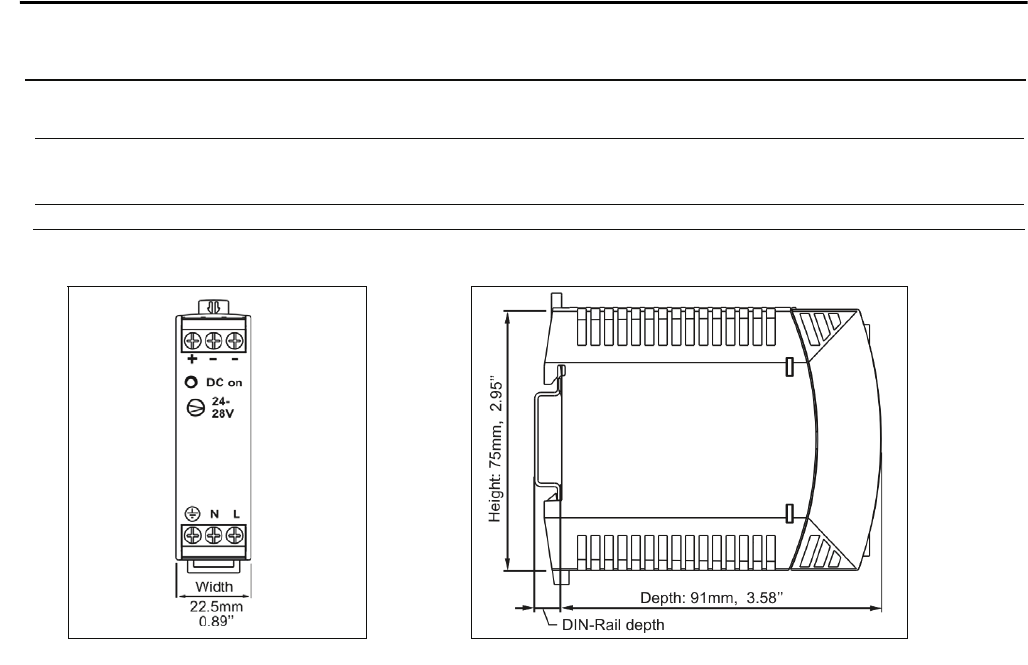

Fig. 20-1 Front view Fig. 20-2 Side view
