All parameters are specified at 24V, 2.5A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.
Rockwell Automation Publication 1606-RM033A-EN-P — March 2014 5
Bulletin 1606 Switched Mode Power Supplies
4. Power Losses
DC 24V
Power losses typ.
8.8W input: 2x5A
typ.
9.5W
input: 1x10A
typ.
18.0W
input: 2x10A
Standby power losses typ. 1.0W at no output current

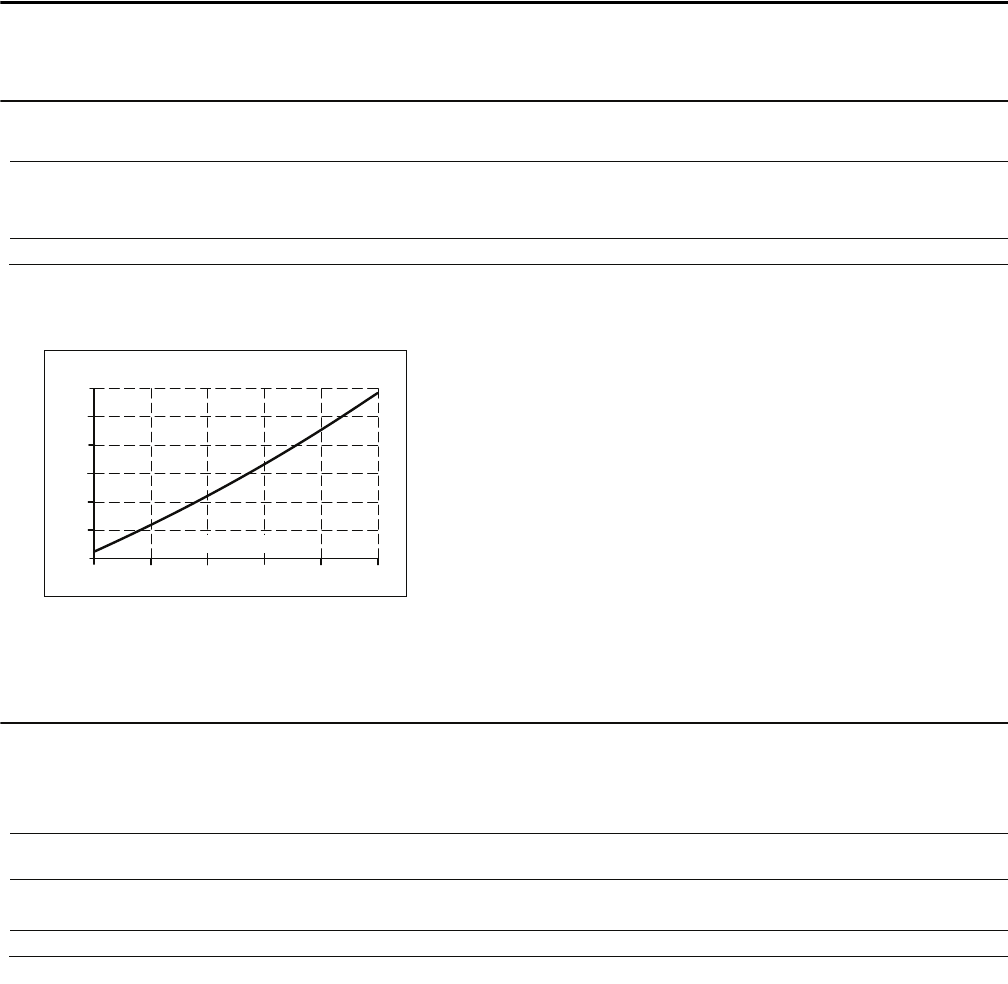

Fig. 4-1 Power losses
Power Losses, typ.
0
0 5 10 20
4
8
12
16
20
24W
25
A
15
Output Current
5. Alarm Contacts
Both input voltages are monitored individually. If one input voltage is too low or completely lost, it will be indicated
by an alarm relay contact.
Each input has its own monitoring circuitry and relay contact.
Alarm threshold nom.
21.5V (±0.5V) Relay contact opens immediately after
the input voltage falls below this value
Contact ratings min.
60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A
input: 1x10A
max.
1mA at 5Vdc
input: 2x10A
Isolation voltage see dielectric strength table in section 14.
