Owner manual

Publication RF-160ML – December 1997
2 Line Filter Module
➀
Residential, commercial, and light industry. Tested with a maximum motor cable length of 25m. Practical
results may differ.

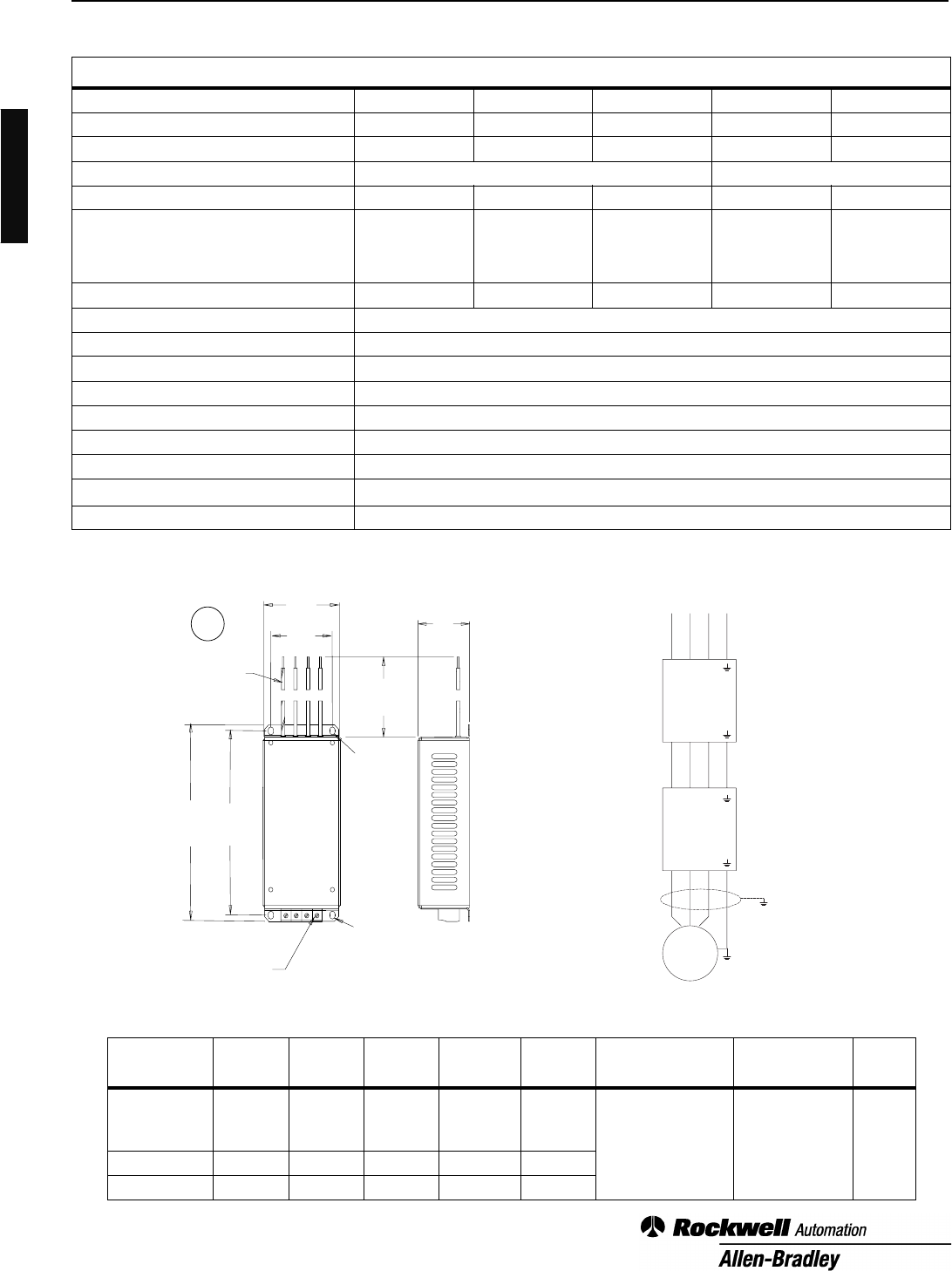

Bulletin 160 Line Filter Module Specification Table
Line Filter Module 160S-RFA-6-A 160S-RFA-10-A 160S-RFA-16-A 160-RFB-3-A 160-RFB-9-A
Input Voltage, Frequency 1~ / 200-240V 1~ / 200-240V 1~ / 200-240V 3~ / 200-460V 3~ / 200-460V
Rated Current 6.5A 10A 16.3A 3.5A 9.5A
Operational Range (V), (Hz) 180-265V, 43-62 Hz 180-506V, 48-62 Hz
Power Dissipation (W) 4 W 6.4 W 10 W 3 W 8 W
Leakage Current (Worst Case mA)
Running, Supply Voltage Tol. 3% 3.27 mA 3.27 mA 3.27 mA 1.52 mA 2.06 mA
Acc. EN60950 Fault Method 3.27 mA 3.27 mA 3.27 mA 19.6 mA 28.3 mA
Weight (kg) 0.46 kg 0.46 kg 0.46 kg 0.55 kg 0.77 kg
Enclosure IP 20
Operating Temperature 0°C to 50°C
Storage Temperature -25°C to 85°C
Relative Humidity 0 to 95% (Non-Condensed)
Vibration 1.0 G Operational – 2.5 G Non-Operational
Shock 15 G Operational – 30 G Non-Operational
Altitude 1,000 m (3,200 ft.) without derating, consult factory for derating information
EMC Standards
EN 50081-1 AC Mains (Limits equivalent to EN 55011 Class B, Group 1)
➀
International Standards and Approvals CE Low Voltage Directive
mm
(in.)
B
GROUND WIRE
GROUND SCREW
E
C
A
D
G
F
H
L1 L2
L3
L1’ L2’ L3’
R
L1
S
L2
T
L3
160S–RFA__
160–RFB__
160 SSC
T1
U
T2
V
T3
W
M
LINE, AC MAINS
SHIELDED CABLE
OR
CONDUIT
Outline Drawing
Connection Diagram
Line Filter
Module
ABC D E F G H
160S-RFA-6-A
160S-RFA-10-A
160S-RFA-16-A
182 (7.17) 75.0 (2.95) 30.0 (1.18) 167.0 (6.57) 60.0 (2.36)
6.5 x 4.5 (0.26 x 0.18)
obround hole
(2 places)
4.2 (0.17)
dia. Hole
(2 places)
200
(7.87)
160-RFB-3-A 182 (7.17) 75.0 (2.95) 35.0 (1.38) 167.0 (6.57) 60.0 (2.36)
160-RFB-9-A 182 (7.17) 75.0 (2.95) 47.5 (1.87) 167.0 (6.57) 60.0 (2.36)
