Rockwell Automation Publication ENMON-IN440I-EN-P - February 2014 7
XM-440 Master Relay Module

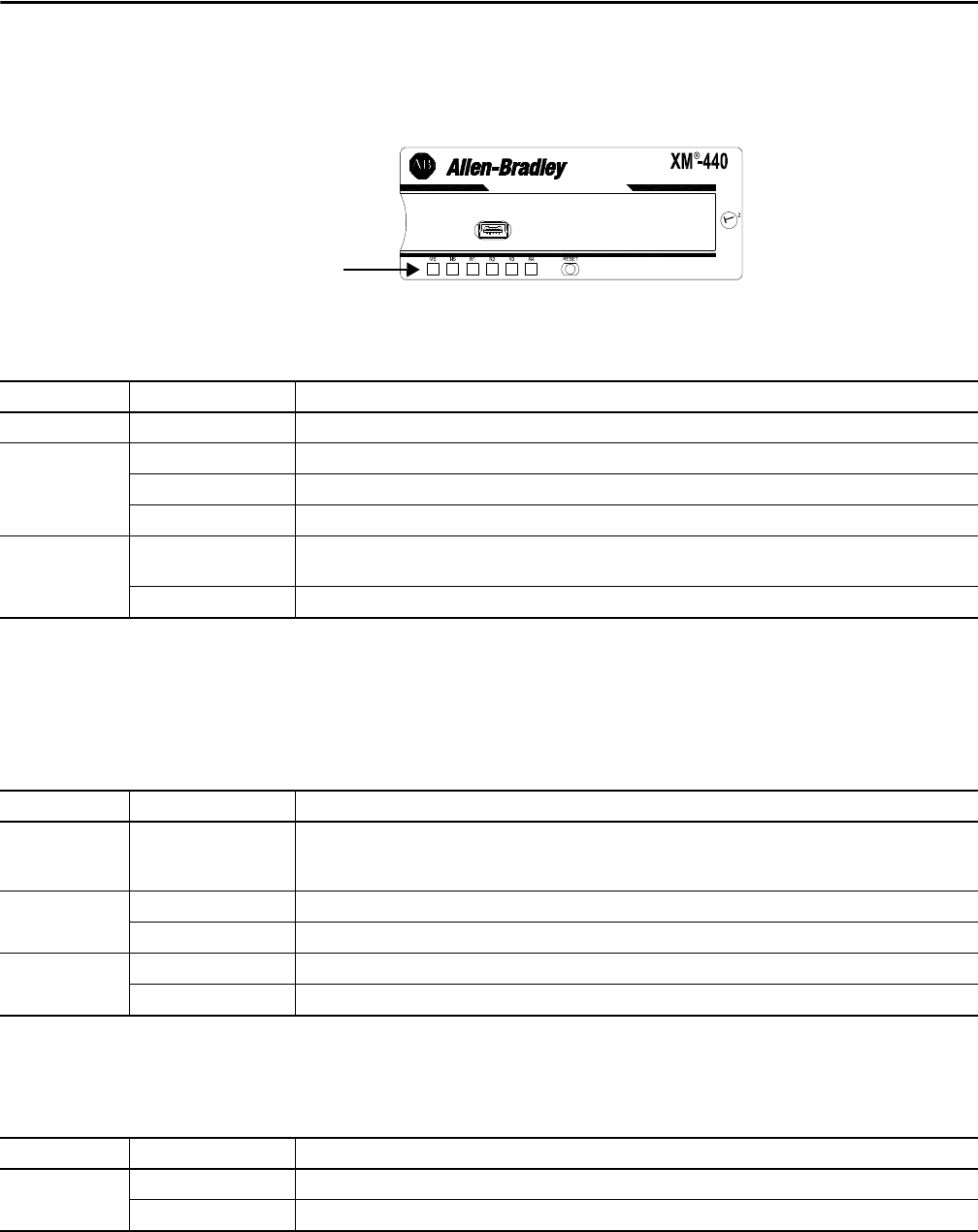

Module Indicators
The XM-440 module has six status indicators, which are on top of the module.
Module Status (MS) Indicator
Network Status (NS) Indicator
Relay Indicators (four)
Color State Description
No color Off No power applied to the module.
Green Flashing red Module performing power-up self-test.
Flashing Module operating in Program mode.
(1)
(1) Program mode - Typically this occurs when the module configuration settings are being updated with the Serial Configuration Utility. In Program mode, the module does not perform its normal functions.
The alarm monitoring is stopped and the relay outputs are deactivated unless they are latched.
Solid Module operating in Run mode.
(2)
(2) Run mode - In Run mode, the module collects alarm status from the XM measurement modules and controls the relay outputs.
Red Flashing • Application firmware is invalid or not loaded. Download firmware to the module.
• Firmware download is currently in progress.
Solid An unrecoverable fault has occurred. It is possible that the module must be repaired or replaced.
Color State Description
No color Off Module is not online:
• Module is autobauding.
• No power applied to the module; look at Module Status indicator.
Green Flashing Module is online (DeviceNet network) but no connections are currently established.
(1)
(1) Normal condition when the module is not a slave to an XM-440 module, programmable controller, or other master device.
Solid Module is online with connections currently established.
Red Flashing One or more I/O connections are in the timed-out-state.
Solid Failed communication (duplicate MAC ID or bus-off).
Color State Description
Red Off On-board relay in not activated.
Solid On-board relay is activated.
MASTER RELAY
1440-RMA00-04RC
Module Indicators
