Instruction Leaflet for Thermal Magnetic Trip Units User Manual

40752-032 (1)

Effective 2/02

K-Frame Circuit Breakers

Instruction Leaflet for Thermal Magnetic Trip Units

Warning

DO NOT ATTEMPT TO INSTALL

OR PERFORM MAINTENANCE

ON EQUIPMENT WHILE IT IS

ENERGIZED. DEATH OR

SEVERE PERSONAL INJURY

CAN RESULT FROM CONTACT

WITH ENERGIZED EQUIPMENT.

ALWAYS VERIFY THAT NO

VOLTAGE IS PRESENT BEFORE

PROCEEDING.

PAGE 1

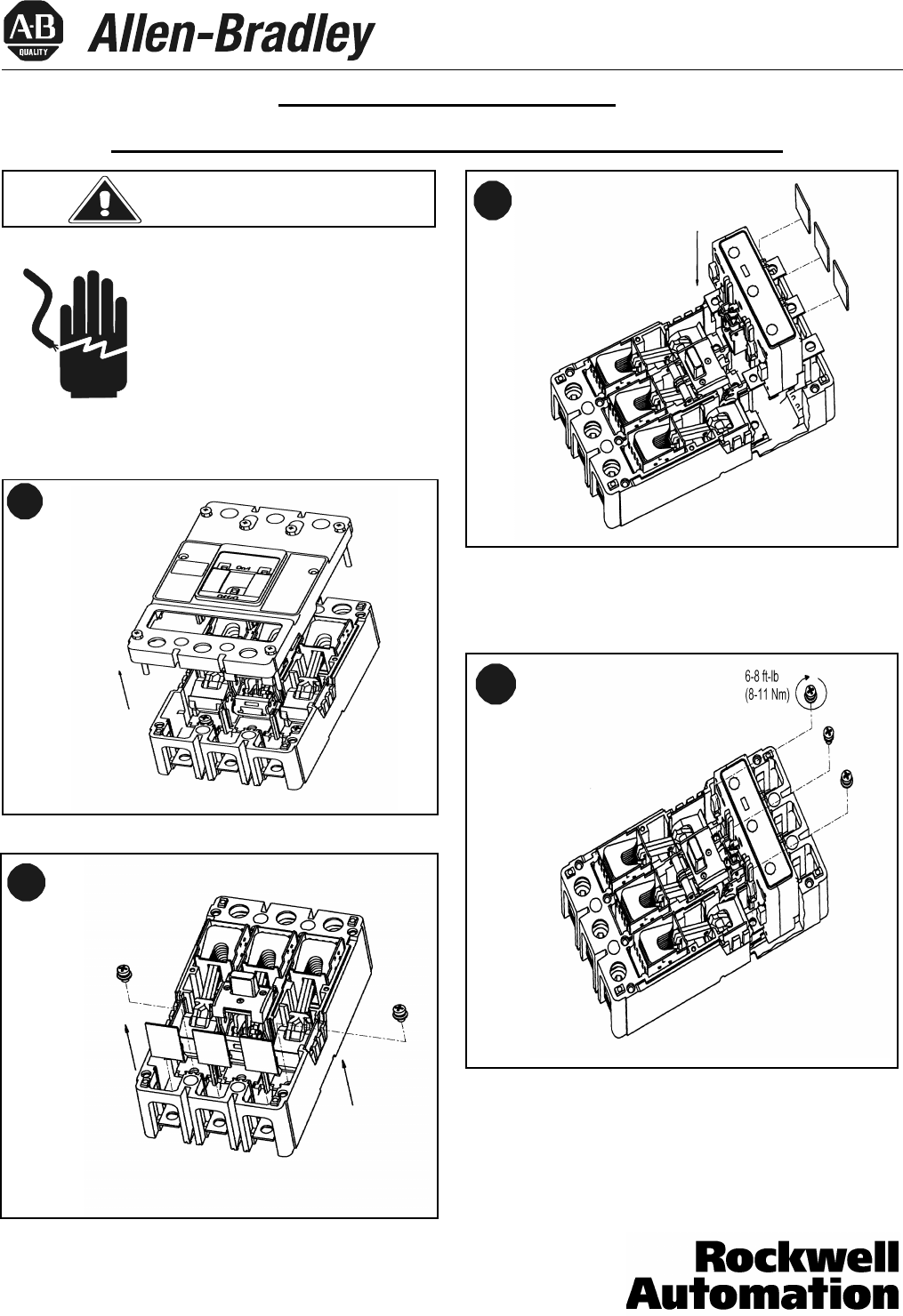

K-Frame Circuit Breakers Instruction Leaflet for Thermal Magnetic Trip Units Warning 3 DO NOT ATTEMPT TO INSTALL OR PERFORM MAINTENANCE ON EQUIPMENT WHILE IT IS ENERGIZED. DEATH OR SEVERE PERSONAL INJURY CAN RESULT FROM CONTACT WITH ENERGIZED EQUIPMENT. ALWAYS VERIFY THAT NO VOLTAGE IS PRESENT BEFORE PROCEEDING.
PAGE 2
5 Notes: 1. Thermal adjust knob and neutral pole adjust knob are set with trip unit in tripped position. 2. Thermal adjust knob setting must not be changed until 30 minutes after overload interruption.
