5-16 Using the L Option
Requirements for the 115V AC
Interface Board (L9E)

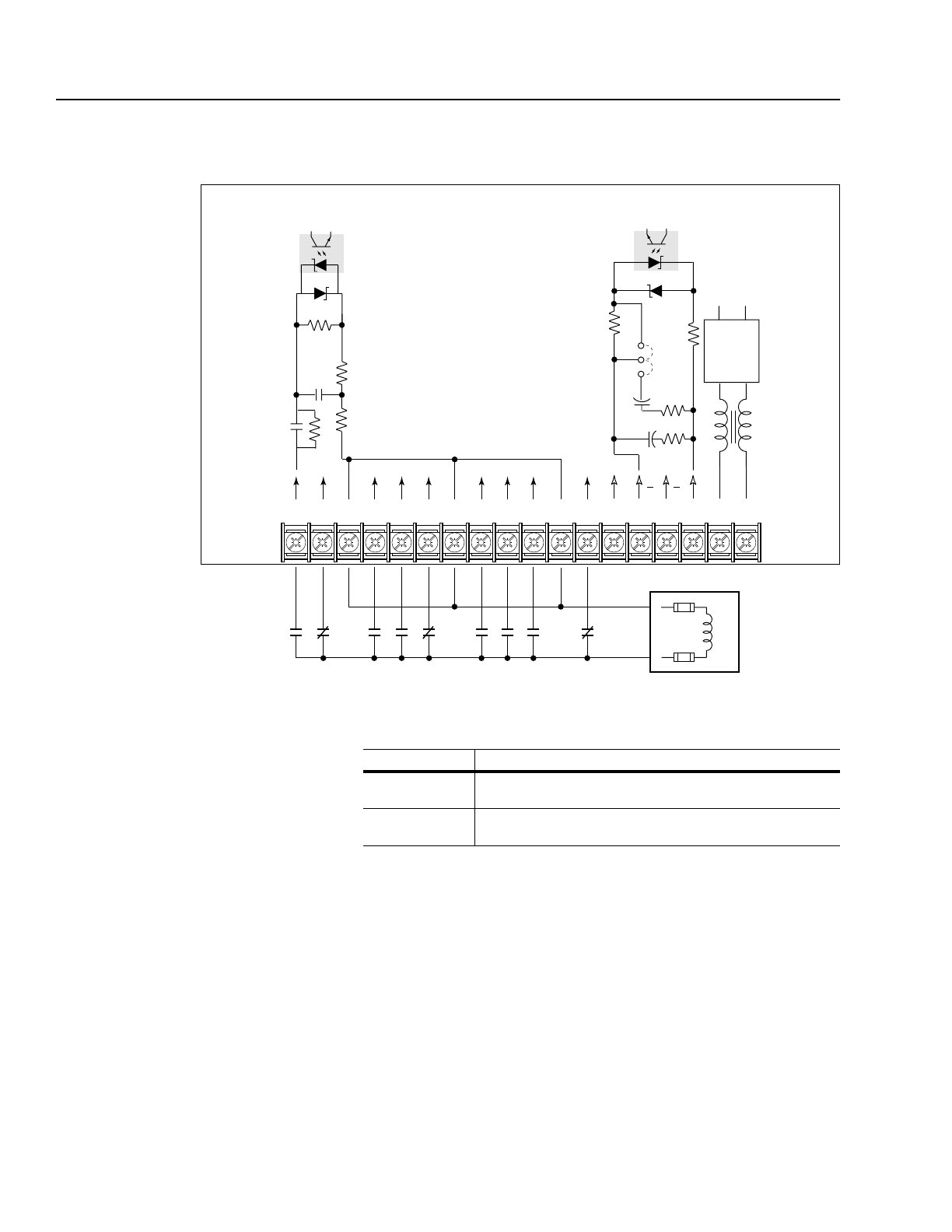

Figure 5.9 shows the wiring diagram for the L9E Option board.
Figure 5.9
L9E Option Board Wiring Diagram
Circuits used with L9E Option board must be able to operate with
high = true logic.
115V AC
Fuse
Common
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
User Supplied
115V AC
Fuse
TB3
ENC
RET
ENC
12V
Typical
12V
681
173
576
5V
J1/J2
Current
Limit
Feedback
0.5A
0.001
Typical
1.87k
280
140
1.0
133
1 Meg
BBA A
2200pf
255
In this state: Circuits must generate a voltage of:
low
No more than 30V AC. Leakage current must be less than 10 mA
into a 6.5K ohm load.
high
90 – 115V AC ±10% and source a current of approximately 20
mA for each input.
