User Manual V 1-4.XX User guide

Using the L Option 5-13
Requirements for the 115V AC
Interface Board (L6)

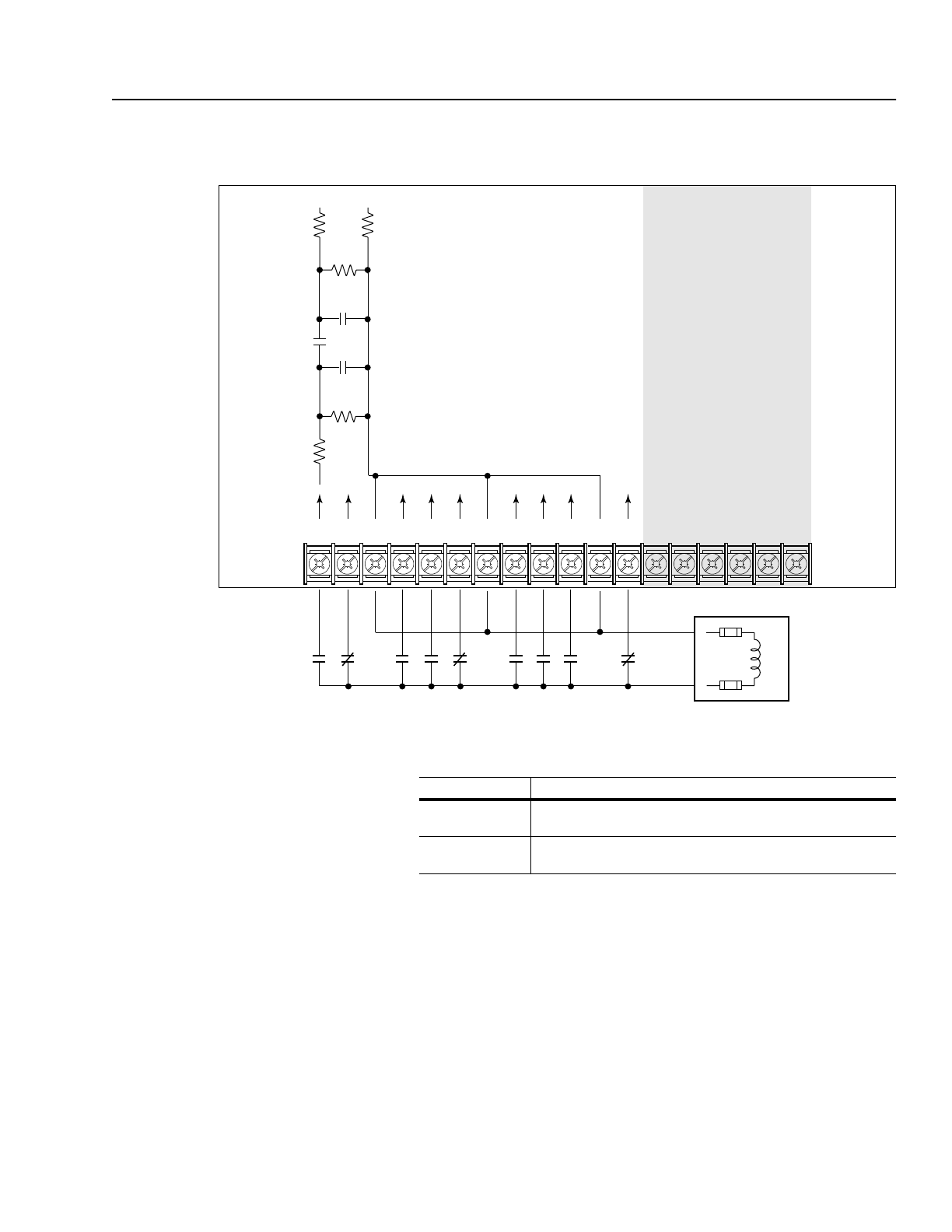

Figure 5.6 shows the wiring diagram for the L6 Option board.
Figure 5.6
L6 Option Board Wiring Diagram
Circuits used with the L6 Option board must be able to operate with
high = true logic.
Important: The series B 115V AC Interface Board (L6) is equivalent
to the 115V AC Interface Board (L9E). Refer to page 5-16 for a
description.
Typical
115V AC
Fuse
Common
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
0.15 µ f
0.33
µ f
0.22
µ f
49
499k
20k
100 100
User Supplied
115V AC
Fuse
TB3
Not Used
In this state: Circuits must generate a voltage of:
low
No more than 30V AC. Leakage current must be less than 10 mA
into a 6.5K ohm load.
high
90 – 115V AC ±10% and source a current of approximately 20
mA for each input.
