User Manual V 1-4.XX User guide

Using the L Option 5-9

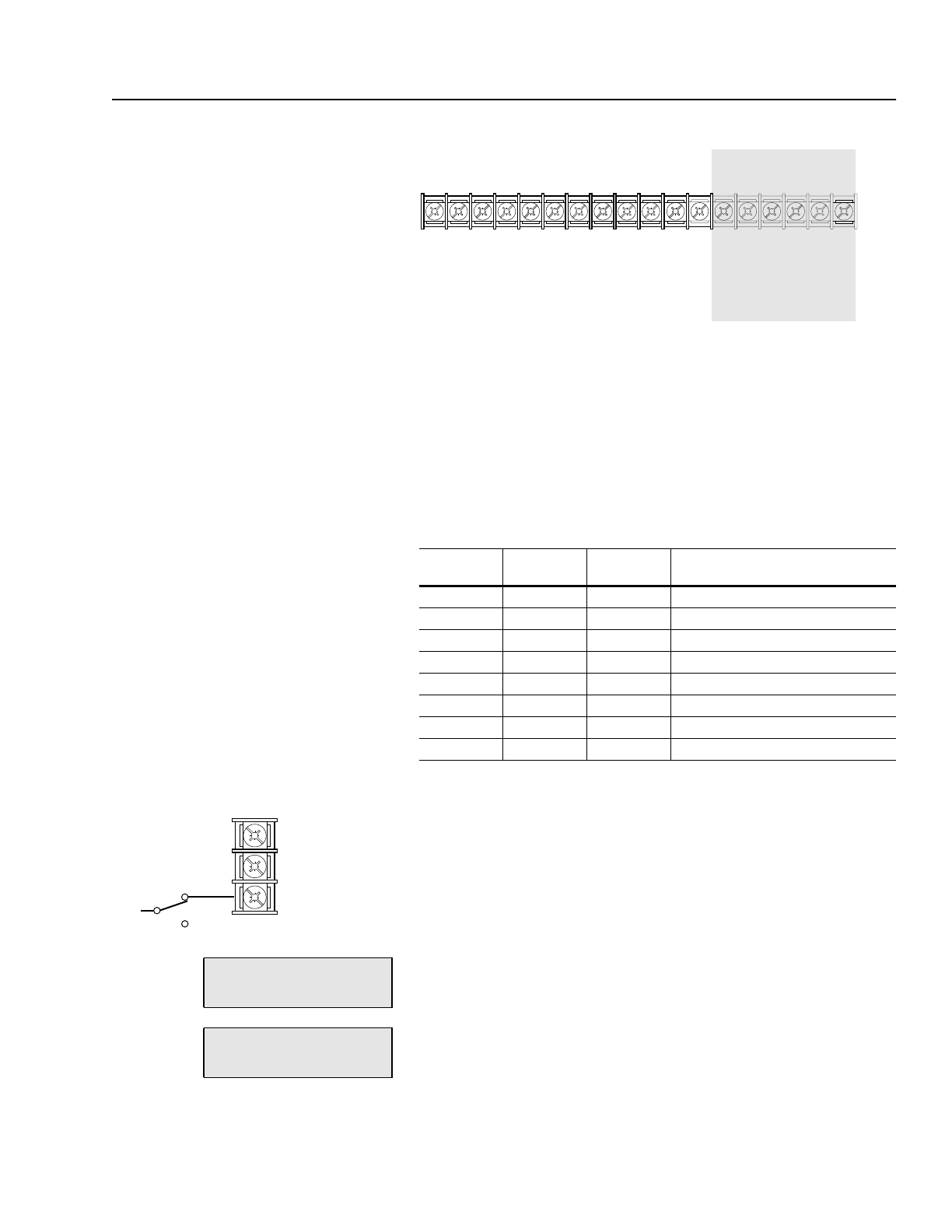

Figure 5.3
TB3 Terminal Designations
Speed Select/Speed Reference
Several sources can provide the speed reference to the drive. A
SCANport device or the L Option determine the source.
The default source for a command reference (all speed select inputs
open) is Speed Ref 1. If any of the speed select inputs are closed, the
drive uses other parameters as the speed reference source.
The following table defines the input state of the Speed Select inputs
for a desired speed reference source:
Closed = Applied = 1
Open = Removed = 0
Example 1
For the first example, input mode 2 has been selected. The application
calls for a local Human Interface Module (HIM) speed command or
remote 4 – 20mA from a PLC. To program the drive for this example:
1. Set the value of SP An In1 Select (parameter 133) to 1.
2. Set the value of SP An In1 Scale (parameter 135) to 0.125.
3. Link SP An In1 Value (parameter 134) to Speed Ref 1
(parameter 29).
4. Set mA In Offset (parameter 103) to 0.
5. Set mA In Scale (parameter 104) to 2.
6. Link mA In Value (parameter 102) to Speed Ref 2 (parameter 31).
Speed
select 3
Speed
select 2
Speed
select 1
Frequency source:
Open Open Open Speed Ref 1
Open Open Closed Speed Ref 2
Open Closed Open Speed Ref 3
Open Closed Closed Speed Ref 4
Closed Open Open Speed Ref 5
Closed Open Closed Speed Ref 6
Closed Closed Open Speed Ref 7
Closed Closed Closed Last State
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
Input 1
Input 2 (Stop)
Common
Input 3 Input 4 Input 5
Common
Input 6 Input 7 Input 8
Common
Enable
Encoder B
Encoder NOT A Encoder NOT B
Encoder A
+12V
(200mA max.)
Encoder Common
Included on L7E, L8E, & L9E Only
Speed Select 1
Speed Select 2 (Open)
Speed Select 3 (Open)
26
Local
Remote
27
28
file:
Interface/Comm
group:
SCANport Analog
file:
Interface/Comm
group:
Analog Inputs
