Mounting and Wiring Information Specific to Frames B, C, D, E, F, G, and H 4-23

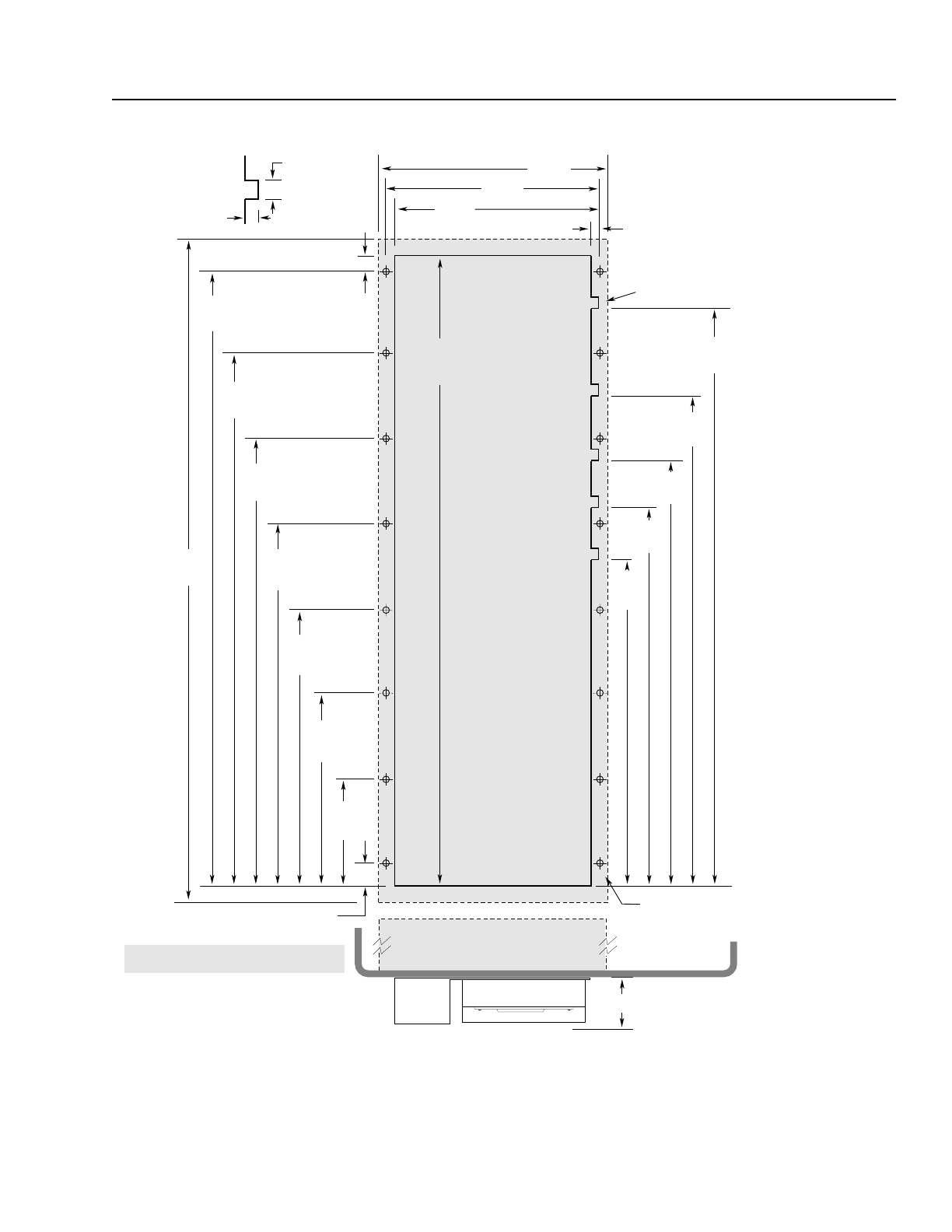

Heat Sink Through-the-Back Mounting - Frame D
6.1
(0.24)
4.6 (0.18)
9.9 (0.39)
362.2
(14.26)
375.2
1
(14.77)
356.1
(14.02)
Detail
See Detail
26.7
(1.05)
1145.3
(45.09)
182.6
(7.19)
26.7
(1.05)
338.6
(13.33)
494.5
(19.47)
806.7
(31.76)
962.7
(37.90)
1118.6
(44.04)
1178.1
1
(46.38)
650.8
(25.62)
587.0
(23.11)
867.4
(34.15)
680.5
(26.79)
1054.4
(41.51)
773.9
(30.47)
Cutout as Viewed
from INSIDE Enclosure
16 Required
4.3 (0.171) Dia. for 10-32 x 9.7 (0.38) Self-Tap
4.0 (0.159) for 10-32 x 9.7 (0.38) Threaded
84.1 (3.31) *
Back of Enclosure
Drive
All Dimensions in Millimeters
and (Inches)
* Minimum dimension allowed – More space will
improve fan effectiveness and heat dissipation.
1
Shading indicates approximate size
of drive inside enclosure.
