Mounting and Wiring Information Specific to Frames B, C, D, E, F, G, and H 4-19

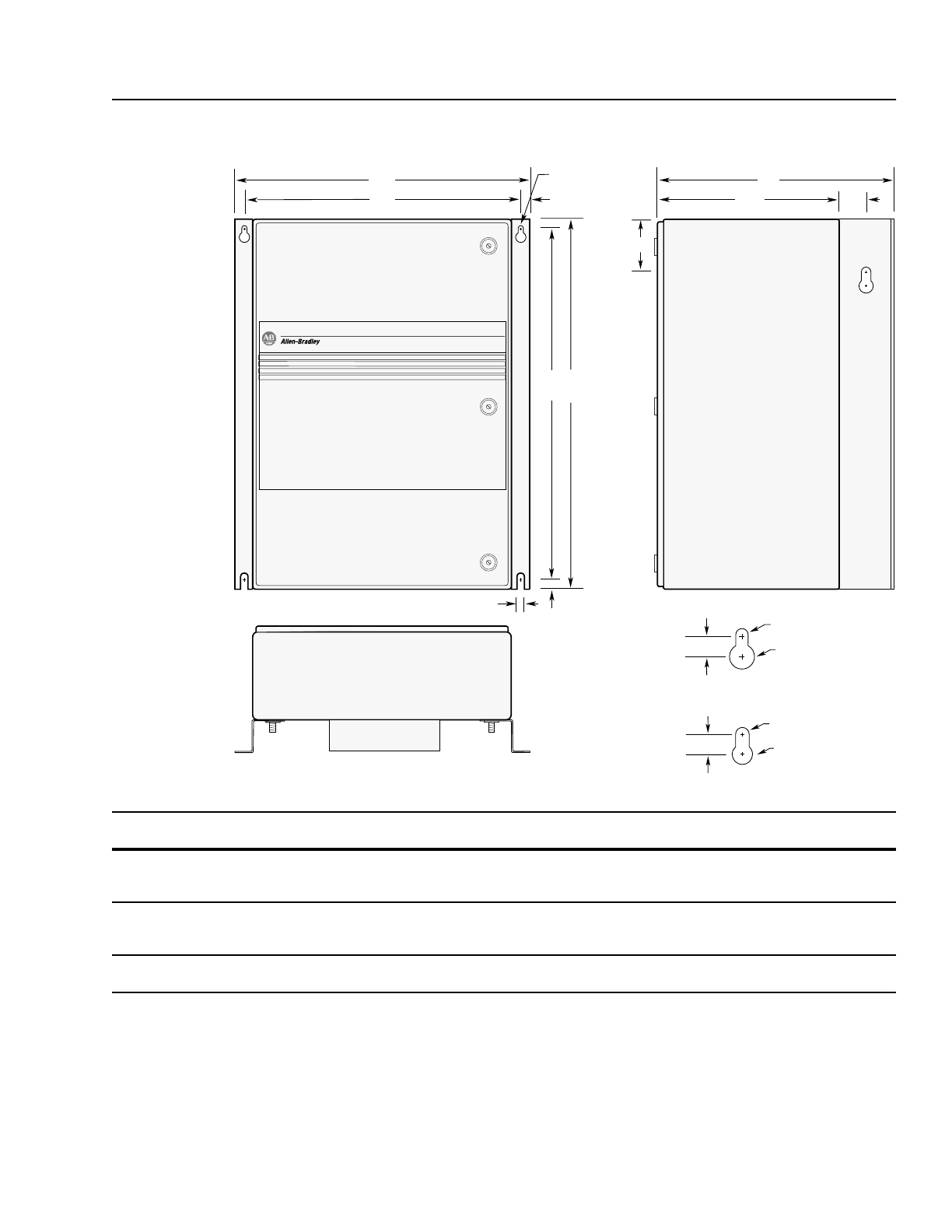

The following are the dimensions for the IP65/54 (NEMA 4/12)
enclosures.
Typical Top and Bottom
Detail A
See Detail A
See
Detail B
A
D
F
G
H
C
EB
12.7 (0.50)
12.4 (0.49)
7.9 (0.31)
All Dimensions in Millimeters and (Inches)
7.1 (0.28) Dia.
12.7 (0.50)
12.7 (0.50) Dia.
14.3 (0.56) Dia.
Drive
Heatsink
Detail B
19.1 (0.75) 19.1 (0.75) Dia.
Frame
Reference
ABCDEFGH
Approx.
Ship Weight
B1
5.5 kW (7.5 HP) at 200 – 240V AC
5.5 – 11 kW (7.5 – 15 HP) at 380 – 480V AC
5.5 – 7.5 kW (7.5 – 10 HP) at 500 – 600V AC
655.0
(25.79)
650.0
(25.59)
425.0
(16.74)
629.9
(24.80)
625.1
(24.61)
293.0
(11.54)
63.5
(2.50)
76.2
(3.00)
44.7 kg
(98.5 lbs)
B2
7.5 – 11 kW (10 – 15 HP) at 200 – 240V AC
15 – 22 kW (20 – 30 HP) at 380 – 480V AC
11 – 15 kW (15 – 20 HP) at 500 – 600V AC
655.0
(25.79)
900.0
(35.43)
425.0
(16.74)
629.9
(24.80)
875.0
(34.45)
293.0
(11.54)
63.5
(2.50)
76.2
(3.00)
56.5 kg
(124.5 lbs)
C
655.0
(25.79)
1200.0
(47.24)
425.0
(16.74)
629.9
(24.80)
1174.5
(46.22)
293.0
(11.54)
63.5
(2.50)
76.2
(3.00)
80.7 kg
(178.0 lbs)
