4-12 Mounting and Wiring Information Specific to Frames B, C, D, E, F, G, and H
Dimensions The following are the dimensions for the B, C, D, E, F, G, and H
frames.

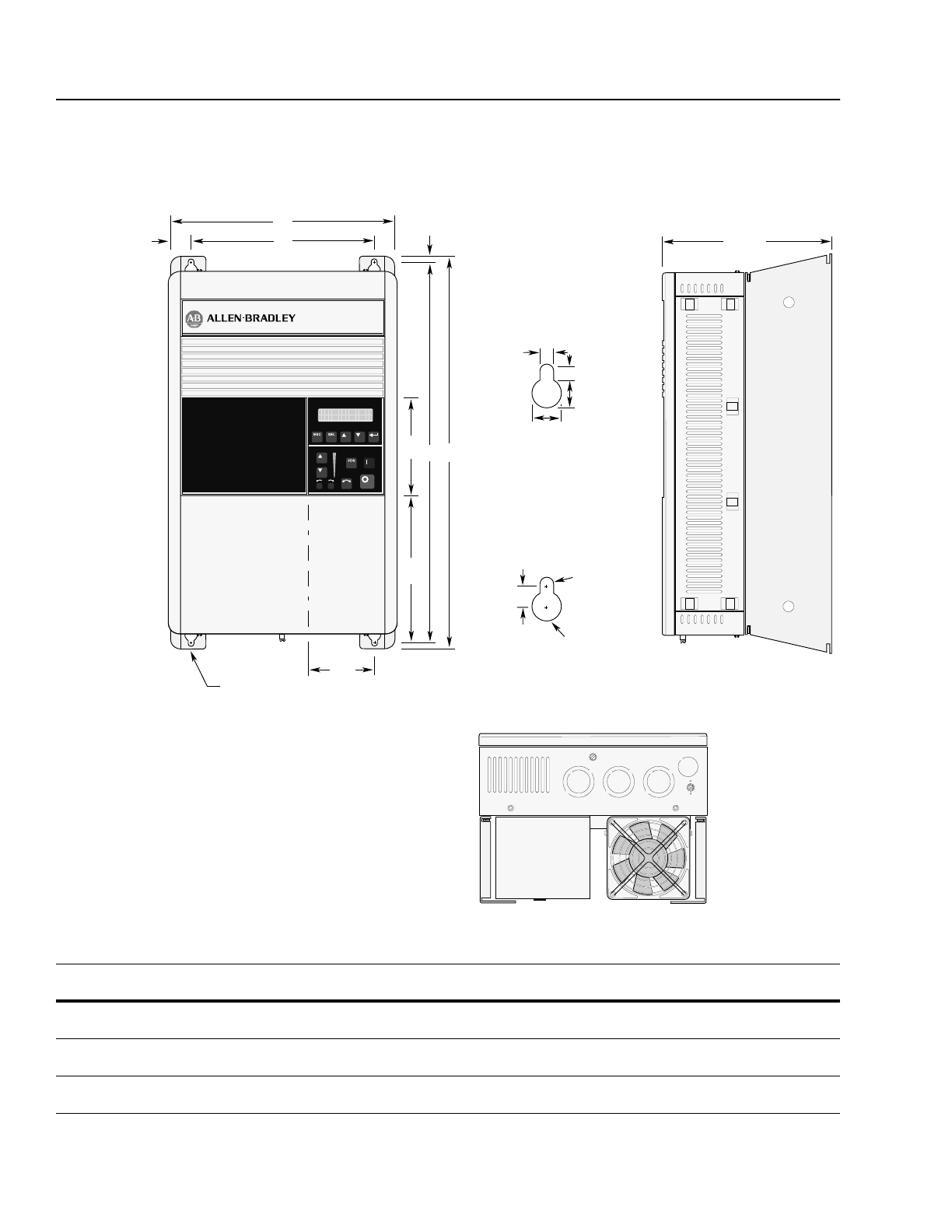

Dimensions for Frames B, C, and D
All Dimensions in Milimeters and (Inches).
All Weights in Kilograms and (Pounds).
Bottom View Will Vary with HP – See
Bottom View Dimensions
C Max.
D
A
Y
CC
E
B
Z
BB
AA
7.1 (0.28)
7.1 (0.28)
12.7 (0.50)
12.7 (0.50)
R 5.2 (0.20)
14.7 (0.58)
R 9.5 (0.38)
Mounting Hole Detail
(Frames B & C)
Mounting Hole Detail
(Frame D)
Mounting Holes (4) – See Detail
Frame
Reference
A B C Max. D E Y Z AA BB CC
Shipping
Weight
B
276.4
(10.88)
476.3
(18.75)
225.0
(8.86)
212.6
(8.37)
461.0
(18.15)
32.00
(1.26)
7.6
(0.30)
131.1
(5.16)
18.08
(7.12)
71.9
(2.83)
22.7 kg
(50 lbs)
C
301.8
(11.88)
701.0
(27.60)
225.0
(8.86)
238.0
(9.37)
685.8
(27.00)
32.00
(1.26)
7.6
(0.30)
131.1
(5.16)
374.7
(14.75)
71.9
(2.83)
38.6 kg
(85 lbs)
D
381.5
(15.02)
1240.0
(48.82)
270.8
(10.66)
325.9
(12.83)
1216.2
(47.88)
27.94
(1.10)
11.94
(0.47)
131.1
(5.16)
688.6
(27.11)
83.6
(3.29)
108.9 kg
(240 lbs)
