4-8 Mounting and Wiring Information Specific to Frames B, C, D, E, F, G, and H
Hard Wiring Your I/O You can use terminal blocks TB10 and TB11 for hard wiring your
I/O. These terminals are shown in Figure 4.6.

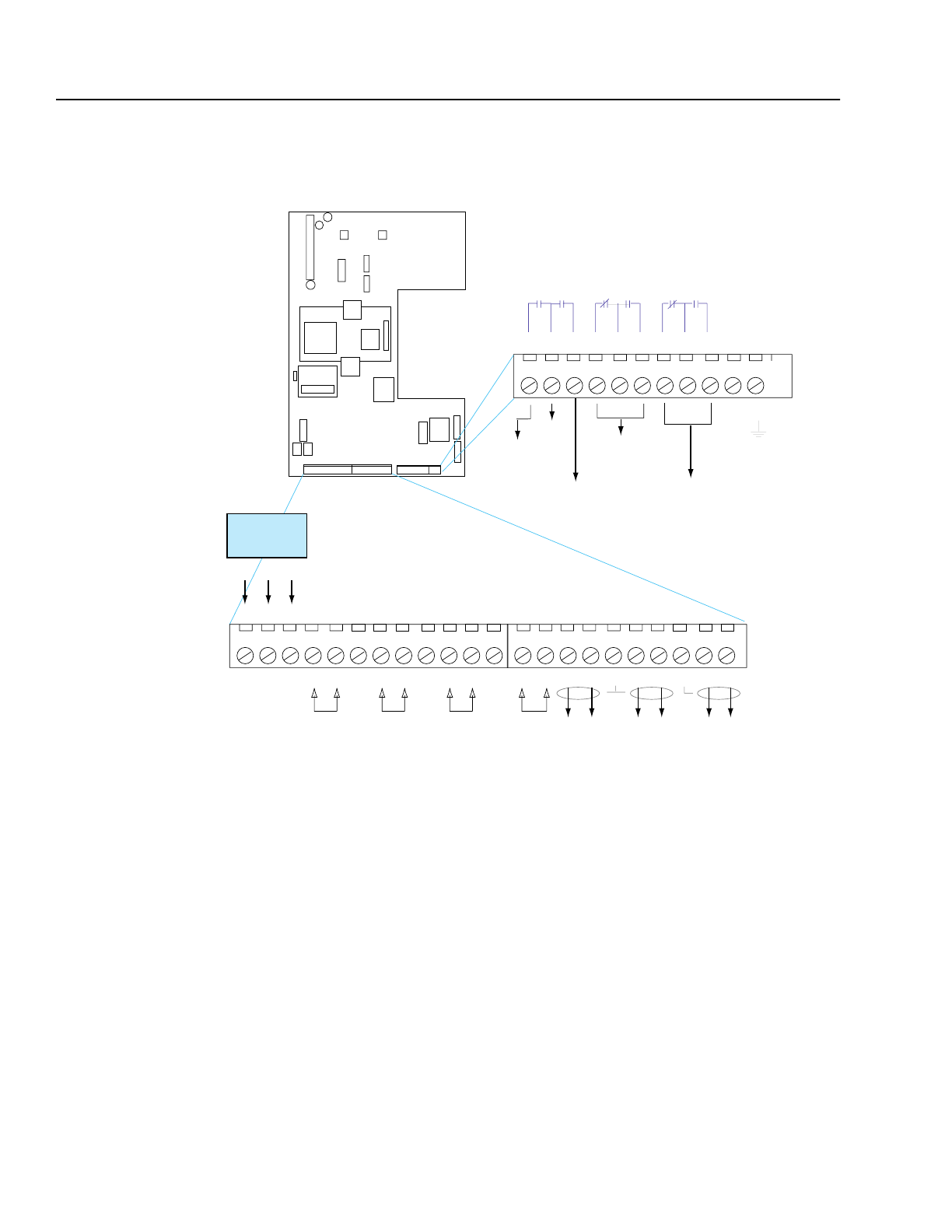

Figure 4.6
Reference Signal Connections
123456789 10
Relay 1
Default: At Speed
Supply
Relay 2
Default: Enable
(Run)
Relay 3
Default: Not Fault
Relay 4
Default: Not Warning
(Alarm)
TE
TB11
13 14 15 16 17 18 19 20 21 22
Analog
Input 1
TB10
123456789101112
DC Power
Supply
+10V Com -10V
+++++++-------
SH SH SH SH SH
Analog
Input 2
4-20 mA
Input
Pulse
Source
Analog
Output 1*
Analog
Output 2*
4-20 mA
Output*
Voltage
Clearance
SH = Shield
NOTE: Analog I/O is differential, non-isolated I/O. A negative (-) does not
Indicate common.
