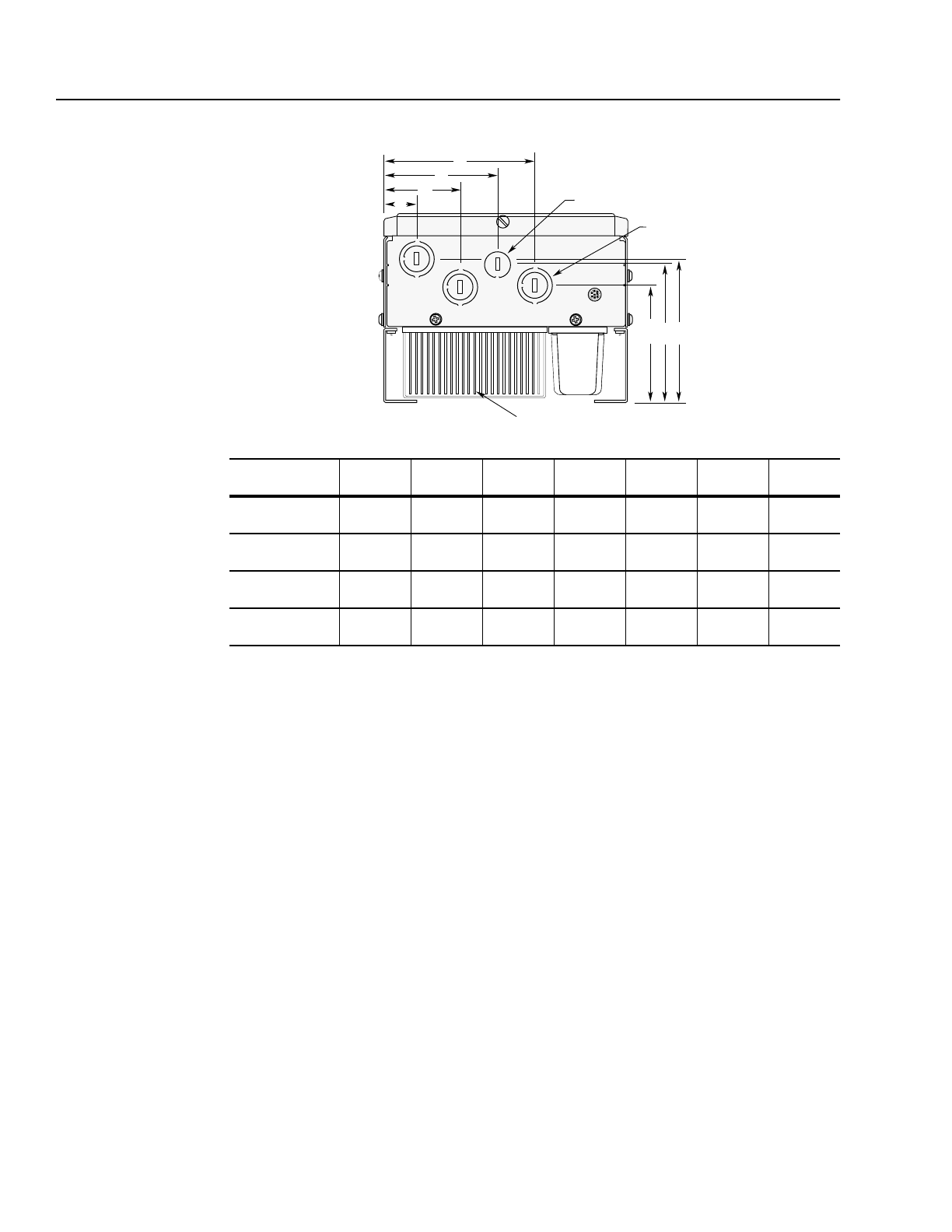

3-6 Mounting and Wiring Information Specific to Frames A1, A2, A3, and A4
Frames A1 through A4
All Dimensions in Millimeters and (Inches).
M
N
L
Q
R
P
S
22.2/28.6 (0.88/1.13)
Conduit Knockout - 3 Plcs.
22.2 (0.88) Conduit Knockout - 1 Plc.
Fans will be present on A4 Frame
Frame
Reference
LMNPQRS
A1
111.8
(4.40)
105.4
(4.15)
86.3
(3.40)
25.4
(1.00)
63.2
(2.49)
102.1
(4.02)
135.4
(5.33)
A2
132.3
(5.21)
126.0
(4.96)
106.9
(4.21)
25.4
(1.00)
63.2
(2.49)
102.1
(4.02)
135.4
(5.33)
A3
158.8
(6.25)
152.4
(6.00)
133.4
(5.25)
25.4
(1.00)
63.2
(2.49)
102.1
(4.02)
135.4
(5.33)
A4
164.0
(6.45)
164.0
(6.45)
139.0
(5.47)
27.0
(1.06)
65.0
(2.65)
97.0
(3.82)
128.7
(5.07)
