Mounting and Wiring Information Specific to Frames A1, A2, A3, and A4 3-5

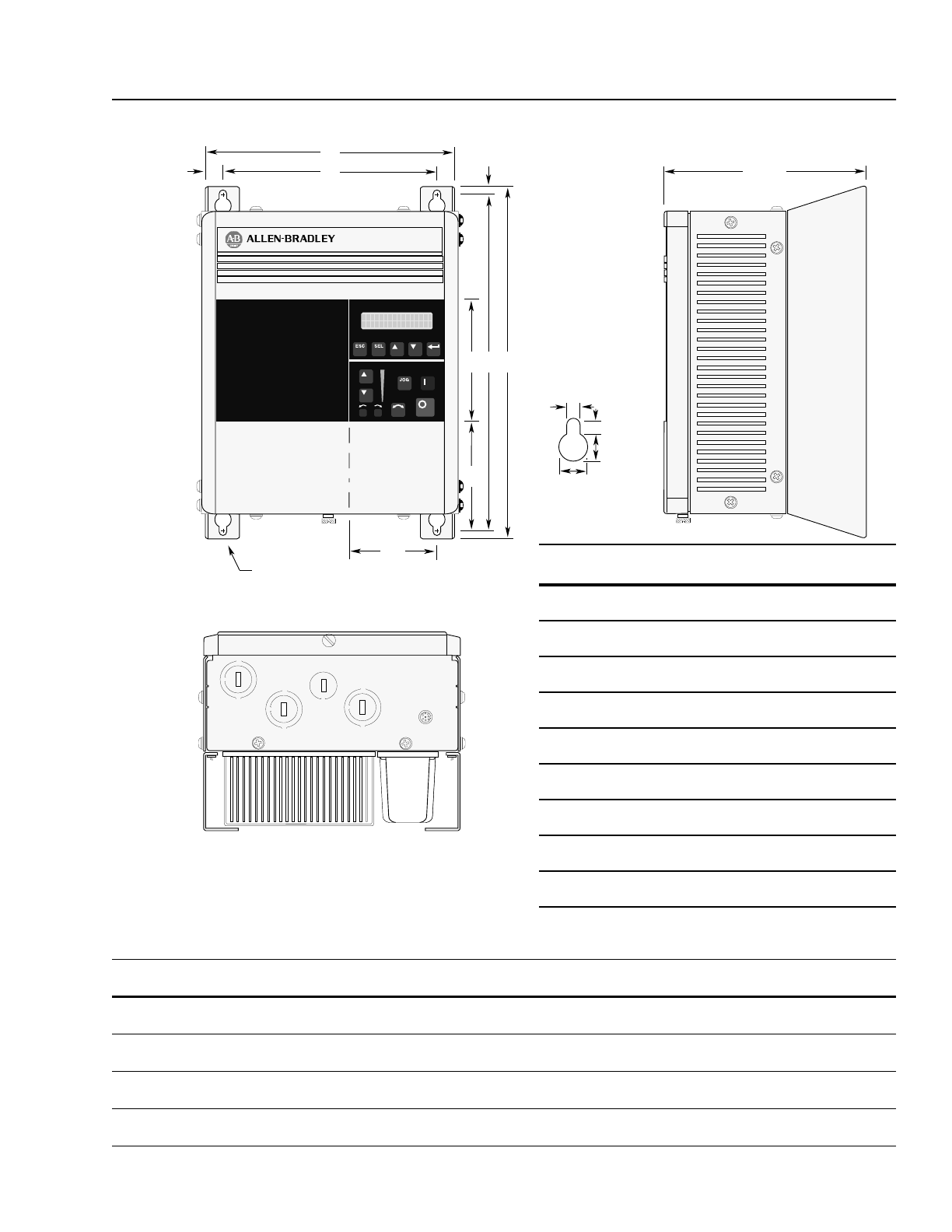

Dimensions The following shows the dimensions for frames A1 – A4.
C Max.
D
A
Y
CC
E
B
Z
BB
AA
Mounting Holes (4) – See Detail
7.0 (0.28)
7.0 (0.28)
12.7 (0.50)
12.7 (0.50)
Mounting Hole Detail
Bottom View Will Vary with HP – See Bottom View Dimensions
* Use care when choosing Frame Reference — some ratings may
exist in another frame size.
Three-Phase Rating
Frame
Reference
200 – 240V 380 – 480V 500 – 600V
0.37 – 0.75 kW
0.5 – 1 HP
0.37 – 1.2 kW
0.5 – 1.5 HP
— A1
1.2 – 1.5 kW
1.5 – 2 HP
1.5 – 2.2 kW
2 – 3 HP
— A2
2.2 – 3.7 kW
3 – 5 HP
3.7 kW
5 HP
— A3
—
5.5 – 7.5 kW
7.5 – 10 HP
*0.75 – 7.5 kW
1 – 10 HP
A4
5.5 – 11 kW
7.5 – 15 HP
11 – 22 kW
15 – 30 HP
*11 – 15 kW
15 – 20 HP
B
15 – 22 kW
20 – 30 HP
30 – 45 kW
40 – 60 HP
18.5 – 45 kW
25 – 60 HP
C
30 – 45 kW
40 – 60 HP
45 – 112 kW
60 – 150 HP
56 – 93 kW
75 – 125 HP
D
56 – 93 kW
75 – 125 HP
112 – 187 kW
150 – 250 HP
112 – 187 kW
150 – 250 HP
E
—
187 – 448 kW
250 – 600 HP
224 – 448 kW
300 – 600 HP
G
Frame
Reference
A B C Max. D E Y Z AA BB CC
Shipping
Weight
A1
215.9
(8.50)
290.0
(11.42)
160.0
(6.30)
185.2
(7.29)
275.0
(10.83)
15.35
(0.60)
7.5
(0.30)
130.0
(5.12)
76.2
(3.00)
85.3
(3.36)
4.31 kg
(9.5 lbs.)
A2
215.9
(8.50)
290.0
(11.42)
180.5
(7.10)
185.2
(7.29)
275.0
(10.83)
15.35
(0.60)
7.5
(0.30)
130.0
(5.12)
76.2
(3.00)
85.3
(3.36)
5.49 kg
(12.1 lbs.)
A3
215.9
(8.50)
290.0
(11.42)
207.0
(8.15)
185.2
(7.29)
275.0
(10.83)
15.35
(0.60)
7.5
(0.30)
130.0
(5.12)
76.2
(3.00)
85.3
(3.36)
6.71 kg
(14.8 lbs.)
A4
260.0
(10.24)
350.0
(13.78)
212.0
(8.35)
230.0
(9.06)
320.0
(12.60)
15.35
(0.60)
15.35
(0.60)
130.0
(5.12)
133.0
(5.23)
86.0
(3.39)
15.90 kg
(35.0 lbs.)
