CE Conformity E-5

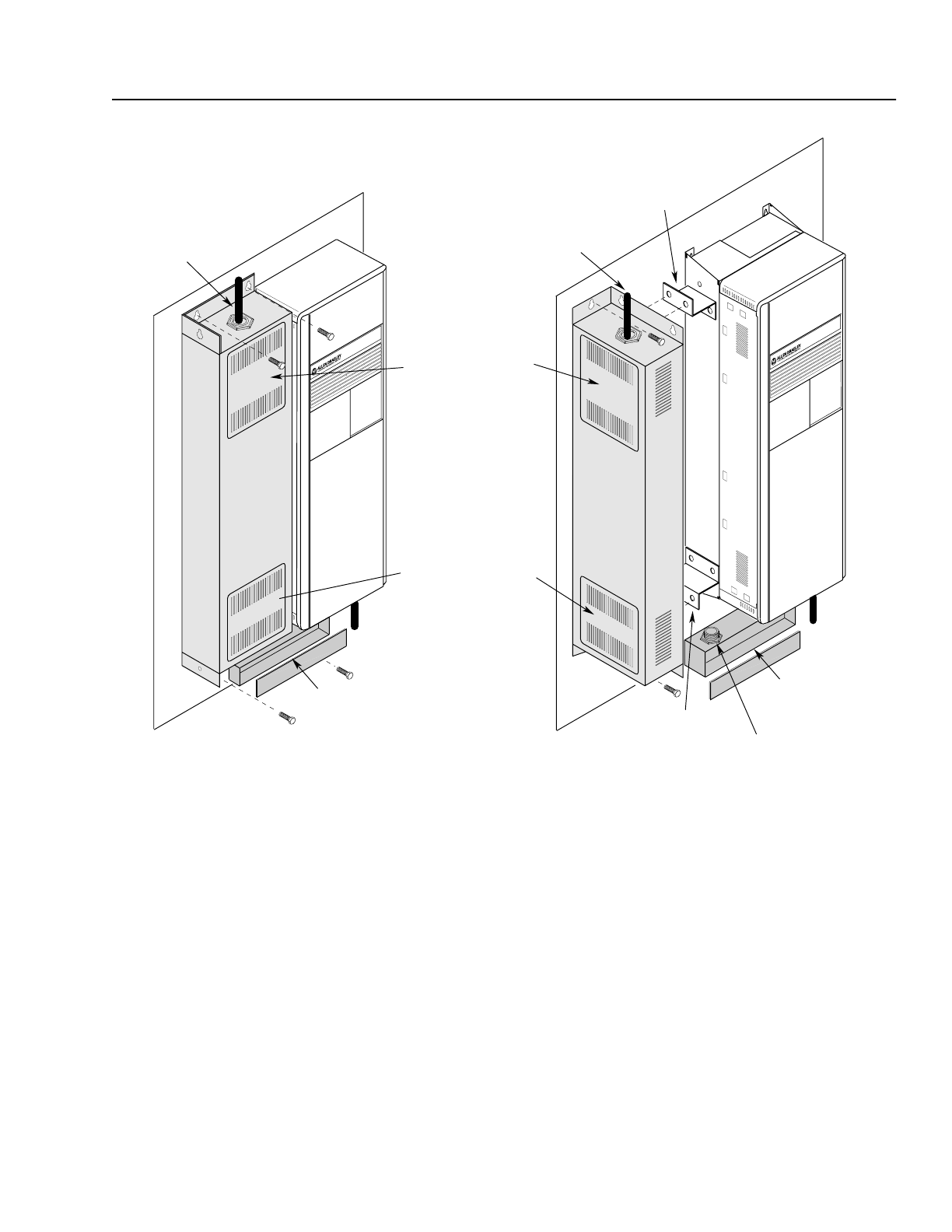

Filter Mounting, Continued
1 Input power (source to filter) and output power (filter to drive and drive to motor) wiring must be in conduit or have shielding/armor with
equivalent attenuation. Shielding/armor must be bonded to the metal bottom plate. See requirements 5 & 6 on page E-1.
2 Refer to the Filter Selection table on page E-2 for frame references and corresponding catalog numbers.
1336 IMPACT
(Through-the-Wall Mounting)
Frames D & E
1336 IMPACT
(Conventional Mounting)
Frames D & E
Conduit Box
To Motor
Access Panel and
Input Terminal Block
Lower Access Panel
Filter Mounting
Bracket
Filter Mounting
Bracket
Important: Drive and filter must be
mounted to a common back plane with
a positive electrical bond. Spacing is
determined by Conduit Box.
Three-Phase
Input
To Motor
Three-Phase
Input
Conduit Box
Nipple/Fitting
1
1
1
1
1
1
2
2
