10-26 Using the Function Block
Using the Band Function The band function lets you select a value based on whether Input 1 is
within a range or outside of a range. Figure 10.31 shows the
parameters that are used for the band function and how these
parameters are evaluated.

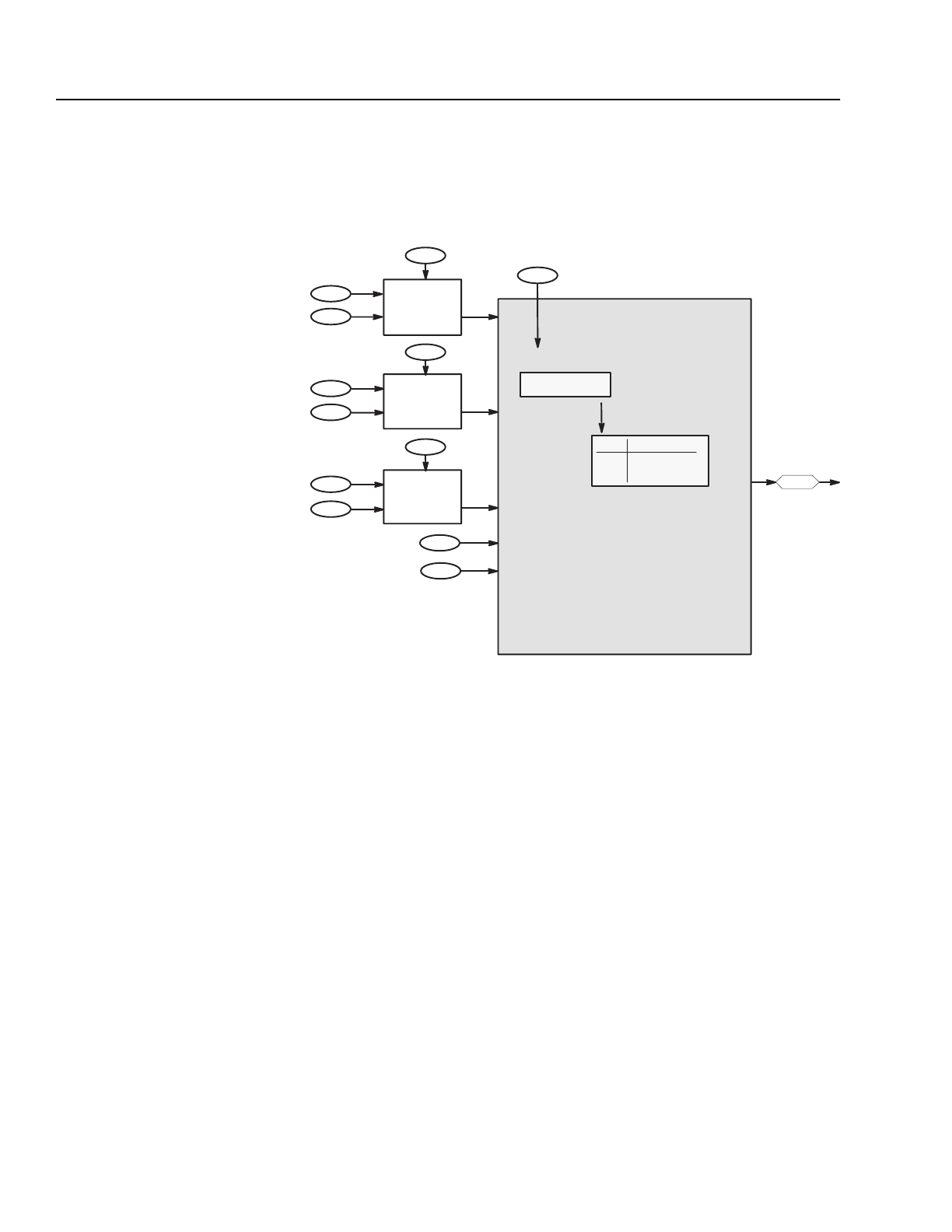

Figure 10.31
Band Function Block
Using the Logical Add/Subtract
Function
The logical add/subtract function lets you use a logical operator to
determine whether to add Input 5 and Input 6 or Input 8 and Input 9.
Figure 10.32 shows the parameters that are used for the logical
add/subtract function and how these parameters are evaluated.
200
Func 1 Eval Sel
0 – 17
198
Function In1
199
Func 1 Mask/Val
I
V
Band Function Block
203
Func 2 Eval Sel
0 – 17
201
Function In2
202
Func 2 Mask/Val
I
V
212
Function Sel
In1
In2
206
Func 3 Eval Sel
0 – 17
204
Function In3
205
Func 3 Mask/Val
I
V
In3
207
Function In4
208
Function In5
In4
In5
213
Function
Output 1
In5 <= In1 <= In4
15
If: Then:
True In2 —> Out 1
False In3 —> Out 1
