10-24 Using the Function Block

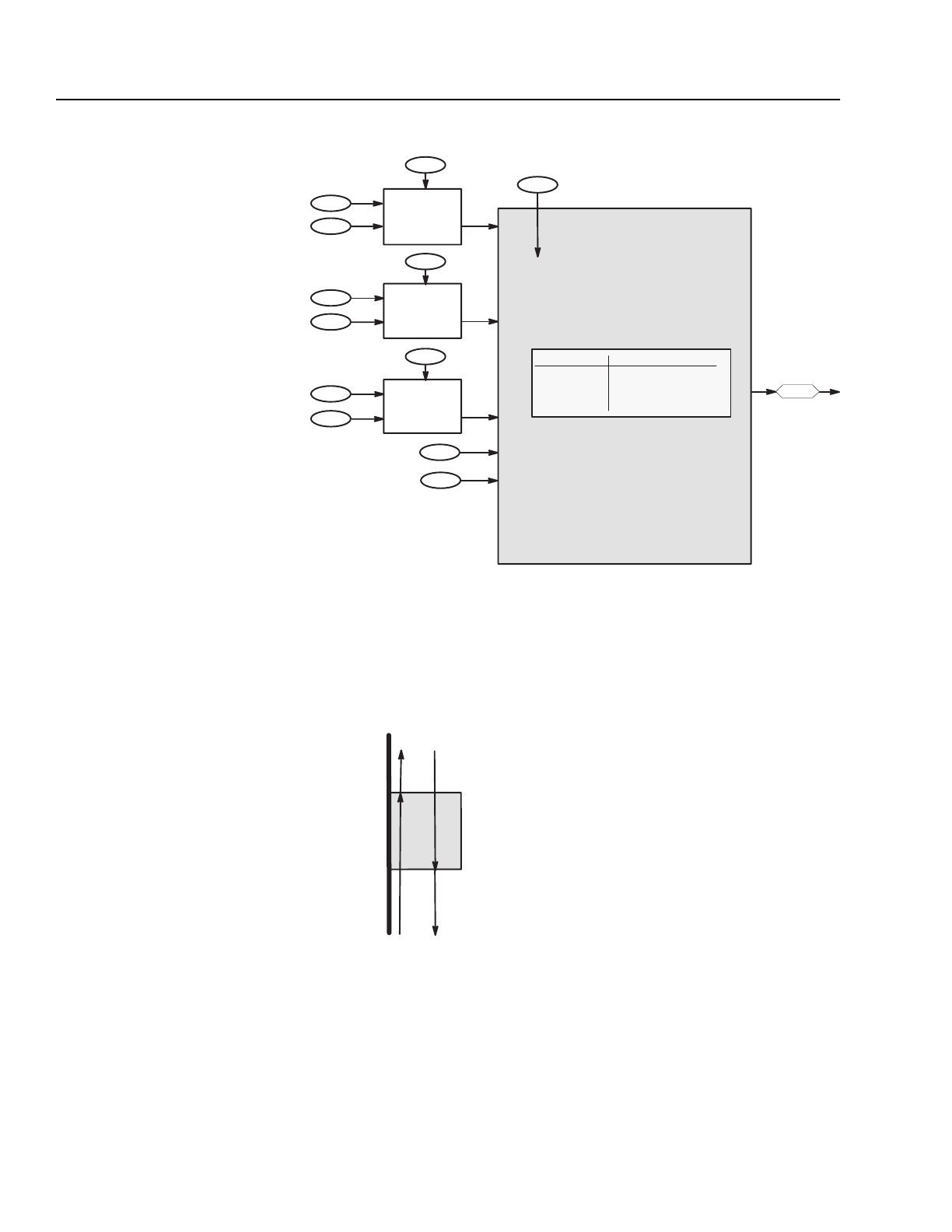

Figure 10.27
Hysteresis Function Block
The hysteresis function provides a band in which the output value
does not change. For example, if an input value is greater than
Input 4, the output value is Input 2. As the input value decrease, the
output value remains Input 2 until the input value is less than Input 5.
Refer to Figure 10.28.
Figure 10.28
Hysteresis
200
Func 1 Eval Sel
0 – 17
198
Function In1
199
Func 1 Mask/Val
I
V
Hysteresis Function Block
203
Func 2 Eval Sel
0 – 17
201
Function In2
202
Func 2 Mask/Val
I
V
212
Function Sel
In1
In2
206
Func 3 Eval Sel
0 – 17
204
Function In3
205
Func 3 Mask/Val
I
V
In3
207
Function In4
208
Function In5
In4
In5
213
Function
Output 1
If: Then:
In1 > In4 In2 —> Out 1
In1 < In5 In3 —> Out 1
In5 < In1 < In4 No change
14
Hysteresis
Band
(No Change)
In 3
In 2
In 2
In 4
Output Values
In 2
In 3
In 3
In 5
