9-12 Applications

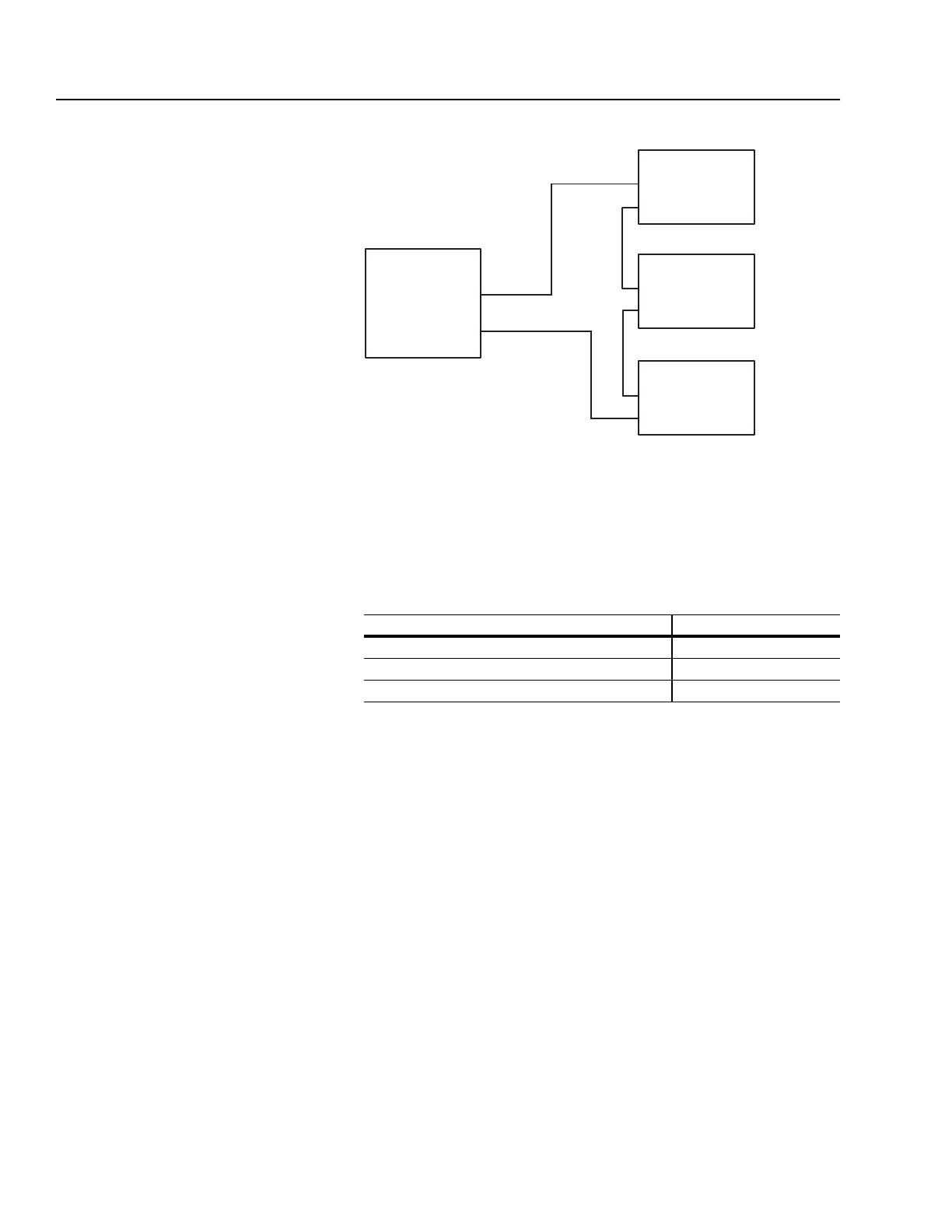

Figure 9.5
An Example of a 4 – 20 mA Application
Using a Remote Pot For some applications, you may want to wire a remote pot to your
1336 IMPACT drive. This section provides two examples of how you
might wire a remote pot to your drive and configure the appropriate
parameters. These are only examples.
The first example is shown in Figure 9.6. In this example, a ±10V pot
is wired to a D frame drive to provide speed control. This example
could apply to any B – H frame drive. However, if you are using an
A1 – A4 frame drive, you would use terminal block TB7 shown in
Figure 3.3.
1336 IMPACT drive
4–20mA Out +
4–20mA Out –
Master Drive
1336 IMPACT drive
1336 IMPACT drive
1336 IMPACT drive
4–20mA In +
4–20mA In +
4–20mA In +
4–20mA In –
4–20mA In –
4–20mA In –
Slave Drives
(Maximum of 3)
For more specific information about: Refer to:
Wiring the analog inputs Chapter 2
Setting up your analog parameters Chapter 7
Specifying direction Appendix B
