8-8 Using the SCANport Capabilities
Setting the SCANport Errors Fault
You can specify how you want to be notified if the SCANport
network receives too many errors to continue working properly.

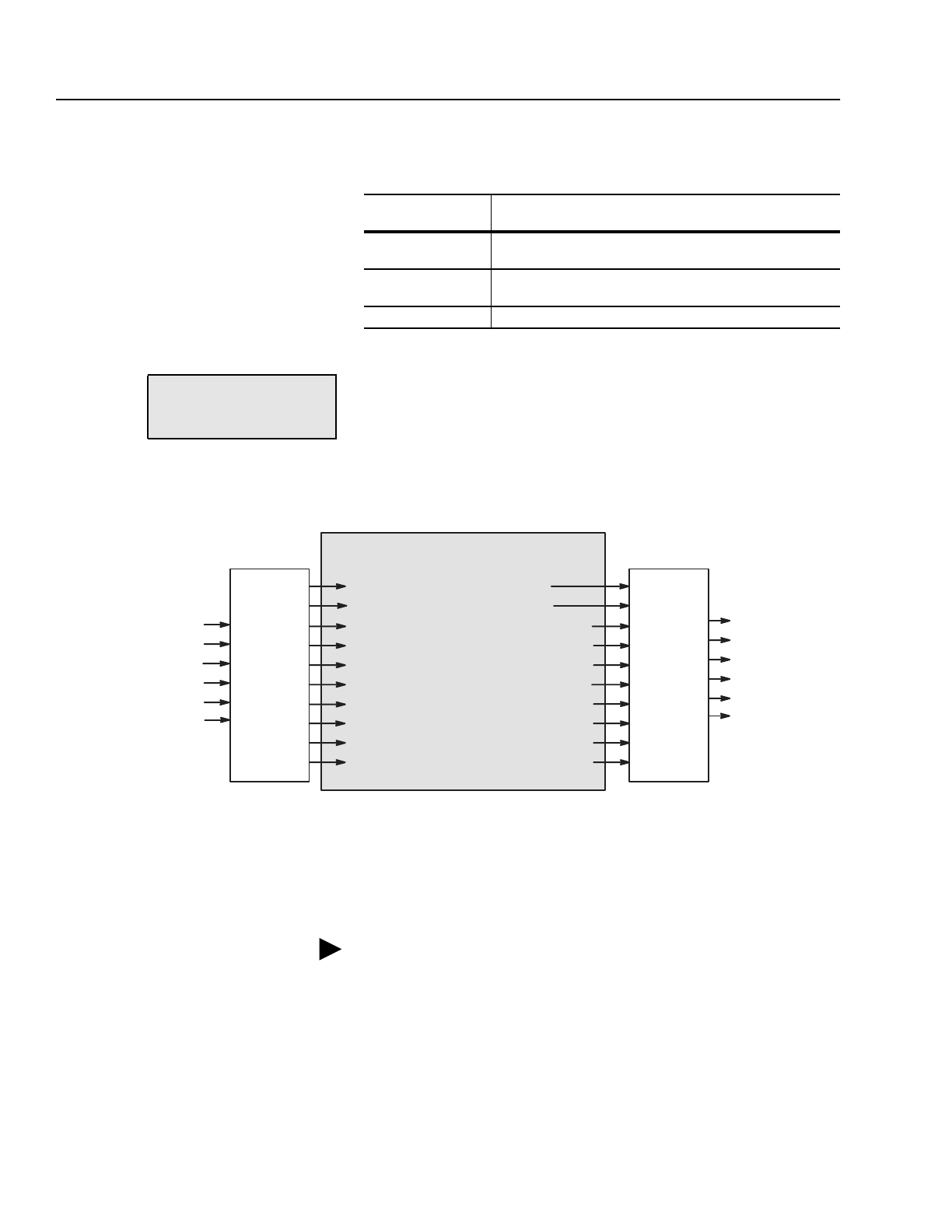

Using the SCANport I/O Image
The SCANport I/O image provides the interface between SCANport
devices and the drive. The SCANport I/O image is used to transfer
realtime data in the same way as the PLC image is used. The devices
on SCANport allocate the SCANport I/O image so multiple devices
can use different sections of the image.
To view the values in the I/O image table, use parameters 140 through
147 for input and 148 through 155 for output:
You need to link the Data In parameters (parameters 140 – 147) to
other drive parameters.
SCANport gateways or adapters to RIO, serial, DeviceNet, SLC, and
Flex I/O are some of the devices that can transfer data between the
SCANport I/O image and another device.
If you want this
condition to be:
Then:
Reported as a fault
Set bit 15 in Fault Select 1 (parameter 20) corresponding to
the SCANport device number.
Reported as a
warning
Set bit 15 in Warning Select 1 (parameter 21) and clear the bit
in Fault Select 1.
Ignored Clear bit 15 in both Fault Select 1 and Warning Select 1.
file:
Interface/Comm
group:
Gateway Data In &
Gateway Data Out
SCANport Device 1
SCANport Device 2
SCANport Device 3
SCANport Device 4
SCANport Device 5
Data In A1 (Par 140)
Data In A2 (Par 141)
Data In B1 (Par 142)
Data In B2 (Par 143)
Data In C1 (Par 144)
Data In C2 (Par 145)
Data In D1 (Par 146)
Data In D2 (Par 147)
SCANport
Image In
SCANport Device 1
SCANport Device 2
SCANport Device 3
SCANport Device 4
SCANport Device 5
Data Out A1 (Par 148)
Data Out A2 (Par 149)
Data Out B1 (Par 150)
Data Out B2 (Par 151)
Data Out C1 (Par 152)
Data Out C2 (Par 153)
Data Out D1 (Par 154)
Data Out D2 (Par 155)
SCANport
Image Out
SCANport Device 6
SCANport Device 6
1336 IMPACT
Logic Command
Reference
Logic Status
Feedback
Refer to the appropriate manual for your specific adapter.
