6-4 Starting Up Your System
Understanding the Basics of
the Human Interface Module
(HIM)
The Human Interface Module (HIM) is the standard user interface for
the 1336 IMPACT drive.
Important: For more information about the HIM, refer to
Appendix C, Using the Human Interface Module (HIM).
Important: The start up procedure described in this manual assumes
that you are using a HIM. If you are using another programming
device, such as a Graphic Programming Terminal (GPT), refer to the
instructions for that programming device and modify the start up
instructions in this manual accordingly.
Important: Your HIM should be connected to SCANport 1 for all
HIM functions to work correctly. The defaults have been set up for
the HIM to be connected to port 1. If you plug the HIM into a
different port, you need to change the default links.
The HIM contains a display panel and a control panel. The display
panel lets you program the drive and view the various operating
parameters. The control panel lets you control different drive
functions.

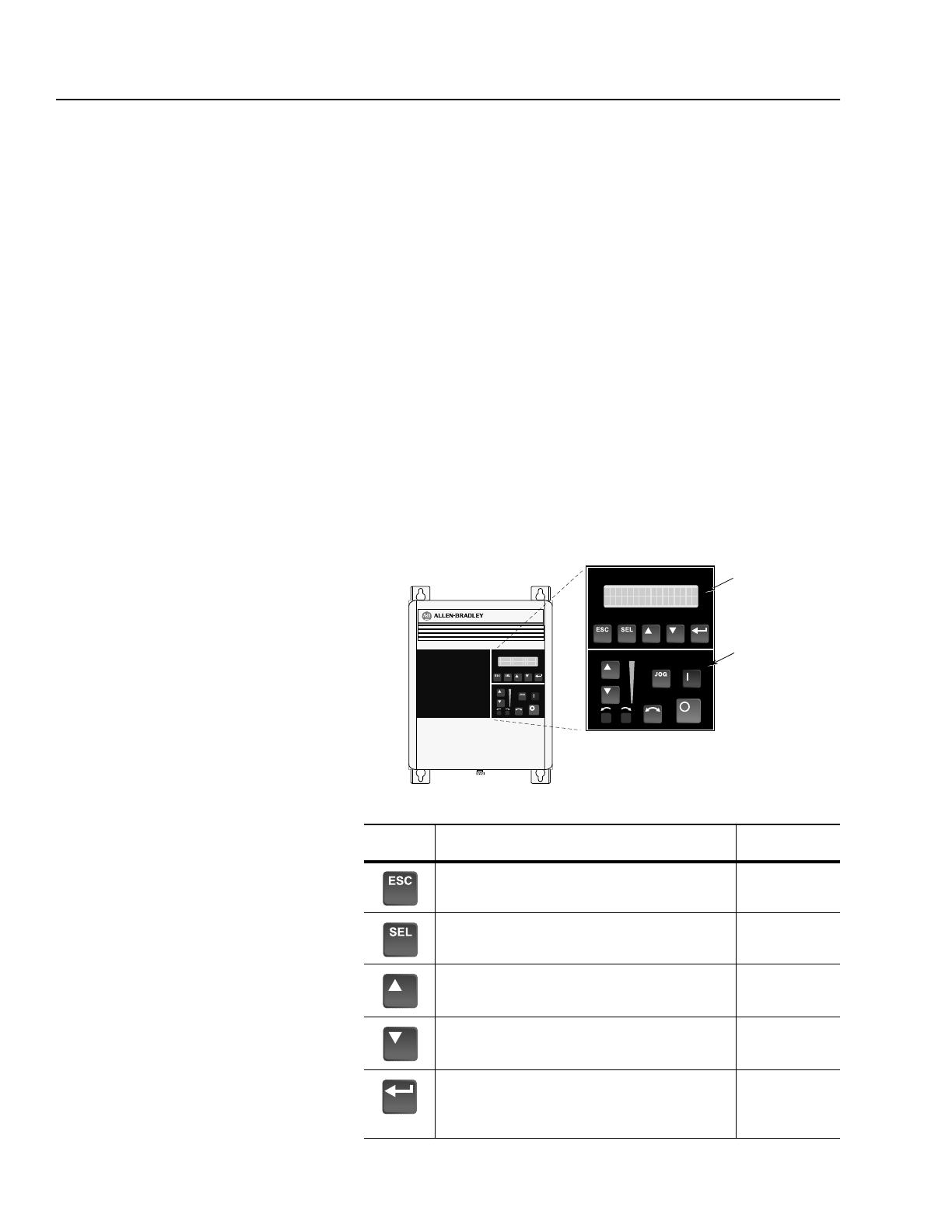

Figure 6.1 shows an example of a HIM.
Figure 6.1
Example of a HIM
The display panel provides the following keys:
Press this
key:
To:
This key is
referred to as:
Go back one level in the menu tree that the HIM uses
to organize information.
The Escape key
Alternate which display line (top or bottom) is
currently active.
The Select key
Increment (increase) the selected value. If no value is
selected, use this key to scroll through the groups or
parameters currently selected.
The Increment
key
Decrement (decrease) the selected value. If no value
is selected, use this key to scroll through the groups
or parameters currently selected.
The Decrement
key
Select the group or parameter that is currently active
or enter the selected parameter value into memory.
The top line of the display automatically becomes
active to let you choose another parameter or group.
The Enter key
Display Panel
Control Panel
Human Interface Module
(HIM)
