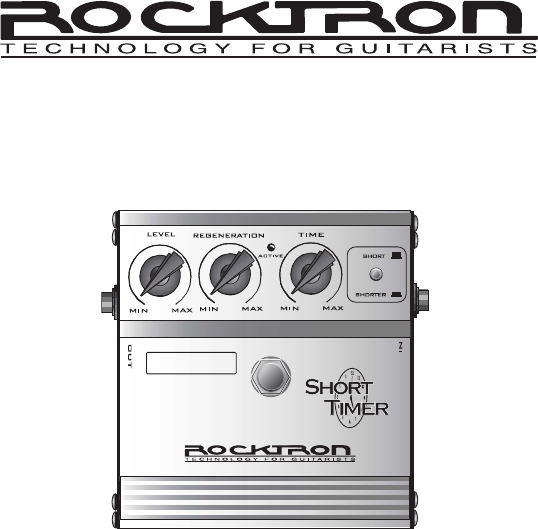

Short Timer Retro Digital Delay Instruction Manual RETRO DIGITAL DELAY May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
Your Short Timer™ pedal has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC Electromagnetic Compatibility Standard(s): EN55013, EN50082-1 This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be immune from other sources of interference when properly used.
Precautions Continued.... Do not block any ventilation openings (if applicable). Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.
Introduction Congratulations on your purchase of the Rocktron Short Timer Retro Digital Delay Pedal. The Short Timer Retro Digital Delay has been specifically designed to provide a short or quick slapback delay that is warm and lush. The Short Timer is an extremely useful live and studio digital delay. Two modes of delay, “Short” and “Shorter”, provide a wide range of quick delays that are the most widely used delay times in modern music.
Connection 1
Connection 2
RETRO DIGITAL DELAY 1 Level Control - Adjusts the overall volume of the delay effect. Turning the control clockwise increases the volume of the delay. Turning the control counter-clockwise decreases the volume. 2 Regeneration Control - Adjusts the number of repetitions of delay effect. Turning the control clockwise increases the number of repetitions. Turning the control counter-clockwise decreases the number of repetitions.
Bottom Left Side Right Side 6 Output Jack - Using a standard guitar cable with a 1/4” jack, plug into the input of your guitar amplifier or next stomp box 7 Input - Using a standard guitar cable with a 1/4” jack, plug the output of your distortion pedal or your guitar into this jack. If using in an effects loop plug the cable from the “send jack” on the amp or effects unit to this jack.
Specifications Maximum Input +10dBu Input Impedance 1M ohm Current Consumption Power Requirements 27ma 9VDC <=300ma * CE Approved * Hints and Tips: Digital Delay pedals usually sound better when placed after distortion. Thus, if you are using a distortion pedal, place the Short Timer after the distortion pedal in the signal chain.
