6

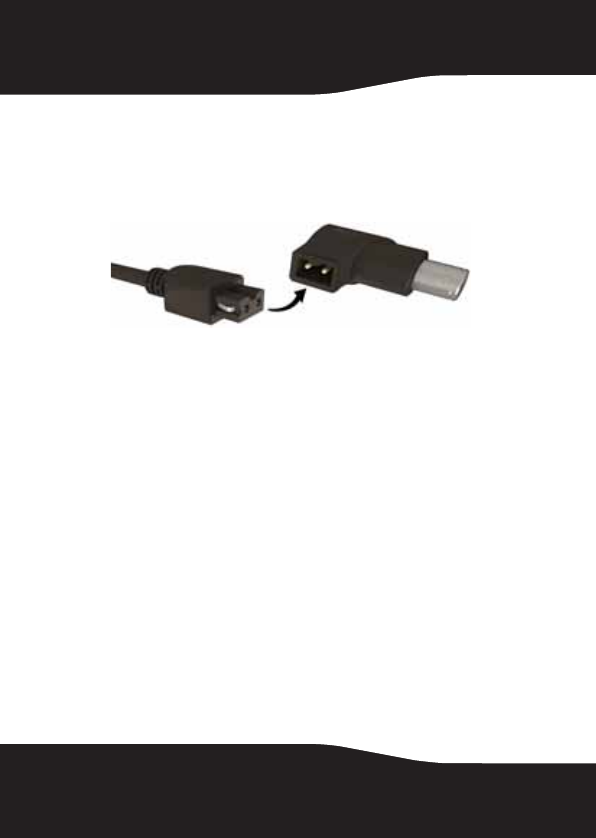

3 Connect the selected tip to the end of the output cable,
making sure that the pins on the tip are aligned with the
holes in the cable. The ridge on the inside of the tip
should align with the groove in the output cable
connector. Also make sure that the tip is pushed all the
way into the output cable's connector.
4 Connect the AC cord to the socket on the AC adapter.
5 Plug the AC cord into an AC power outlet. The LED on the
adapter turns green indicating that the adapter is
powered and ready.
IMPORTANT: If the adapter's LED does not turn on, or if it
blinks, discontinue use and contact our toll free help line for
assistance (800) 620-2790.
6 Plug the tip connected to the output cable into the
matching DC input jack on the side or back of your
netbook. The adapter powers the netbook and charges
its battery.
