Manual


LynxmotionSSC32UServoControllerBoard
ElectronicsGuide


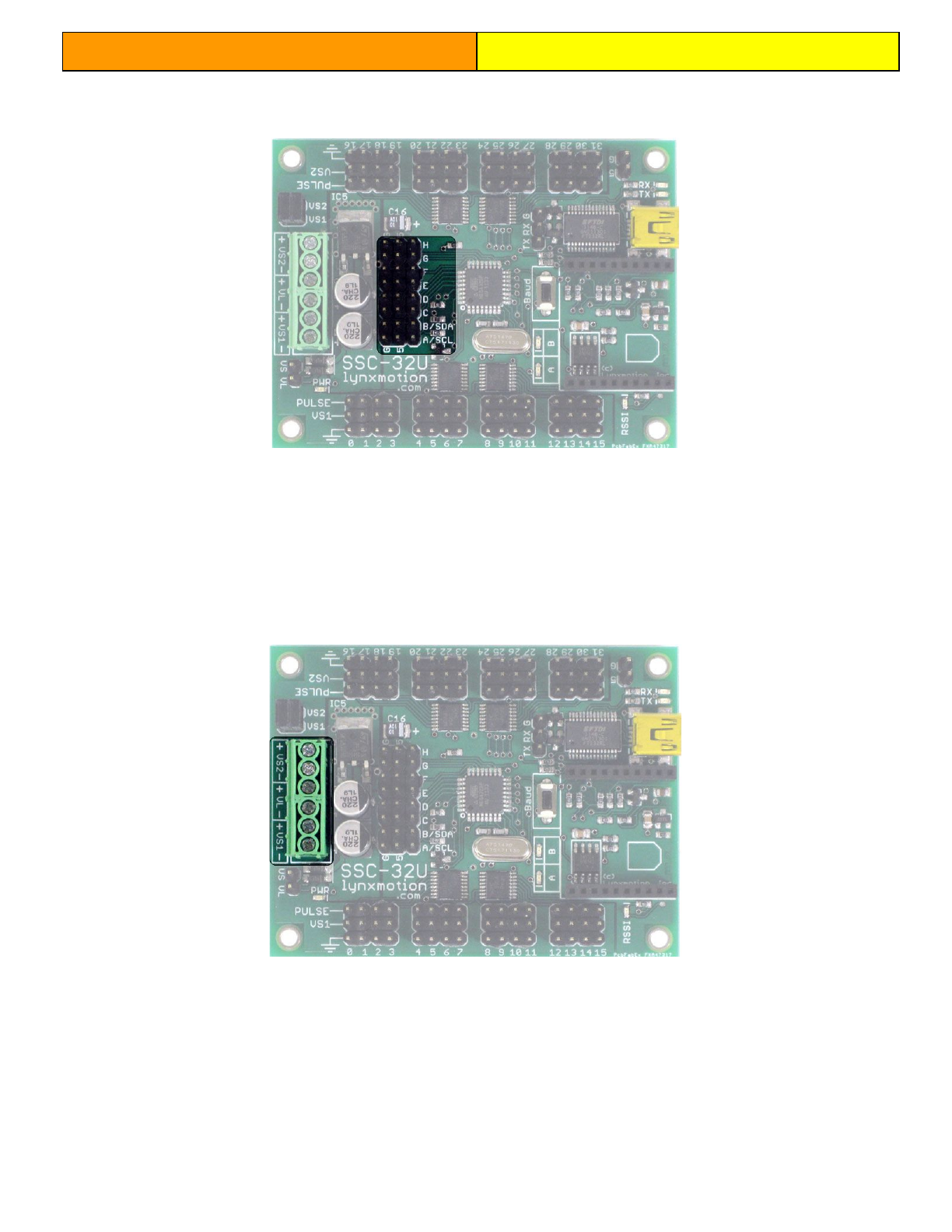

AnalogIOPins

Thereare8I/Opinsincludedontheboardlabeled‘A’to‘H’.Therowofpinsontheleftmarked
with‘G’correspondtoground(normallytheblackwireonathreepincable).Thecenterrowof
pins,markedwith‘5’provides5Voutput(normallytheredwire).Thelastrowofpins(nolabel)is
forthesignal.TwoofthesepinscanalsobeusedforI2C,withpinAcorrespondingtoSCLand
pinBcorrespondingtoSDA.ForI2Ccommunication,youshouldalsoconnecttheGNDpin,and
iftheSSC32ispoweringtheotherI2Cdevices,youshouldalsoconnectoneofthe5Vpins.

ScrewTerminals

VS1providespowerdirectlytopins0to15(ideally4.8Vto6VforstandardRCservos)
VS2providespowerdirectlytopins16to31(ideally4.8Vto6VforstandardRCservos)
VLprovidespowertothelogiccontroller
Besuretoconnectthepositivewire(usuallyred)tothe‘+’andthenegativewire(usuallyblack)
to‘’.Ensurenoloosewirescontactbothatthesametime(causingashortcircuit).
Pleaserefertothepowersectionofthisguideforimportantinformation.
9
