LynxmotionSSC32UServoControllerBoard
ElectronicsGuide


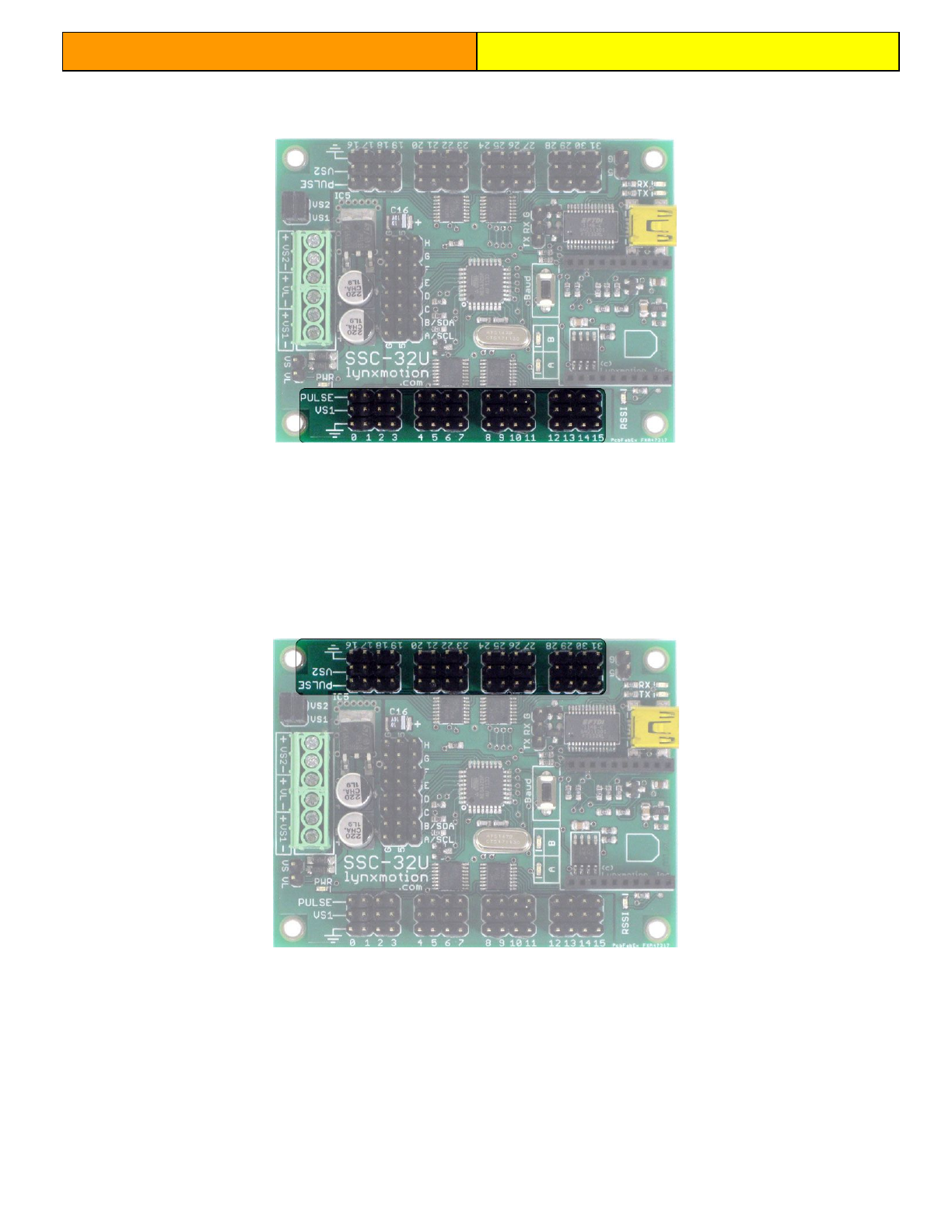

S1Pins

TheSSC32Uservocontrollercancontrolupto32servos,whicharelaidoutastwoseparate
sectionsof16servos,eachgroupedtogetherinsetsoffour.Pins0to15correspondstoVS1.
Theoutermostpin(farthestfromthecenteroftheboard)isthegroundpin(normallytheblack
wireinathreepincable).Thecenterpincorrespondstothevoltage(normallytheredwire)and
ismarkedwithVS1.Thelastpinisthesignalpinwhichsendsthepositioncommandtothe
servo.Thesignalwire’scolormayvary,butisnormallywhiteoryellow.

S2Pins

Thisisthesecondsetof16pins.Pins16to31correspondtoVS2.Theoutermostpin(farthest
fromthecenteroftheboard)isthegroundpin(normallytheblackwireinathreepincable).The
centerpincorrespondstothevoltage(normallytheredwire)andismarkedwithVS1.Thelast
pinisthesignalpinwhichsendsthepositioncommandtotheservo.Thesignalwire’scolormay
vary,butisnormallywhiteoryellow.


