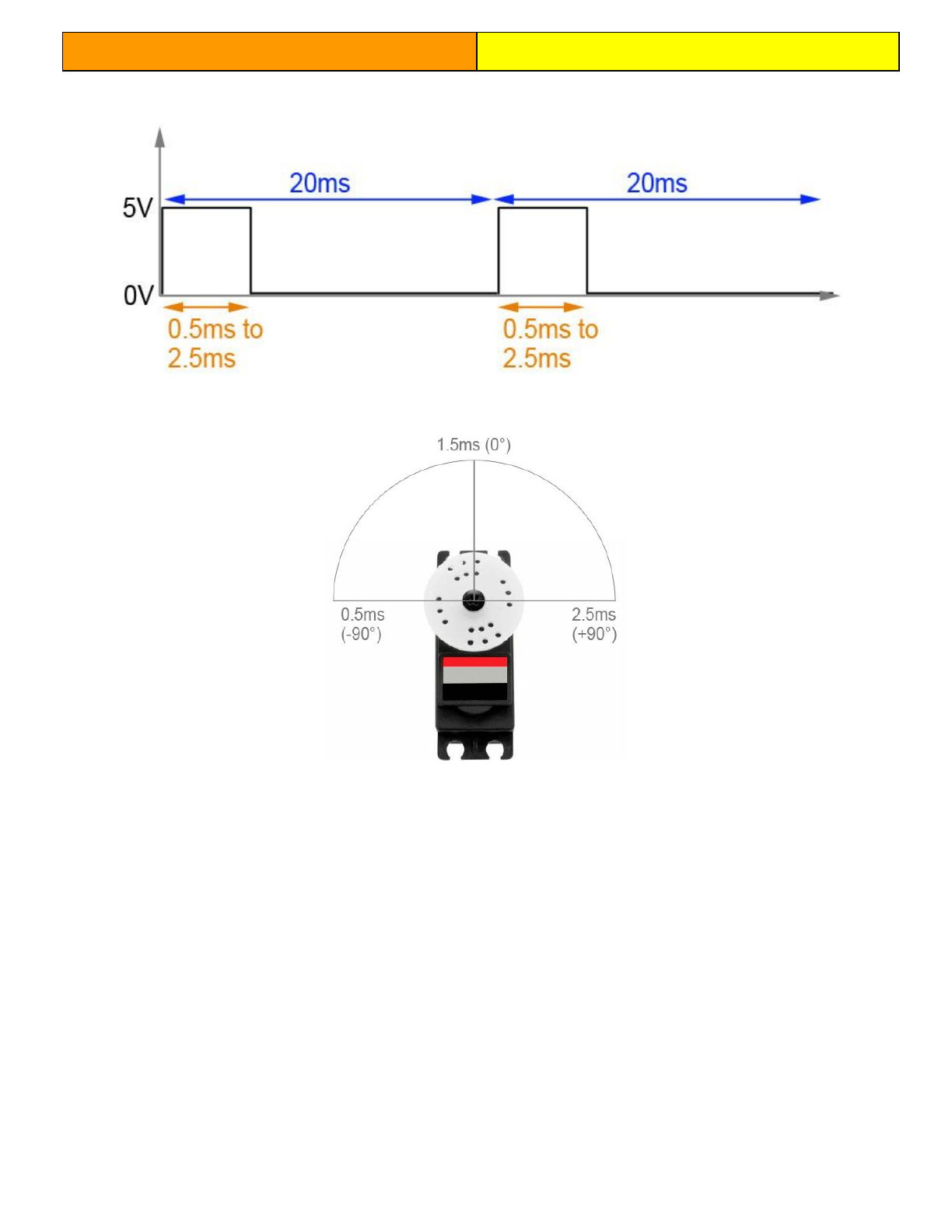

R/CTimedPulse(repeatedevery20ms)


HitecStandardServoShowingOperatingAnglevsSignal

WhenanRCservoreachesaspecificangle,itwilltryitsbesttoretainthatposition,providedit
keepsreceivingthesignalevery20ms.Ifthetorqueishigherthanwhattheservocanprovide,
thecurrentwillincreasedrastically,causingtheservotoheatupandeventuallyfail.

MostR/Cservoshaveadutycycleofaround25%.The“dutycycle”correspondstohowlong
themotorshouldbeonversusoff.Thisdoesnotmeantosaythatyoucouldrunaservomotor
for1hourandletitcoolofffor3hours;wesuggestthatanormalservomotorshouldbein
constantoperationforlessthanaround10minutes,atwhichpointitwillideallyneedaround30
minutestocooloff.

