User Guide

RS-LiDAR-32 User Manual
53

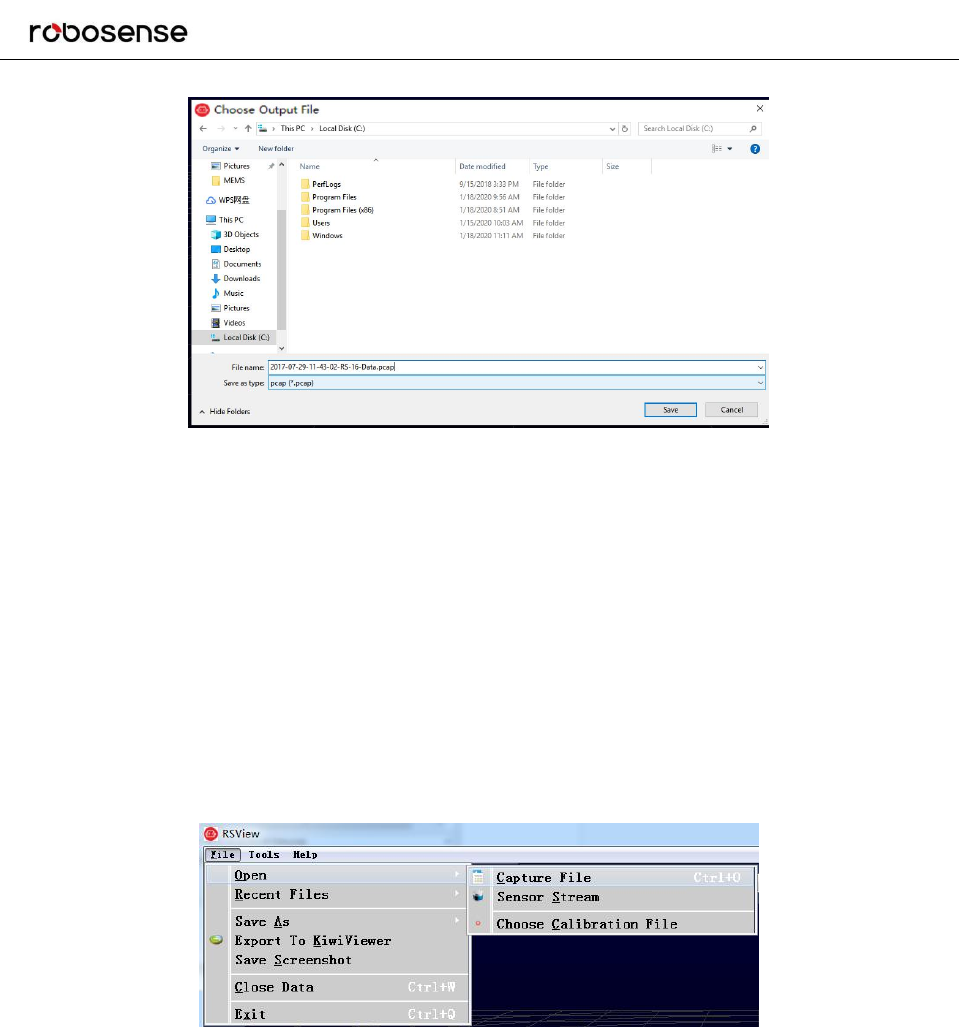

Figure C-5: RSView Record Saving Dialog.
3. Recording will continue until the Record button is clicked again, which stops the recording and
closes the pcap file.
C.6 Replay Captured Sensor Data from PCAP File
To replay (or examine) a pcap file, open it with RSView. You can press Play to let it run, or scrub through
the data frames with the Scrub slider. Select a set of 3D rendered data points with your mouse and
examine the numbers with a Spreadsheet sidebar.
1. Click on File > Open and select Capture File (Figure C-6).
Figure C-6: RSView Open Capture File.
