Zone A
Base Station
Zone
While the picture shows
two wires separate, they
should be adjacent
Distance between wires
greater than 1meter
so Robomow can effectively
navigate through in order
to move between the two areas
while mowing the lawn.
Base Station
Zone
Base Station
Distance greater
than 1meter
Zone A
Base Station
Zone
While the picture shows
two wires separate, they
should be adjacent
Distance between wires
greater than 1meter
so Robomow can effectively
navigate through in order
to move between the two areas
while mowing the lawn.
Base Station
Zone
Base Station
Distance greater
than 1meter
Base
Station
Base Station
Zone
Zone A
Perimeter
Switch
Base Station
Zone
Base
Station
Base Station
Zone
Zone A
Perimeter
Switch
Base Station
Zone

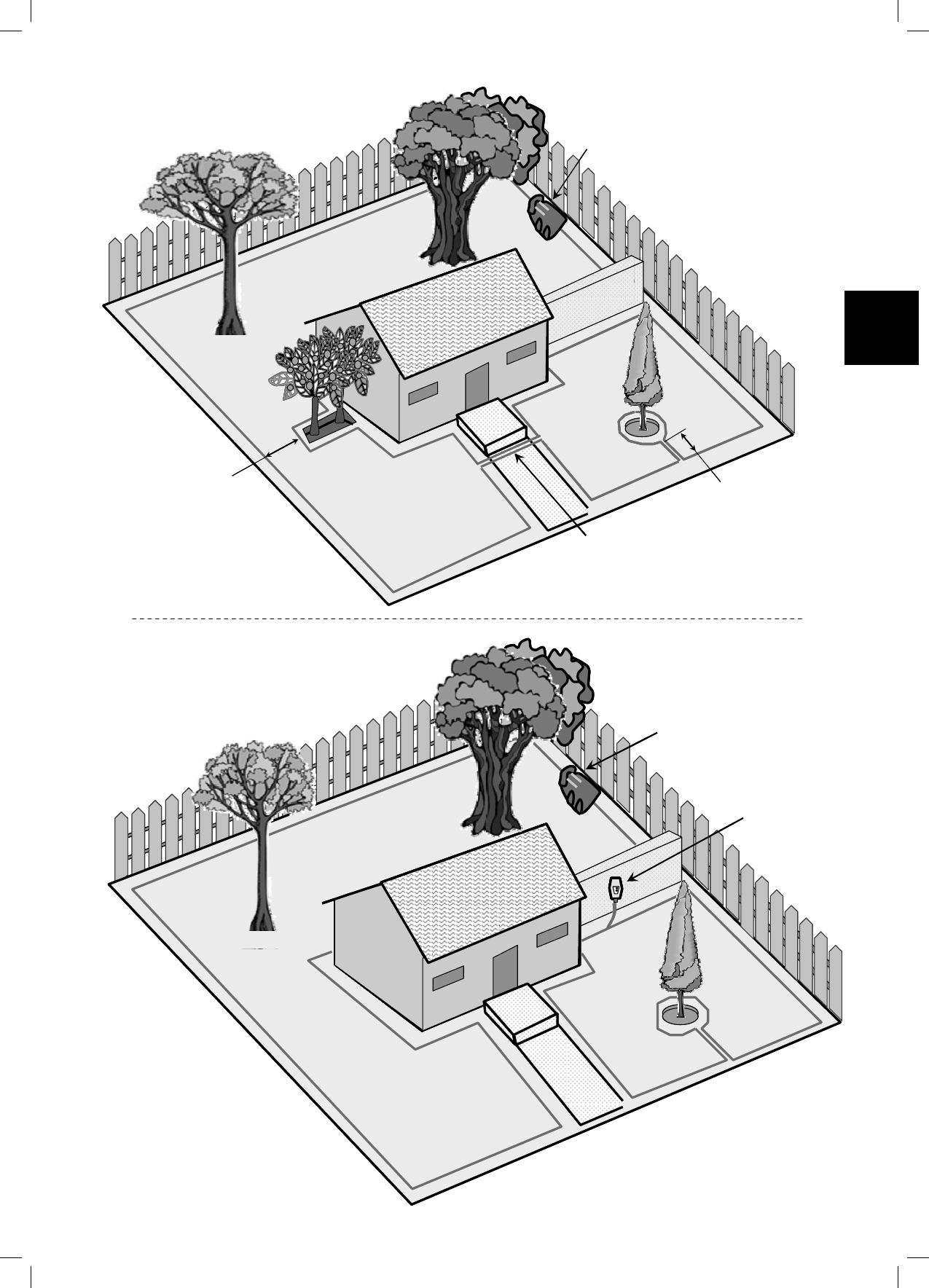

Figure 1.4 (Option A)
Three zones are looped
together and connected
to the Base Station
Figure 1.5 (Option B)
Separated zones, where grass
areas are not contiguous
