1.3 Programming the controller
In order to programm the controller you
must enter the settings menu.
1 2
Example:

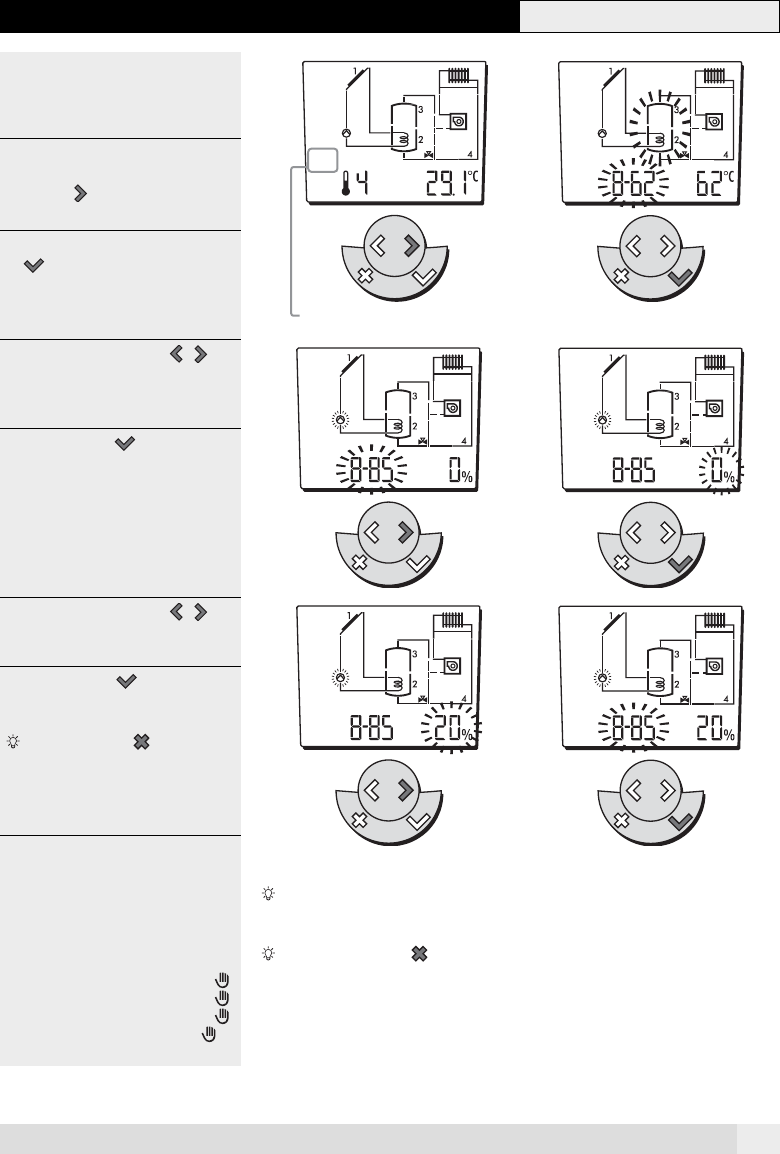

1. To enter the settings menu, press the
settings
key so often, until the
symbol appears.
2. To view the settings, press the enter
key. The first setting and its
function flashing on the display.
3. By pressing the settings
keys, the various settings can by
viewed in succession.
3 4
4. Press the enter key to stay on to
the appropriate sub menu of the
value you wish to change.
5. By pressing the settings
keys the value of setting can be
changed.
5 6
6. Press the enter key to save the
changed value.
Press the cancel key once and
the controller reverts to the previous sub
menu, press once more and it exits the
menu.
The following adjusters are shown:
8-56
8-62
8-63
8-56
8-62
8-63
8-85
8-85
8-86
8-87
Priority tank1
Set temperature tank 1, normal
Diferentials for temperature tank 1
Priority tank 2
Set temperature tank 2, normal
Diferentials for temperature tank 2
Setting value collector pump 1 ( )
Setting value collector pump 2 ( )
Setting value circulation pump ( )
Setting value diverter valve ( )
After 2 minutes without a being entered the controller reverts back to its actual
operating mode.
Pressing the cancel key anable you to exit the settings menu. The controller
reverts to its actual operating mode and settings.
