M2 Transmitter Operator’s Manual 10
Internal Description
This section describes the internal components of the M2. The internal components of the
M2 include the terminal PCB which provides for all the wiring connections to the M2 and
the control PCB which displays the gas reading and has the control buttons.

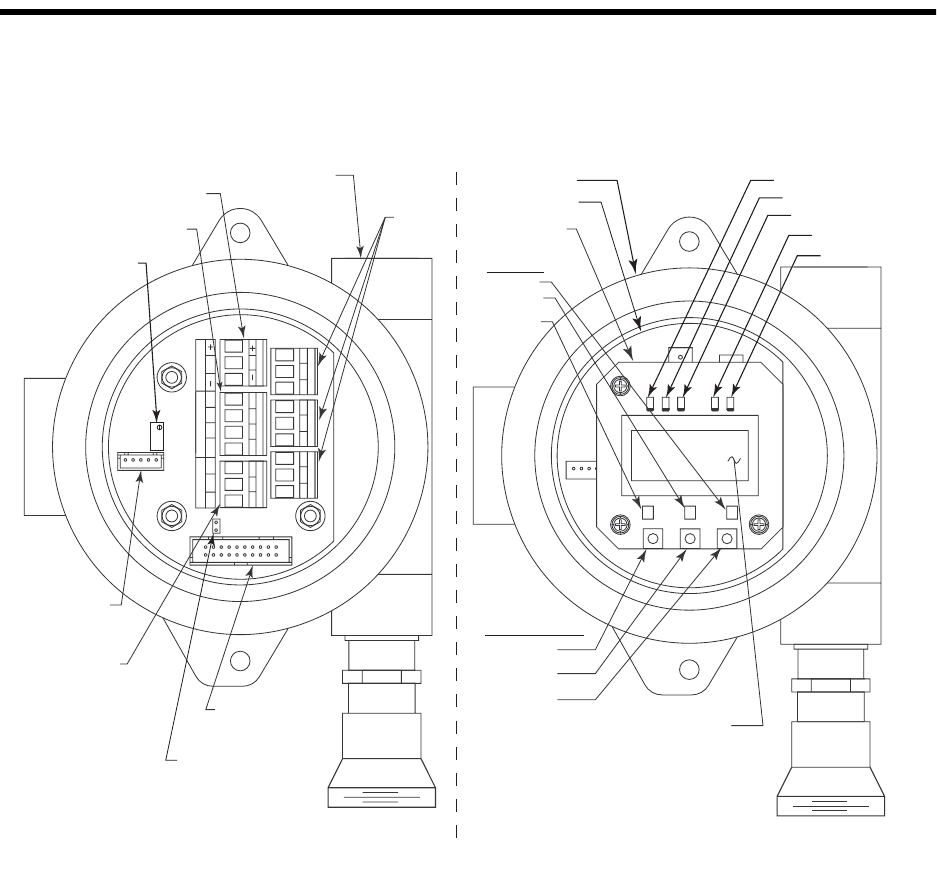

Figure 9: M2 Internal Components
Terminal PCB
The terminal PCB is encapsulated in epoxy for protection against moisture and physical
damage. It is mounted into the rear of the junction box with three standoffs and rests on a
thin layer of foam. A banana jack is screwed into each of the standoffs and used for
mounting the control PCB. The terminal PCB converts the electrical output from the
detector to a signal which can be displayed by the LCD display, a 4 - 20 mA signal (that is
proportional to the detection range), and an RS-485 Modbus output signal. The 4 - 20 mA
signal may be used by a recording device, gas monitor controller, or programmable
controller. The Modbus output may be used to connect the M2 to a Modbus network. The
terminal PCB also controls three relays, one fail and two gas alarm relays.
Two columns of plug-in style terminal strips are used to make all wiring connections to
the M2. The column on the left consists of the power/signal, detector, and Modbus
terminal strips. The column on the right consists of the relay terminal strips. A 20 position
C NC NO C NC NO C NC NO
ALARM 2 ALARM 1 FAIL
A B C
A B C
RS 485
RS 485
PWR/SIG
PWR/SIG
LEL
LEL
S S
RKI INSTRUMENTS
M2 TRANSMITTER
Control PCB
Push Button
Control Switches
UP/YES
DOWN/NO
UP/YES
DOWN/NO
ENTER
ENTER
Junction Box
Magnetic
Switches
LCD Display
Relay
Terminal
Strips
3/4" NPT Conduit Opening
For Wire Entry
Power/Signal
Terminal Strip
Detector Terminal Strip
(Comb/CO
2
Version Shown)
Modbus
Terminal Strip
Programming
Connector
(Factory Use)
Display Ribbon
Cable Connector
R W G B
R W G B
View with Cover Removed
View With Cover and Control
PCB Removed
Terminal PCB
Termination
Jumper
Fail LED
Alarm 1 LED
Alarm 2 LED
RX LED
TX LED
D
etector Current Pot
(
Comb/CO
2
Type Only,
F
actory Adjust)
