8 • 65-2484RK-06 Multi Point Detector

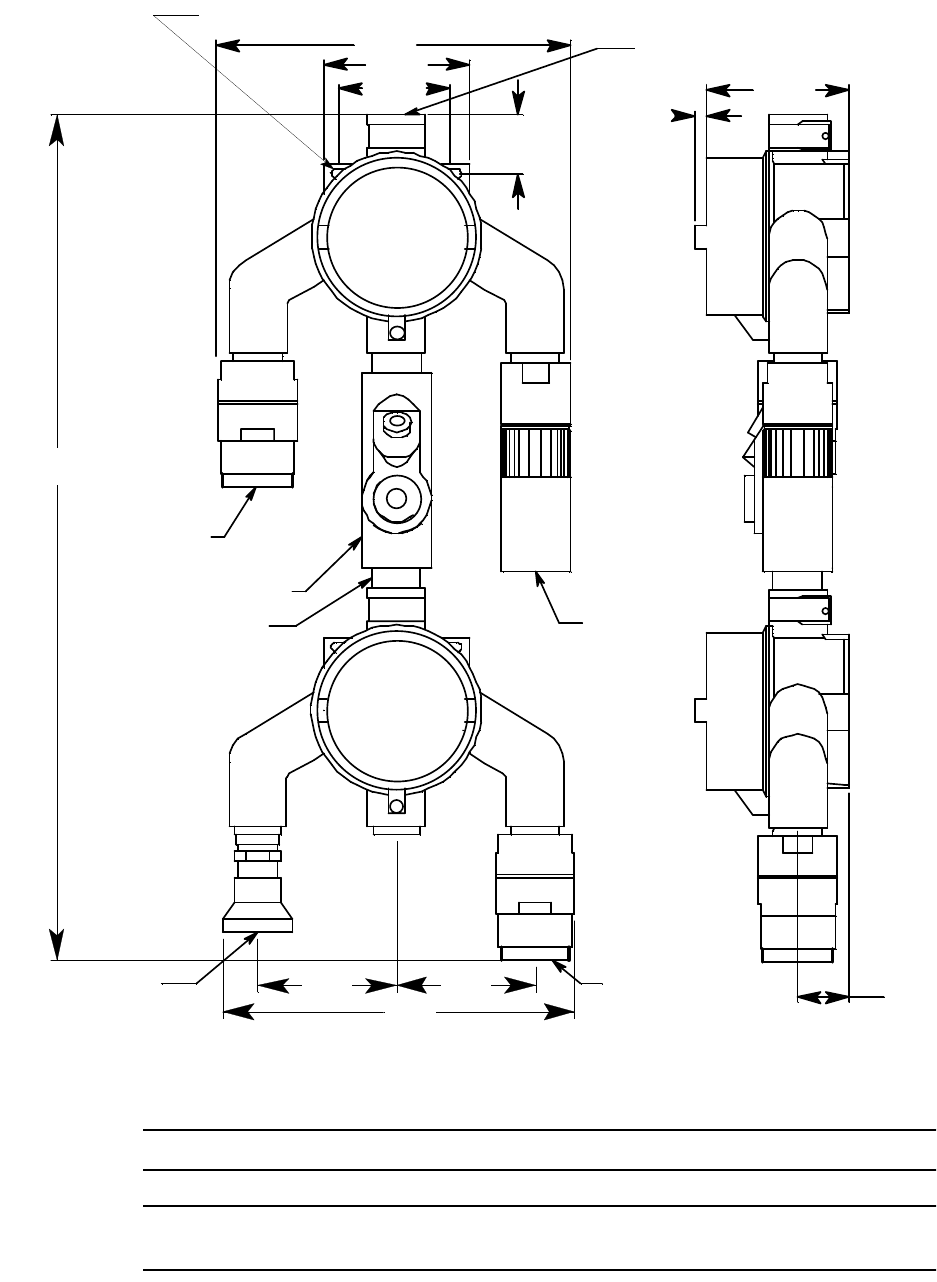

Figure 5: Outline & Mounting Dimensions 65-2484RK-06

2. At the mounting site you select, use #10 screws to mount the detector to a vertical

surface.

CAUTION: Mount the multi-point detector with the detectors facing down (see Figures 5).

NOTE: If your application does not require a specific mounting site, mount the detector

at approximately breathing level.

3/4 NPT Hubs (4X)

3.11

.25

Oxygen Detector

SO2 Detector

1.1

Sealed Wire Conduit

3.0

2.40

.20 DIA X .45 Slot, (2X), mounting

19.0 Max.

7.6

7.50

3.0

1.25

3.15

H2S Detector

LEL Detector

3/4" NPT Nipple (2X)
