Instruction manual

IMS01J04-E2 1
1. OUTLINE
This manual describes the communication function of the SR Mini HG SYSTEM and the OMRON
programmable controller (hereafter called PLC).
This manual is attached when the model code of H-PCP-J module is H-PCP-J--D
-03E.
For details of the H-PCP-J module, see the Power Supply/CPU Module H-PCP-J
Instruction Manual (IMS01J02-E).
This manual should be used in conjunction with Hardware Quick Manual (IMS01V01-E).
The SR Mini HG SYSTEM can be connected to the OMRON SYSMAC series without using any
program.
The SR Mini HG SYSTEM occupies the fixed area in the PLC data memory for each unit address.
The control unit for SR Mini HG SYSTEM consists of the H-PCP-J module and temperature control
function modules.
In addition, the SR Mini HG SYSTEM can be monitored only current transformer (CT) input.
For the data, see the 8. CURRENT TRANSFORMER (CT) MONITOR (P. 31).

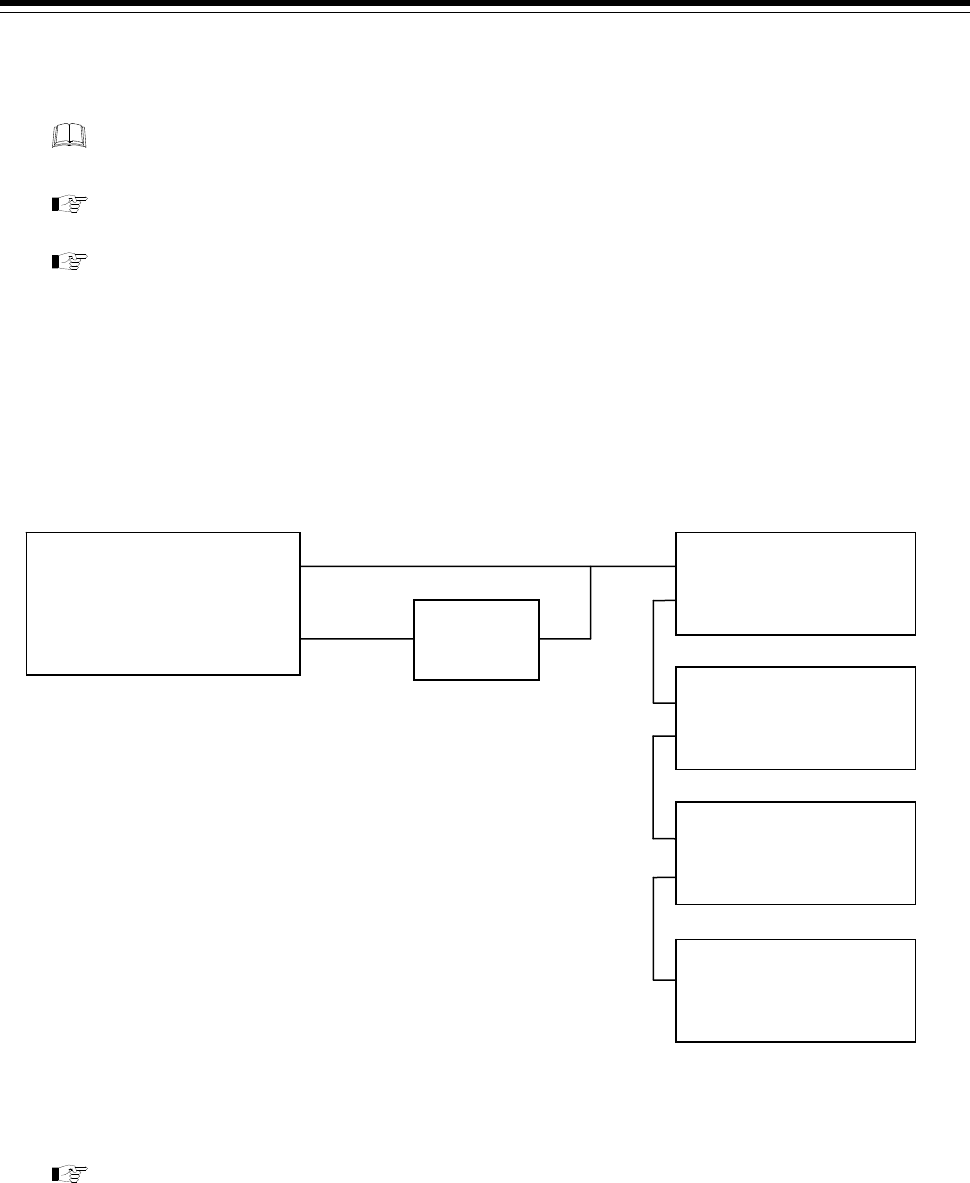

RS-422A
RS-422A
RS-422A
RS-422A
o
r
RS-232C
(Up to 4 units)
Converter
SR Mini HG SYSTEM
control unit
SR Mini HG SYSTEM
control unit
SR Mini HG SYSTEM
control unit
SR Mini HG SYSTEM
control unit
PLC
OMRON
SYSMAC series
