8. CURRENT TRANSFORMER (CT) MONITOR
IMS01J04-E2
32

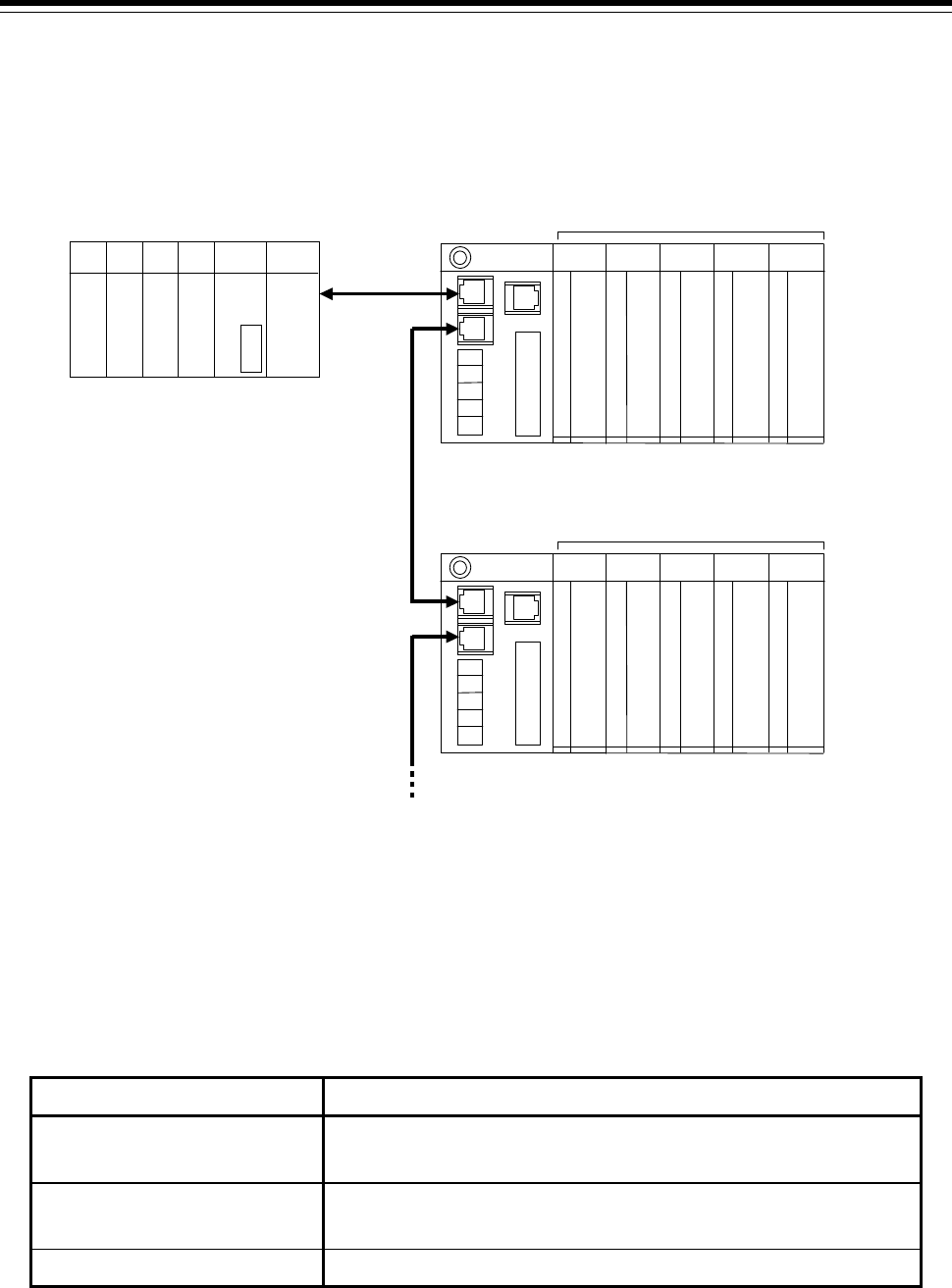

 Current transformer (CT) monitor dedicated system configuration
H-CT-A module
(10 modules max.)
H-PCP-J
module
PLC
OMRON SYSMAC series
RS-422A
H-CT-A module
(10 modules max.)
H-PCP-J
module
Up to 16 control units per communication port of PLC
RS-422A
SR Mini HG SYSTEM control unit
SR Mini HG SYSTEM control unit
RS-422A
Maximum number of H-CT-A modules that can be connected to one control unit:
10 modules/control unit
Maximum number of control units that can be connected to one communication port
of PLC:
16 control units/communication port of PLC
 Usable units (OMRON SYSMAC series)
Name Type
High-order link unit C200H-LK202-V1, C500-LK203, C120-LK202-V1
(SYSMAC C series), etc.
CPU unit with a built in
communication port
CPU unit of SYSMAC CS1 series
Serial communication board CS1W-SCB41 (SYSMAC CS1 series), etc.
