3. CONNECTIONS
IMS01J04-E2
5

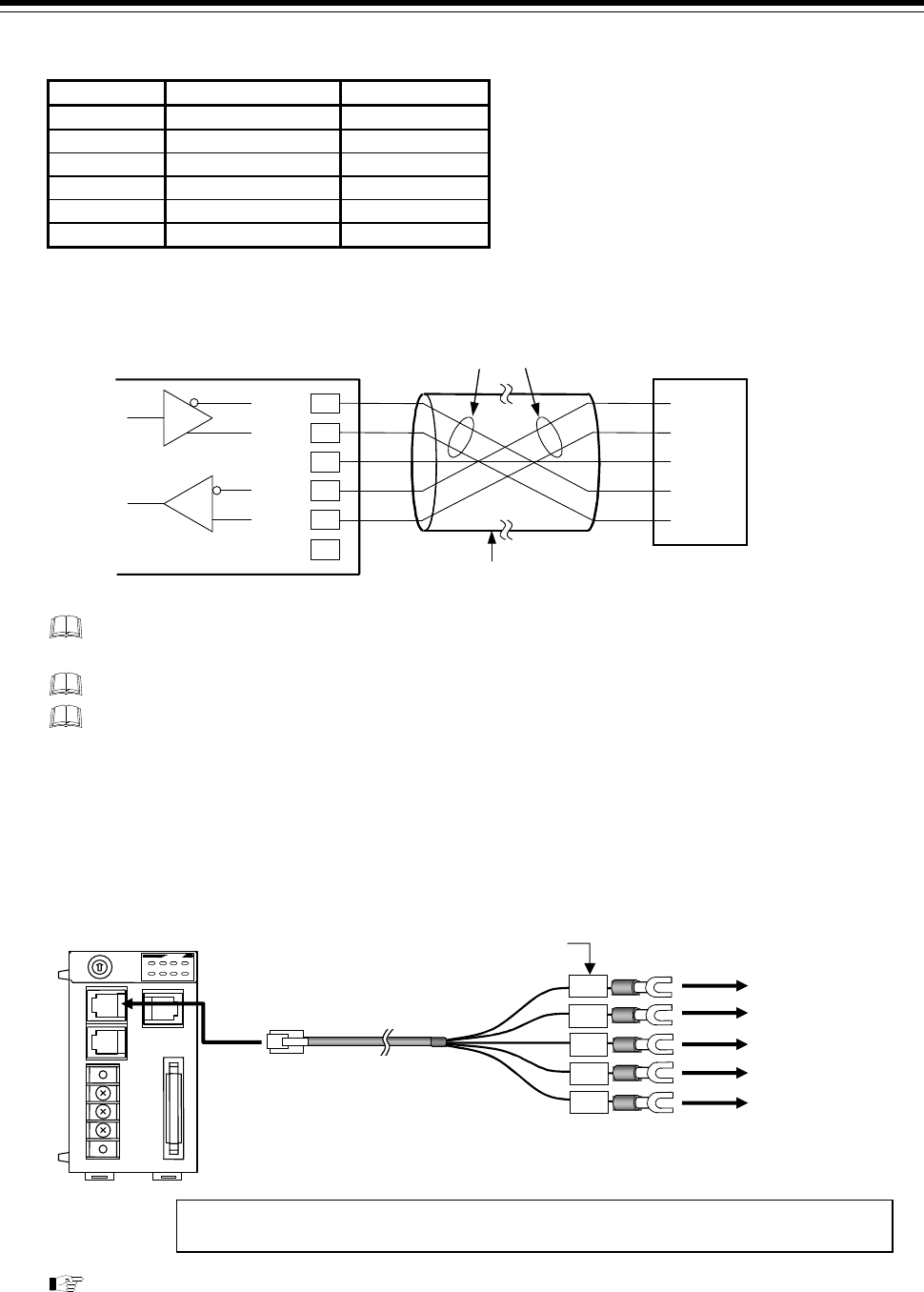

 Connector pin number and signal details (RS-422A)
Pin No. Signal name Symbol
1 Receive data R (A)
2 Receive data R (B)
3 Signal ground SG
4 Send data T (B)
5 Send
d
ata T (A)
6 Signal ground SG
 Diagram of RS-422A wiring
5
1
3
4
2
Shielded twisted pair wire
Pair wire
PLC
OMRON
SYSMAC series
T (A)
T (B)
SG
R (A)
R (B)
SG
SDA
SDB
SG
RDA
RDB
H-PCP-J
6
The 6-pin type modular connector should be used for the connection to the H-PCP-J module.
Recommended model: TM4P-66P (Manufactured by HIROSE ELECTRIC CO., LTD.,)
Because there is not SG, in case of SYSMAC CS1 series, electric wiring is unnecessary.
Customer is requested to prepare a communication cable fit for the control unit to be
connected by the PLC.
 Connection using our cable
Connection cable W-BF-01 * (RKC product) can be used to connect the PLC. If noise is a factor,
customer should use a twisted pair cable (not included) or something to that effect.
* Shields of the cable are connected to SG (No. 6 pin) of the H-PCP-J connector.
The details of the connectable connector for the PLC please also read the instruction manual
for the used PLC.
Label symbol
When wiring is to be made with W-BF-01 cable, connect as instructed in the above picture.
(Just use the label symbol for leadwire identification and ignore the contents.)
RS-422A
Connect to the
COM. PORT1
PLC
OMRON
SYSMAC series
SG
SDA
SDB
RDA
RDB
W-BF-01
White
Black
Blue
Red
Orange
T (A)
SG
T (B)
R (A)
R (B)
Cable type: W-BF-01-3000 (RKC product, Sold separately)
[Standard cable length: 3 m]
H-PCP-J
()
(+)
()
(+)
