Instructions / Assembly

TF2089904-KK-00 Eng Page 6 of 22 20150422 V.1
LP Tank Removal, Transport and Storage
 Turn OFF all control knobs and LP tank valve. Turn coupling nut counterclockwise by hand
only – do not use tools to disconnect. Place dust cap on cylinder
valve outlet whenever the cylinder is not in use. Only install the
type of dust cap on the cylinder valve outlet that is provided with
the cylinder valve. Other types of caps or plugs may result in
leakage of propane.

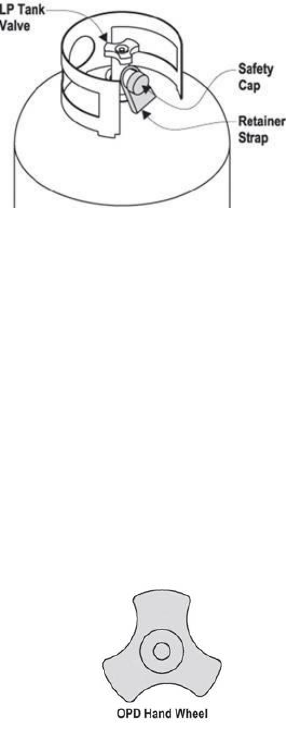

 A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle which may become
overheated by the sun.
 Do not store LP tanks in an area where children play.
LP Tank
The LP tank used with your appliance must meet the following requirements:
 Purchase LP tanks only with these required measurements: 12” (30.5cm) (diameter) x 18”
(45.7cm) (tall) with 20lb. (9kg). Capacity maximum.
 The LP-gas supply cylinder to be used must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the US Department of Transportation (DOT)
or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for
the Transportation of Dangerous Goods.
LP tank valve must have:
 Type 1 outlet compatible with regulator or appliance.
 Safety relief valve.
 UL listed Overfill Protection Device (OPD). This OPD safety feature is
identified by a unique triangular hand wheel. Use only tanks equipped
with this type of valve.
LP tank must be arranged for vapor withdrawal and include collar to protect
LP tank valve.
LP (Liquefied Petroleum Gas)
 LP gas is non toxic, odorless and colorless when produced. For your safety, LP gas has
been an odor (similar to rotten cabbage) so that it can be smelled.
 LP gas is highly flammable and may ignite unexpectedly when mixed with air.
LP Tank Filling
 Use only licensed and experienced dealers.
 LP dealer must purge tanks before filling.
 Dealer should NEVER fill LP tank more than 80% of LP tank volume. Volume of propane in
tanks will vary by temperature.
 A frosty regulator indicates gas overfill. Immediately close LP tank valve and call LP gas
dealer for assistance.
 Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.
 To remove gas from LP tank, contact an LP dealer or call a local fire department for
assistance. Check the telephone directory under” GAS Companies” for nearest certified PL
dealers.
LP Tank Exchange
 Many retailers that sell appliances offer you the option of replacing your empty LP tanks
through an exchange service, Use only those reputable exchange companies that inspect,
precision fill, test and certify their cylinders. Exchange your tank only for an OPD safety
feature-equipped tanks as described in the “LP Tank” section of this manual.
 Always keep new and exchanged LP tanks in upright position during use, transit or
