Rinnai New Zealand Ltd. RDV36 Heat Transfer Kit Installaon 11700-E 05-11
7
Fing the spigot plate
1. Remove the cover panel(s) on the side of the heater and discard. The position of the cover
panel will dier according to the model installed.
Rinnai Symmetry DV3610: top of unit (as pictured below)
Rinnai Symmetry DV3600: bottom of unit
2. Fit the heat transfer spigot adaptor(s) to the side of the replace with the screws removed
from the cover panel, do not over tighten. When positioned correctly it will be mounted at
an angle. For through-oor installations, reverse position of spigot adaptor.
3. Fit the spigot plate(s) to the spigot adaptor with screws provided in the fastener pack.
Do not over tighten.

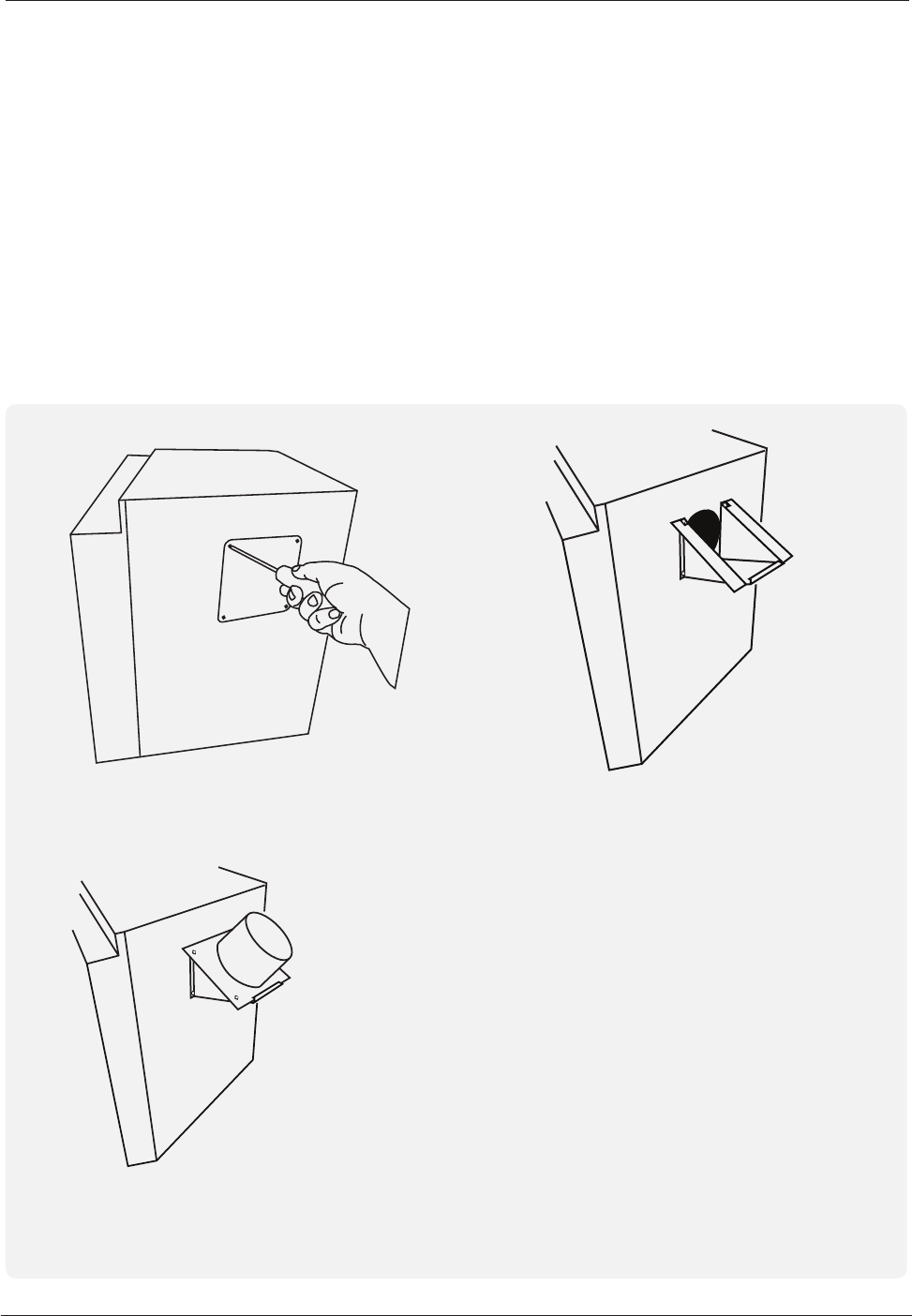

Remove cover panels and discard. Fit spigot adaptor.
Fit spigot plate to adaptor.
