Chapter 1 Quick Start RIGOL
DP800 User’s Guide 1-21
Installation Procedures
CAUTION
Only authorized personnel can perform the installation. Improper
operation might cause damage to the instrument or incorrect installation
of the instrument onto the rack.

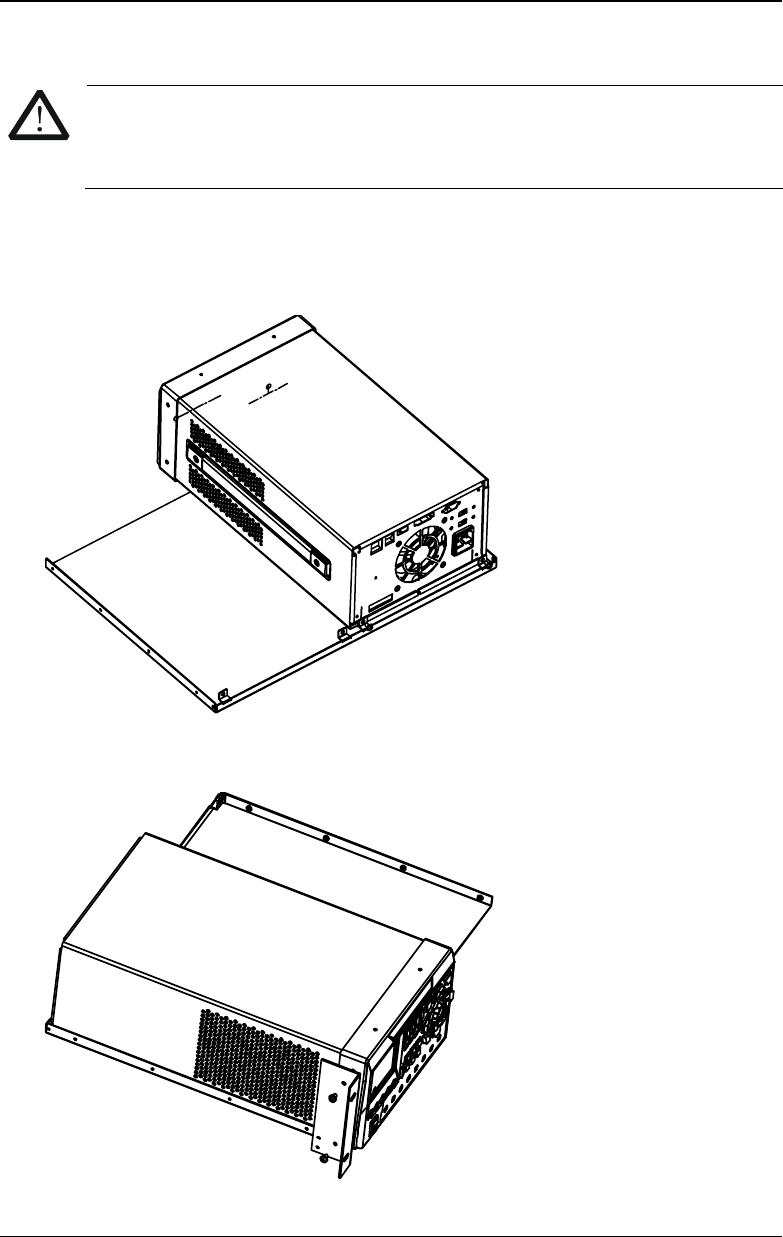

1. Remove the four rubber bumpers on the front and rear panels of the instrument
respectively.
2. Fix the instrument onto the rack support shelf using two M4 screws.
3. Fix the left fixing part to the left side of the front panel of the instrument using
two M4 screws.
