RIGOL Chapter 1 Quick Start
1-20 DP800 User’s Guide
⑦ ⑧ ⑨
(b)

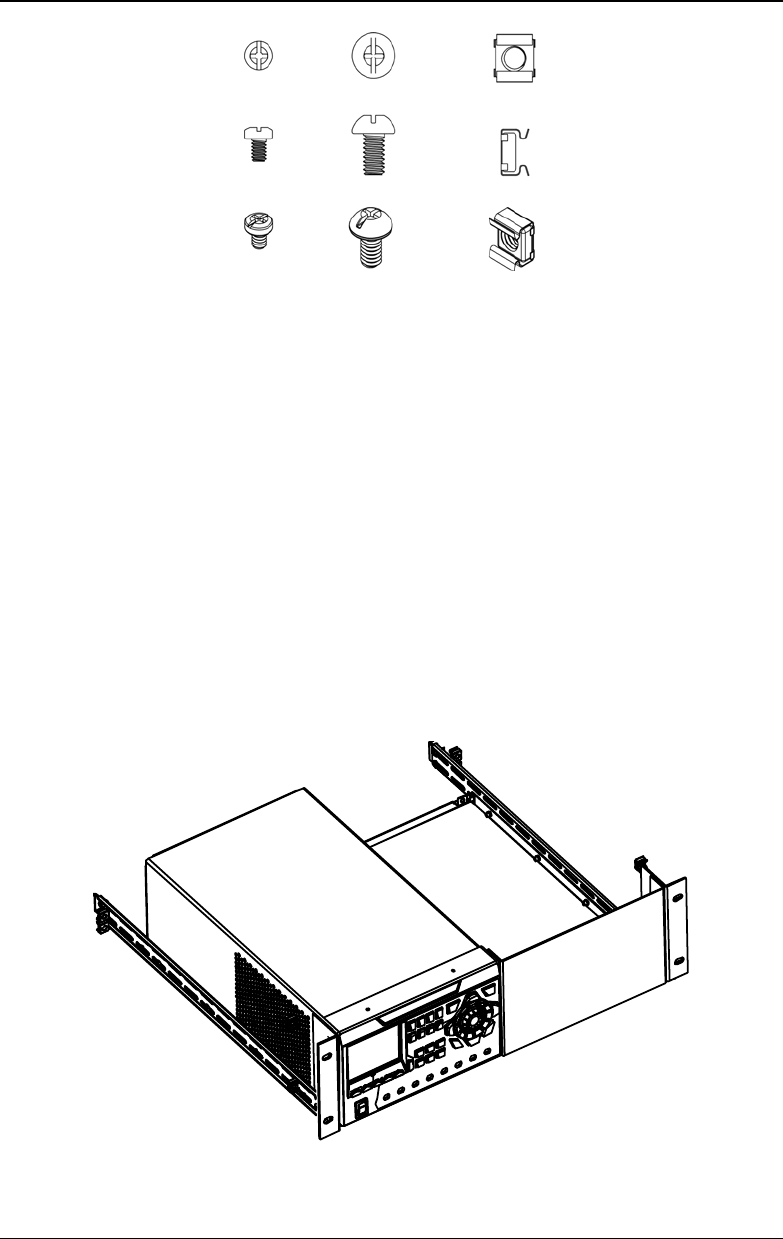

Figure 1-7 Rack Mount Kit (RM-1-DP800) Parts
Installation Tool
PH2 Phillips screwdriver is recommended.
Installation Space
The machine cabinet should fulfill the following requirements.
It should be a standard 19 inch machine cabinet;
At least 4U (177.8 mm) space should be provided by the machine cabinet;
The depth inside the machine cabinet should not be less than 463.75mm.
The rack-mounted instrument is as shown in the figure below.
