Chapter 1 Quick Start RIGOL
DP800 User’s Guide 1-19

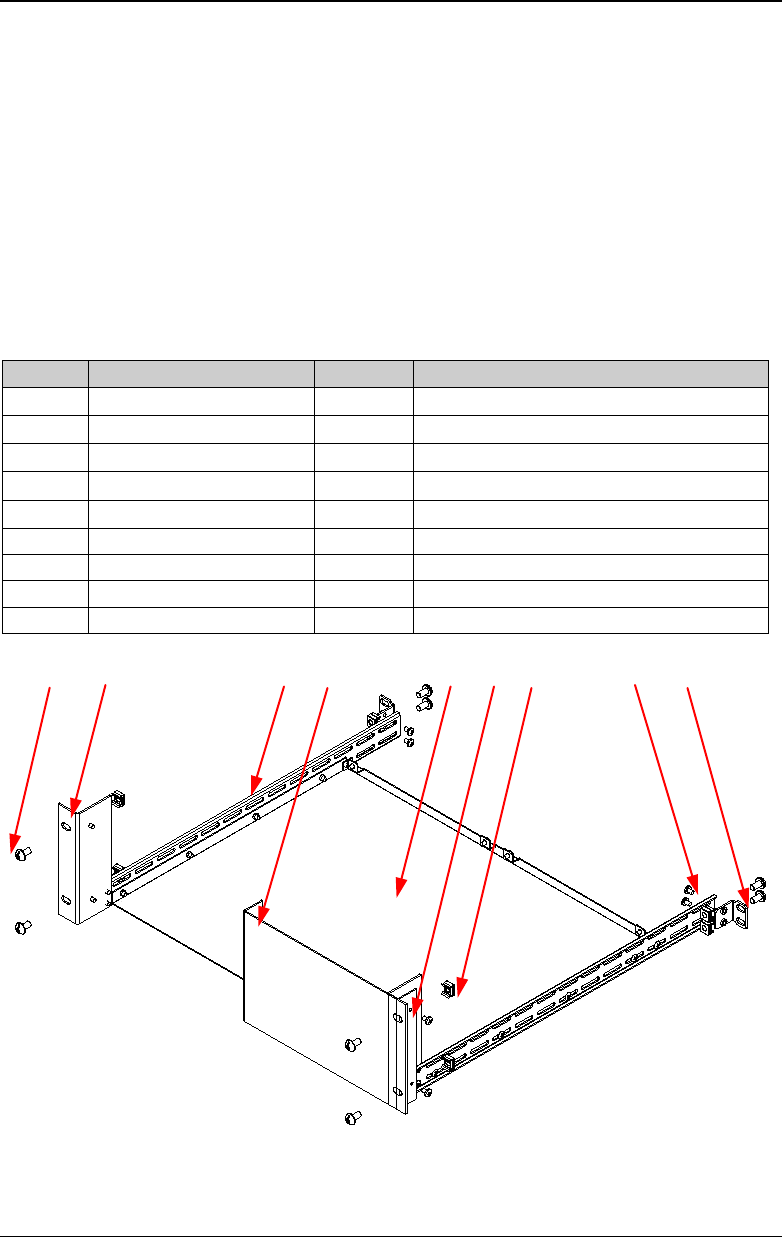

To Rack Mount the Instrument
If you want to install the instrument into a standard 19 inch machine cabinet, please
order the rack mount kit (RM-1-DP800 or RM-2-DP800; the former is used to install a
single instrument and the latter is used to install two instruments) and install the
instrument according to the instructions below.
To Install a Single Instrument
Part List
Table 1-5 Rack mount kit (RM-1-DP800) part list
No.
Name
Qty.
Description
①
Rack Support Shelf
1
②
Front Filler Panel
1
③
Rack Left Fixing Part
1
④
Rack Right Fixing Part
1
⑤
Rack Rail
2
⑥
Side Beam Fixing Part
2
⑦
M4 Screw
26
M4×6 Phil-Slot Pan Head Screw
⑧
M6 Screw
8
M6×16 Phil-Slot Pan Head Screw
⑨
M6 Screw
8
M6×5 Lock Blade Square Nut
(a)
⑧
③
⑤
②
①
④
⑨
⑦
⑥
