Chapter 1 Quick Start RIGOL
DP800 User’s Guide 1-17

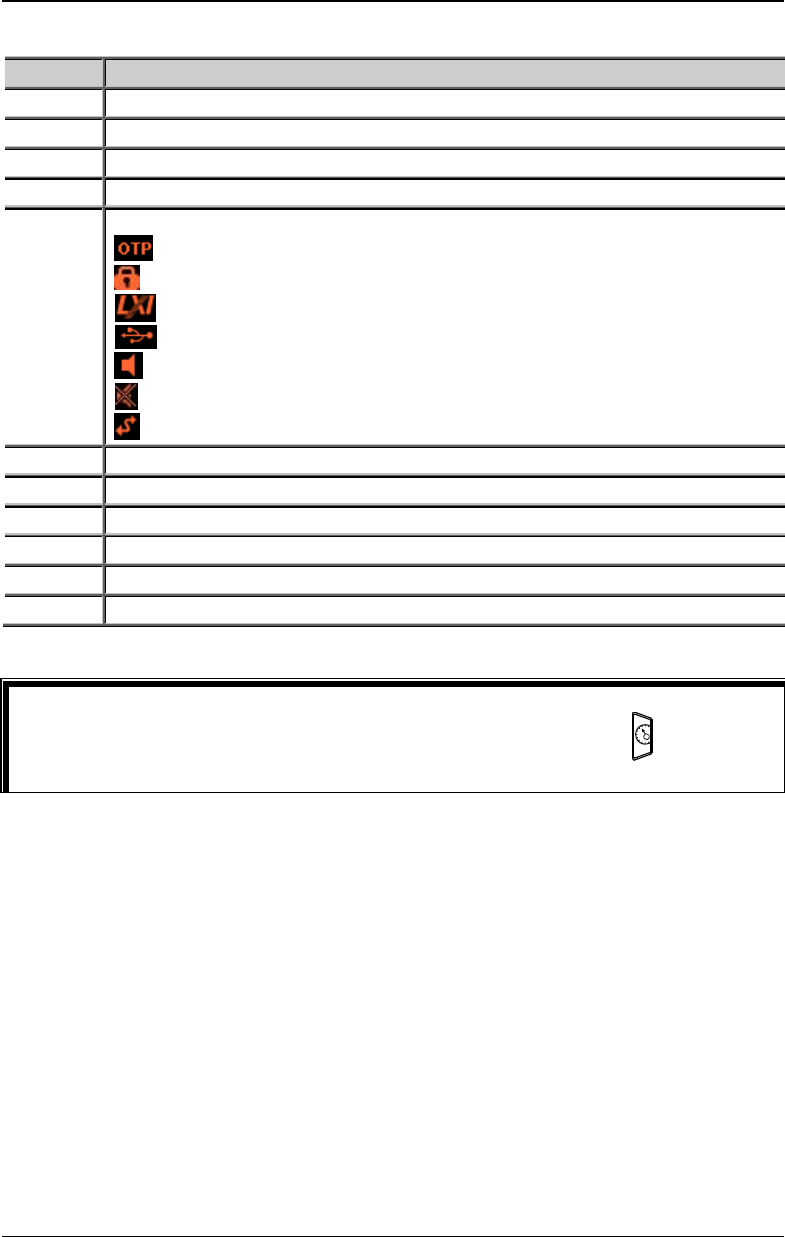

Table 1-4 User Interface Explanation
No.
Explanation
1
Channel number
2
Channel output voltage/current
3
Channel output status
4
Channel output mode
5
Status bar. Display the system status labels.
: over-temperature protection is enabled
: the front panel is locked.
: the network is connected.
: USB device is recognized.
: the beeper is enabled.
: the beeper is disabled.
: the instrument is in remote mode.
6
Actual output voltage
7
Actual output current
8
Actual output power
9
Voltage and current setting values
10
Overvoltage and overcurrent protection setting values
11
Menu bar
Tip
When the current display mode is "Normal" or "Waveform", press at the front
panel to quickly switch between the current display mode and dial display mode.
