RIGOL Chapter 3 Remote Control
3-4 DP800 User’s Guide
3. Search for device resource
Start up Ultra Sigma and the software will automatically search for the
instrument resource currently connected to the PC via the USB interface. You
can also click
to search for the resource.

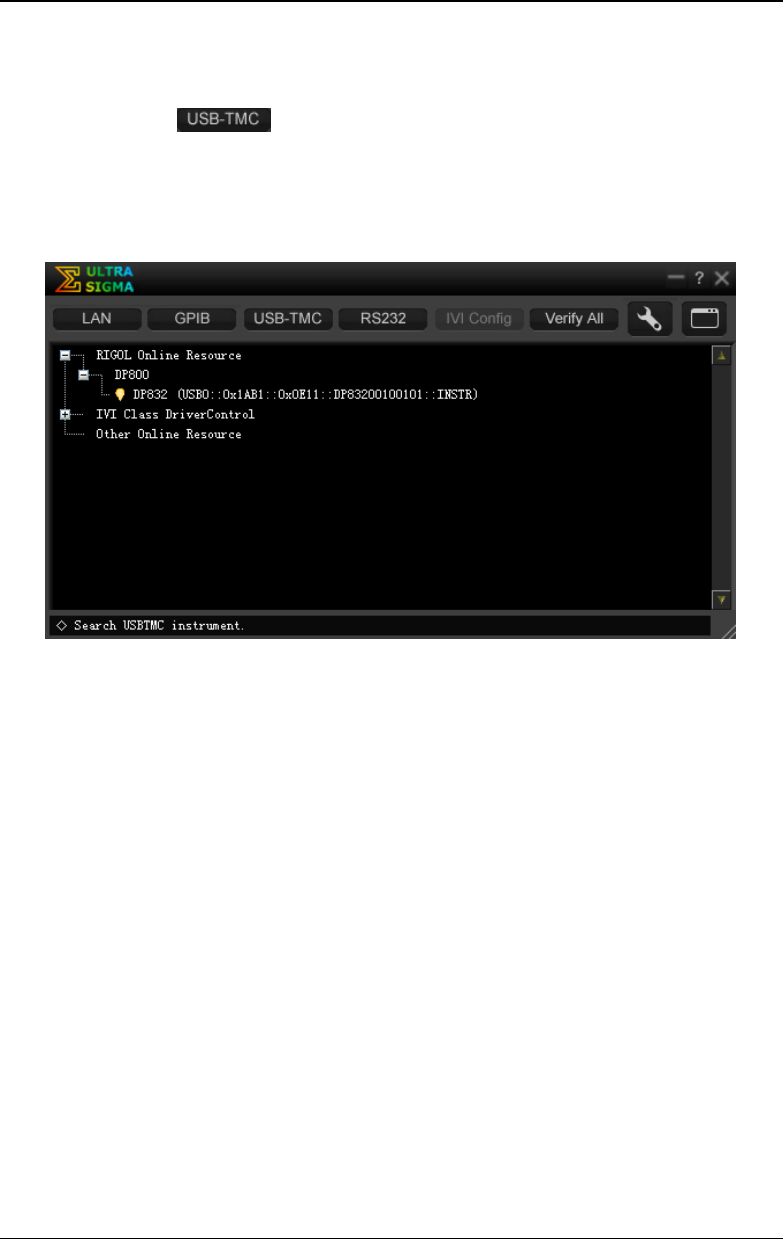

4. View the device resource
The resource found will appear under the "RIGOL Online Resource" directory
and the model number and USB interface information of the instrument will also
be displayed as shown in the figure below.
5. Control the instrument remotely
Right click the resource name "DP832 (USB0::0x1AB1::0x0E11::
DP83200100101::INSTR)" and select "SCPI Panel Control" to turn on the remote
command control panel through which you can send commands and read data.
