RIGOL Chapter 1 Quick Start
1-6 DP700 User’s Guide
timing output. When you press
On/Off
again, the
system will start to make output from the first group of
parameters.
4. Power Key
Turn on or off the instrument.

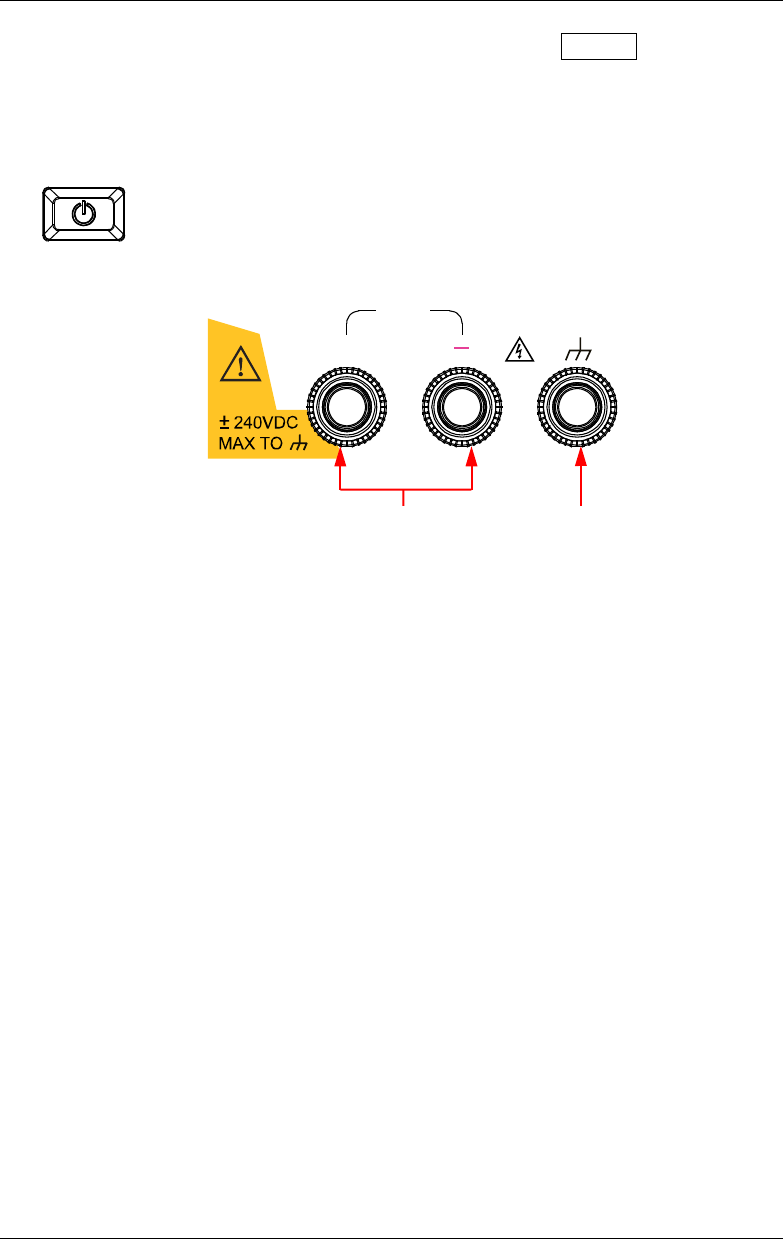

5. Output Terminals
+
30V/5A
(1) Channel output terminals: connect with the load, which are used to output
the voltage and current.
Note: Connect the positive terminal of the load with the (+) terminal of the
channel output and connect the negative terminal of the load with the (-)
terminal of the channel output.
(2) Ground terminal: connects with the instrument chassis and ground lead
(power cord ground terminal), which is in the grounded state.
Note: The voltage to ground of any channel output terminal (+ or -) cannot
exceed ±240 Vdc.
(1) (2)
