Owners manual

ADAPT | 8

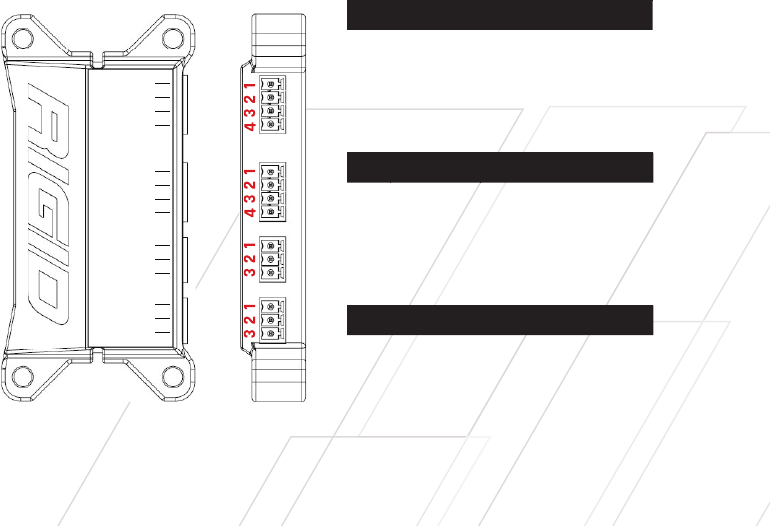

UNDER DASH MODULE WIRING
A
D
C
B
ACCESSORY SWITCH LIGHTS BT
1 2 3 4 1 2 3 4 1 2 3 1 2 3
A
ACCESSORY PLUG
PIN
WIRE
COLOR
DESCRIPTION
1 White Backlighting LED Trigger
2 Blue/White Projecting LED Trigger
3 Gray GPS
4 Red/White Ignition or Battery
B
DASH CONTROLLER
PIN
WIRE
COLOR
DESCRIPTION
1 Red 3.3V DC Power
2 Blue Receive
3 Yellow Transmit
4 Black Ground
C
LIGHT BAR
PIN
WIRE
COLOR
DESCRIPTION
1 Blue Relay Trigger
2 White Data
3 Black Ground
D
NEW FEATURES COMING SOON
