Owners manual

ADAPT | 6

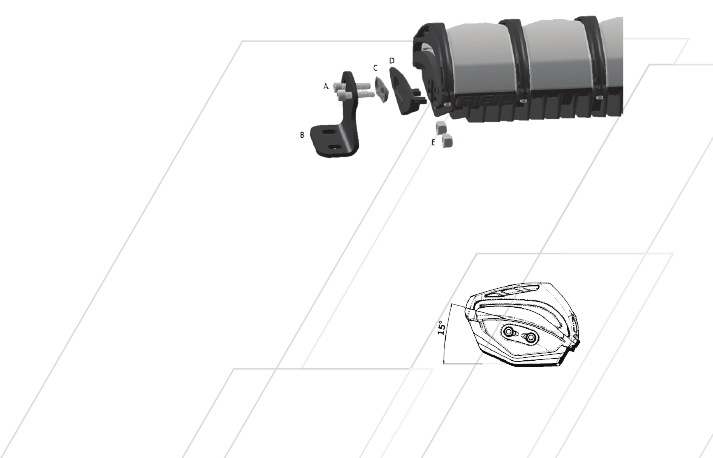

1. Remove the (2) factory installed
1
⁄4-20 x 1” Socket head bolts (A) from each side of light.
2. Install L-Bracket (B) mating against mount bushing (C) and re-install
1
⁄4-20 x 1” Socket head bolts.
3. Mount light to desired mount location using customer supplied hardware.
4. Once light is aimed into position tighten fasteners (A) to 75in lbs.
Note 1: End Cap (D) can be removed to gain access to 1 ⁄ 4-20 Nyloc nuts (E)
Note 2: Light housing is tilted 15º at nominal position. See reference image.
Additional mounting brackets available. Visit www.rigidindustries.com/adapt
MOUNTING
A 1/4-20 x 1” Socket Head Bolt
B
Black Powder Coated L-Shape Brackets
C
Mounting Bushing
D
End Cap
E
1/4-20 Nyloc Nut
