Installation Instructions

!
WARNING: The piezoelectric igniter should be replaced
by a qualified service technician. The appliance and the gas
valve may be hot: wait until the temperature has dropped be-
fore touching the appliance or the gas valve.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
TO TURN OFF GAS TO THE APPLIANCE:
1) Turn the control knob clockwise  to the OFF position.
2) Turn off gas supply at the appliance valve.
3) Remove the female cable connector from the male igniter
connection.

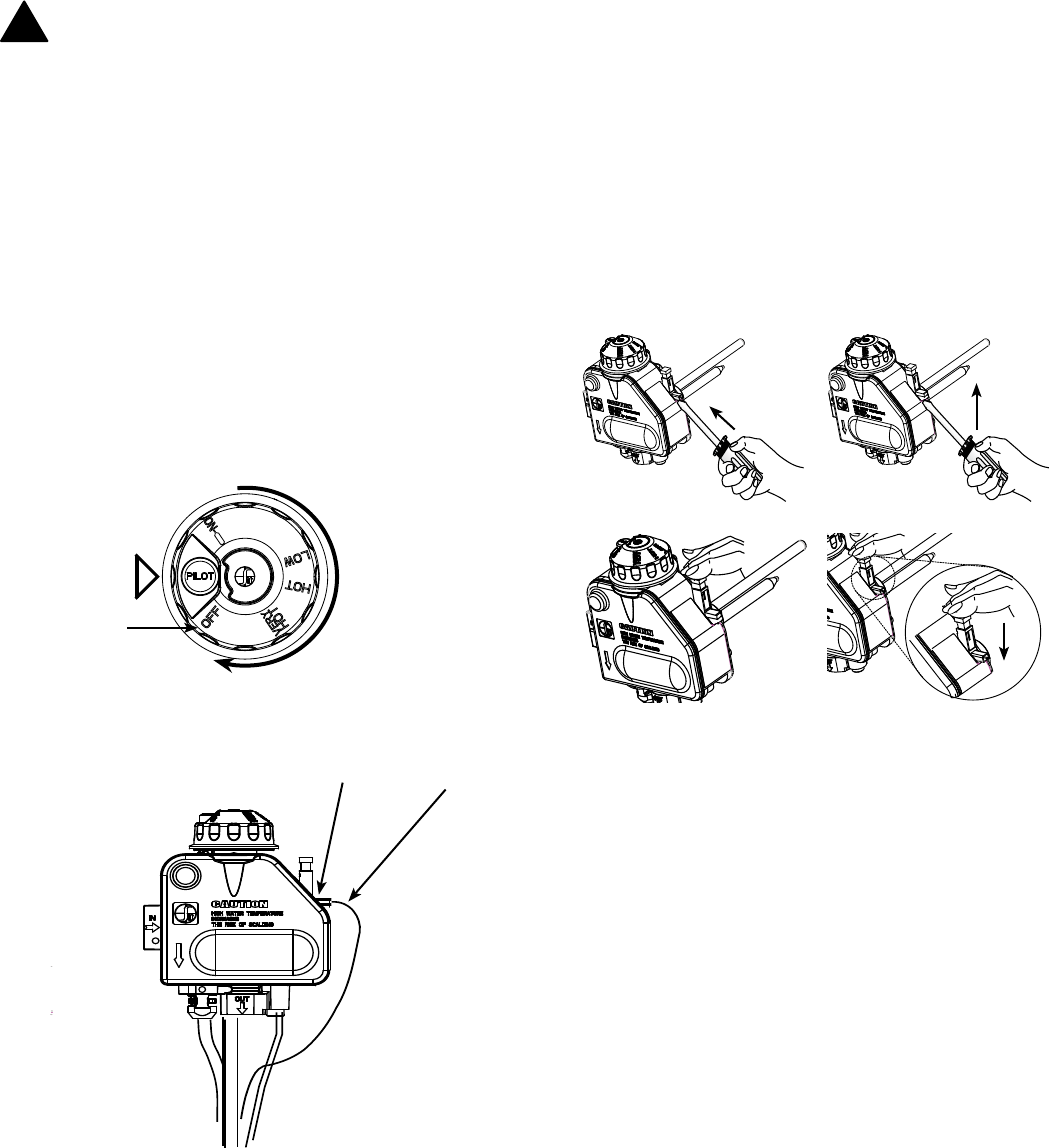

4) Remove the old igniter from the gas valve making lever
with the a flat screwdriver of appropriate size, as shown in
Figure 1 & 2. Discard the old igniter.
5) Position the new igniter into the seat of the gas valve, as
shown in Figure 3. Apply by hand a maximum force of
44 lbf (20Kgf) on the button of the igniter. The applied
force makes operating the igniter which will generate one
click and one spark in air. Continuing to apply the force,
a second click is made. The second click confirms full in-
sertion and the mechanical locking of the body of the new
igniter into its seat, as shown in Figure 4. Once inserted,
do not remove the igniter.
6) Reconnect the female connector to the male connector on
the new igniter.
7) Refer to lighting instructions to relight pilot and turn unit
on.
INSTALLATION INSTRUCTIONS
SIT Piezoelectric Igniter Replacement Kit
Read these instructions thoroughly and understand all steps and procedures before
proceeding with the installation.
AP16199 (04/11)
OFF
Male
Figure 1 Figure 2
Figure 3 Figure 4
Female
1
