INSTALLATION – SOLAR CONTROL UNIT
35
Notes:
All pipe work must be purged and cleared of foreign matter before connection and before attempting to
operate the water heater.
It is important to connect the solar cold and solar hot pipes to the correct connections at the solar
collector and at the solar storage tank.
Connect the solar pipes to the solar storage tank using only the fittings supplied.
All olive compression fittings must use brass or copper olives.
Use thread sealing tape or an approved thread sealant on all other fittings.

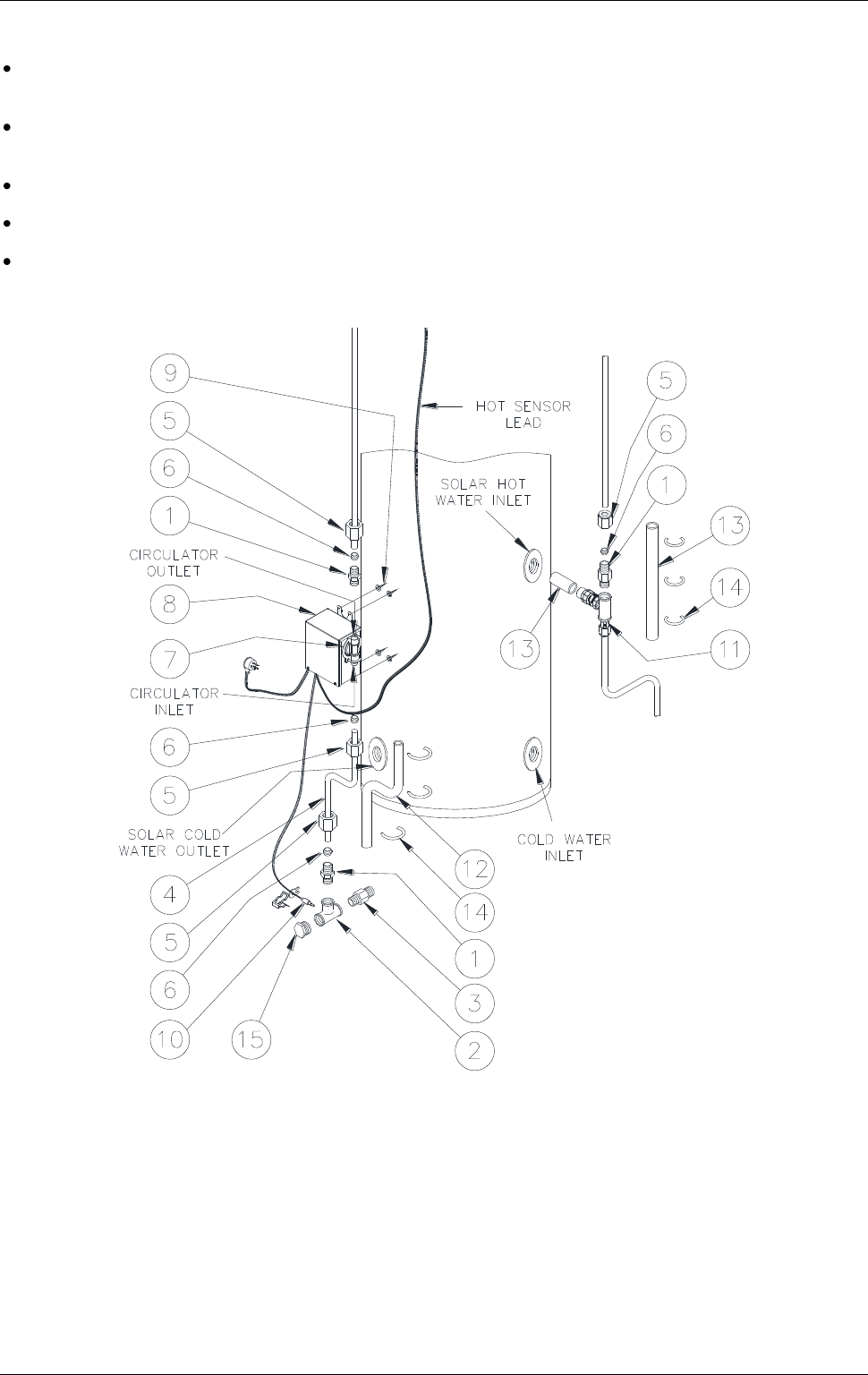

Solar Control Unit VS160
Installation (exploded view)
SUPPLIED WITH VS160 SOLAR STORAGE TANK
SUPPLIED WITH VS160 SOLAR STORAGE TANK
1. Hex nipple ½” X ½”
2. 4 way tee
3. Hex nipple ½” x ¾”
4. Preformed pipe DN15
5. Compression nut
6. Olive
7. Circulator
8. Solar control unit
9. Screws
10. Cold sensor probe
11. Air bleed valve and non return valve assembly
12. Insulation 280 mm long x 13 mm ID
13. Insulation 150 mm long x 35 mm ID &
50 mm long x 35 mm ID
14. Cable tie
15. Plug ½”
