INSTALLATION – SOLAR STORAGE TANK
31

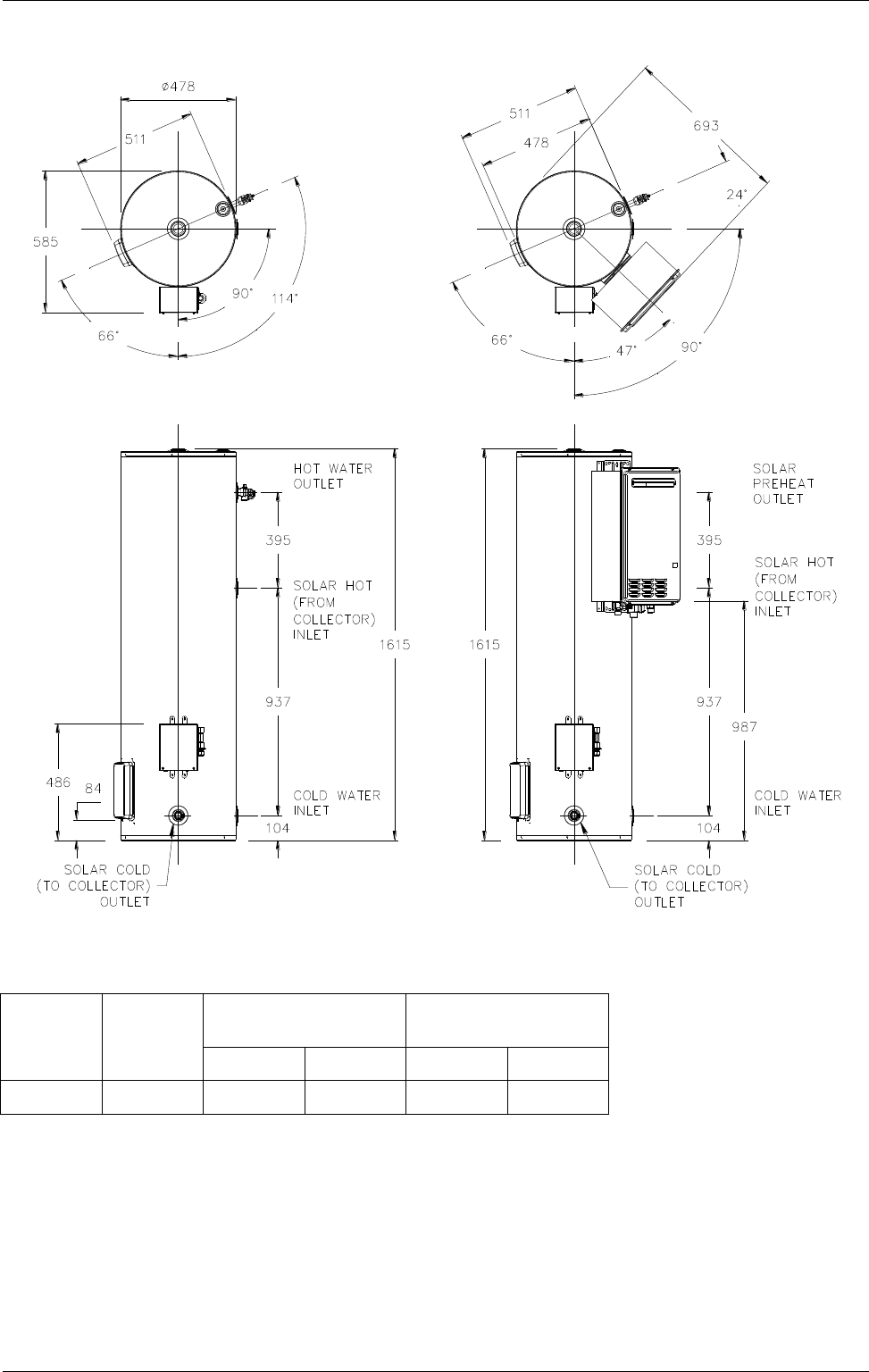

DIMENSIONS AND TECHNICAL DATA
storage tank only (remote boost) storage tank with integrated boost
Model
Capacity
Tank Mass (kg)
(without booster)
Tank Mass (kg)
(with booster)
Empty
Full
Empty
Full
511 160
165 litres
52
217
73
239
Technical data is subject to change.
