OPERATIONS
Using Position
350-7951 Quadra User’s Guide 45
. . . . .
4. Request help text for the POSition command. Type:
H POS Enter

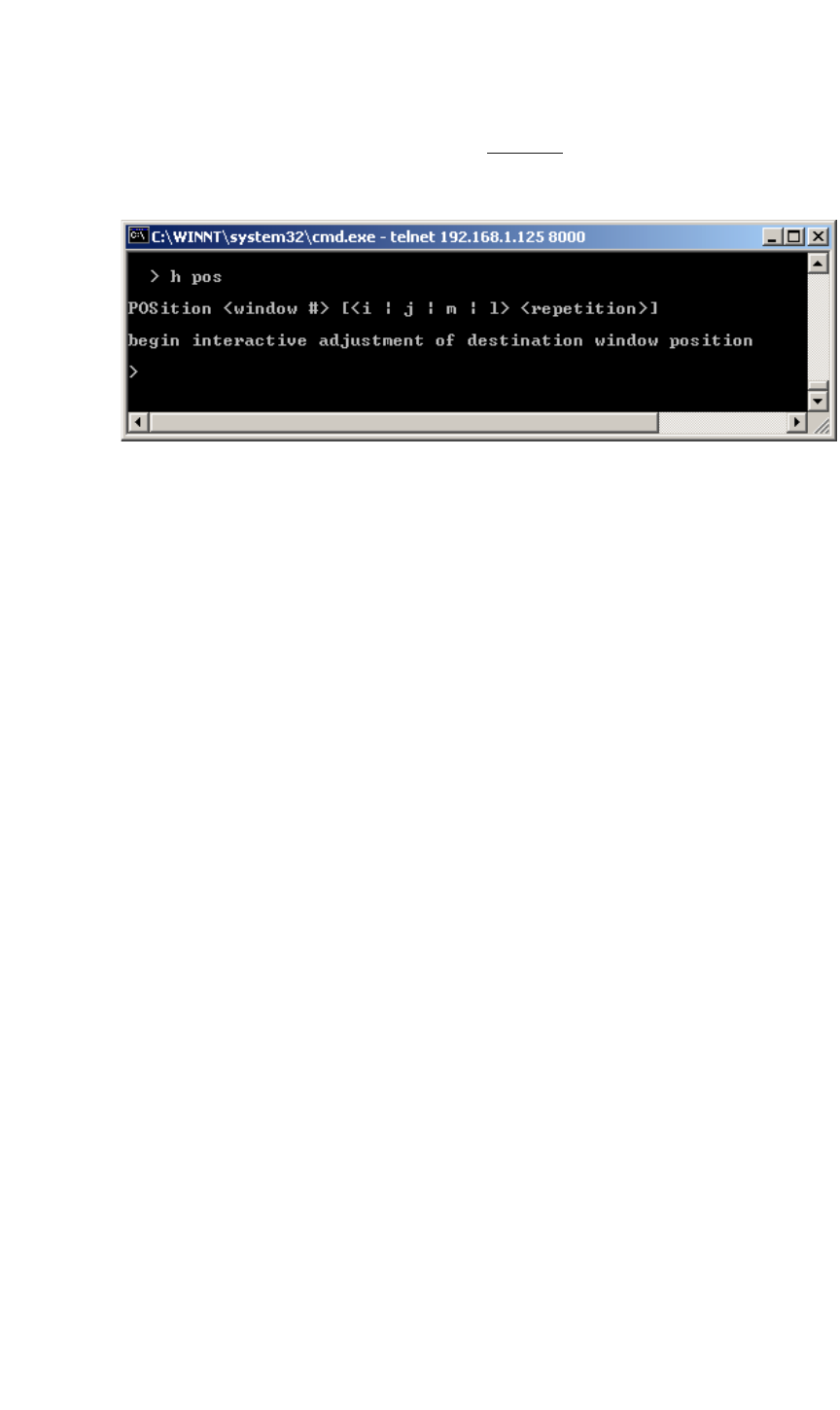

Figure 3-16.
Help Text — Position Command
5. Change the Position interactively as desired. Type:
POS <output #> Enter
Use the following controls to position the rectangle. Type:
~ i to move the rectangle up
~ m to move the rectangle down
~ j to move the rectangle left
~ l to move the rectangle right
Note that the rectangle jumps at the designated SETRATE increment.
6. When you are finished positioning, type q to exit the mode:
