INTRODUCTION
Feature Summary
350-7951 Quadra User’s Guide 6
. . . . .
• The RS-232 serial port connects to an ASCII terminal, any computer
with a serial port or an external device such as a touchpad. Commands
are sent from the terminal or computer to the Quadra.
• The Ethernet port (10/100BaseT) allows a Quadra system to be
connected to a local area network (LAN) or directly to a PC that is
properly equipped with a network card. Note that direct connection
requires the use of an Ethernet hub or Ethernet cross-over cable.

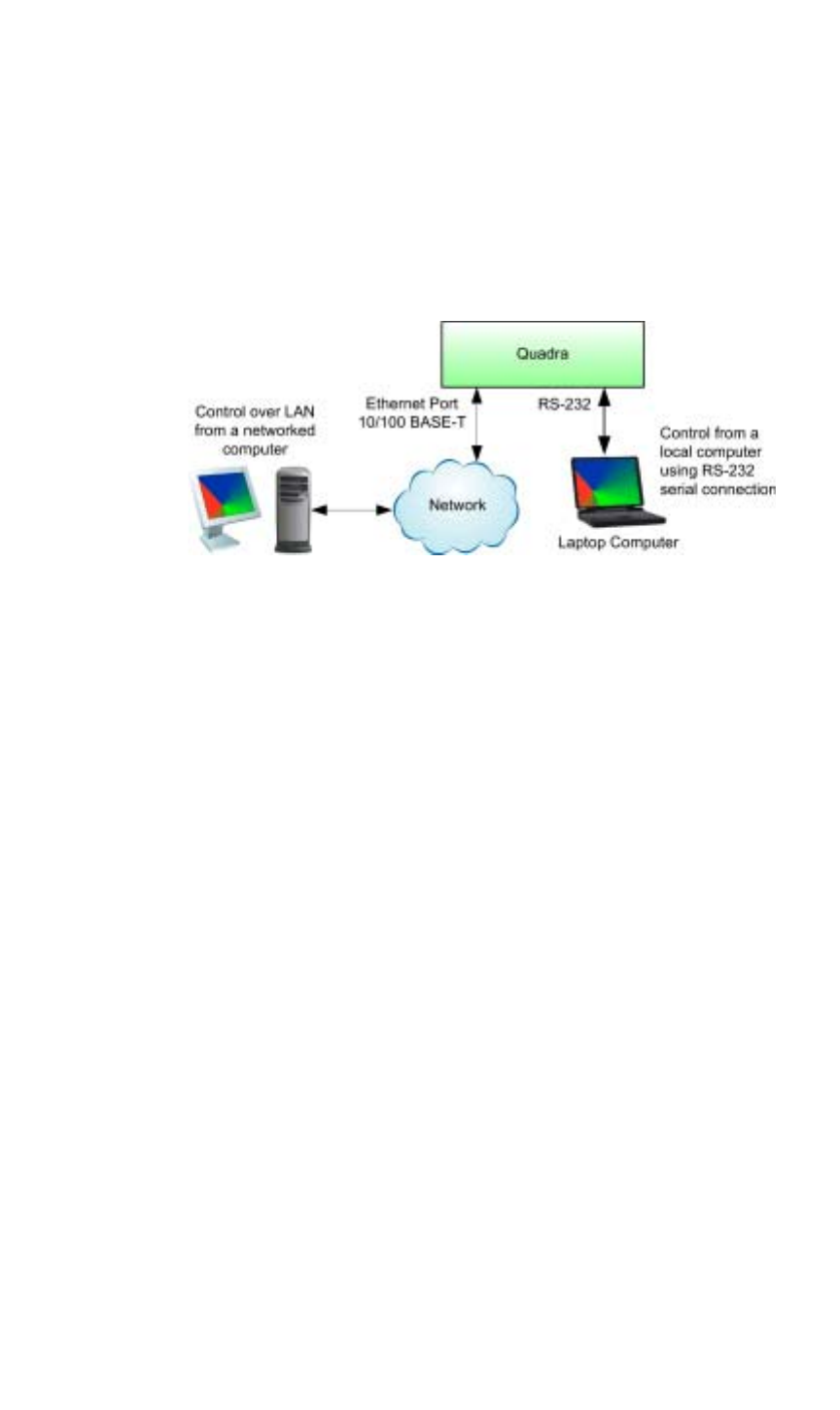

Figure 1-3. Quadra
control alternatives
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FEATURE SUMMARY
Following is a concise summary of Quadra features:
• System:
~ Converts four RGB/video inputs simultaneously, each to its
own output channel.
~ Each output channel can be set to a different resolution.
~ Full 24-bit color processing is used throughout.
~ System control is a command line interface, provided via
serial RS-232 or 10/100 BASE-T Ethernet.
~ Compact 1RU package.
• Inputs:
~ Supports a wide range of analog RGB inputs with resolutions
up to 1600 x 1200 @ 60 Hz frame rate.
~ Supports HDTV / YP
b
P
r
input with tri-level sync.
~ Optional DVI inputs up to 1600 x 1200 @ 60Hz.
~ Video inputs are selectable between S-Video and Composite
formats, in both NTSC and PAL video standards.
• Outputs:
~ Each channel’s output connector supports DVI and analog
signals.
