Input shaft assembly AD (→ GK)
Project Planning for Components on the Input Side
Motor mounting
platform AD.. /P
Belt drives are available with adjustable motor mounting platform for space-saving
installation. The motor mounting platform is arranged parallel to the drive shaft and is
without tapped holes (also available with tapped holes for IEC standard on request). The
distance from the input shaft can be adjusted using threaded columns.
53585AUS

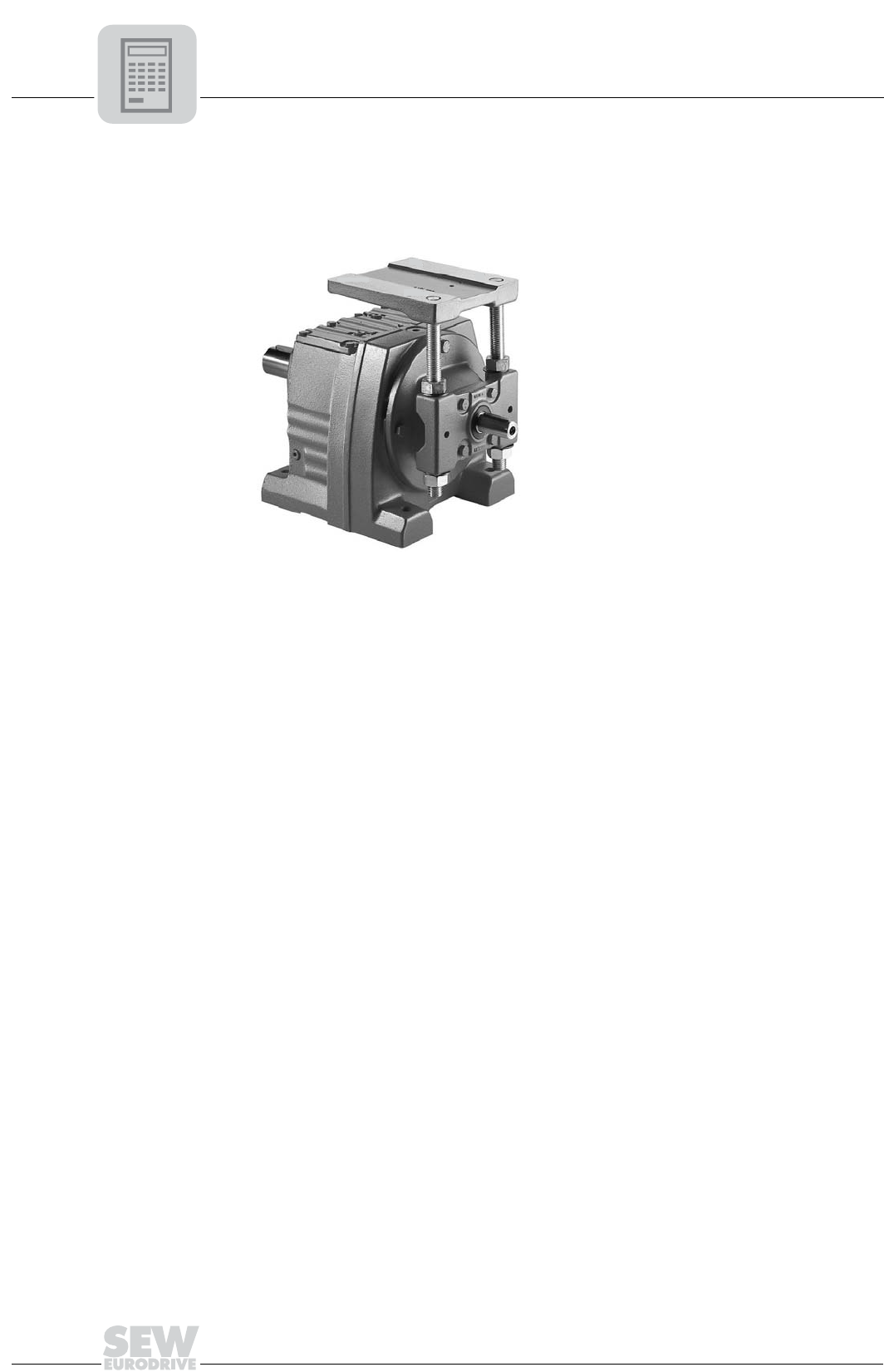

Figure 35: Helical gear unit with input shaft assembly and motor mounting platform
AD../P
