Project planning for helical-bevel gear units on swing base MK (→ GK)

Project Planning for Components on the Input Side

Structure

Select gear unit Please contact SEW-EURODRIVE.

Torque arm /T See dimension sheets "Helical-bevel gear unit on swing base MK" (for shaft-mounted

gear units only).

52255AXX

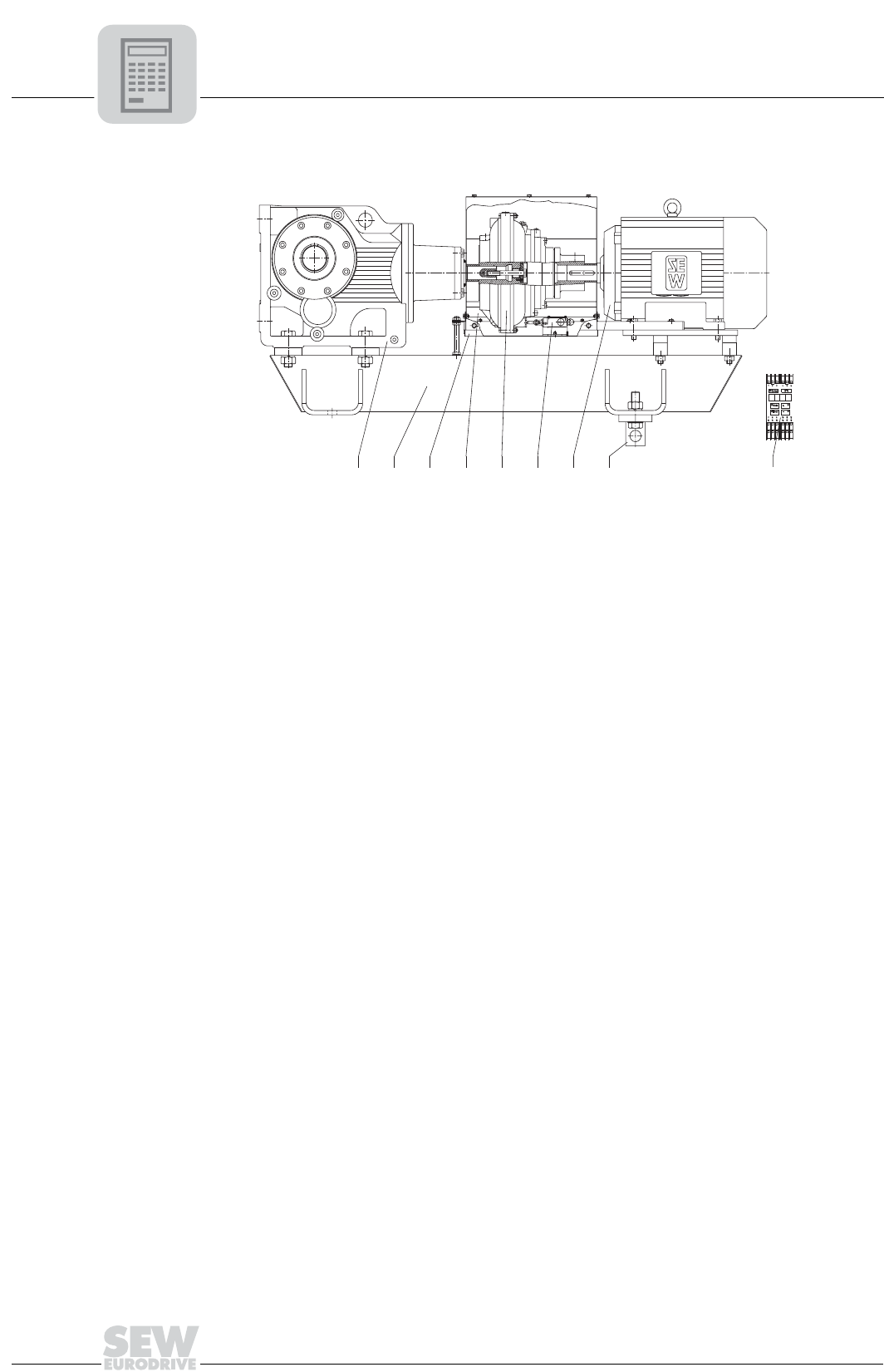

Figure 29: Helical-bevel gear unit on swing base MK

[1] Helical-bevel gear unit

[2] Mounting rail

[3] Oil pan

[4] Protective canopy

[5] Hydraulic centrifugal coupling

[6] Thermal monitoring device (optional design)

[7] Electric motor

[8] Torque arm (optional design)

[9] Speed monitor (optional design, only in conjunction with

thermal monitoring BTS)

[1]

[2]

[3]

[4]

[5]

[6] [7]

[8]

[9]
